➤ Used DMC DL 30 M For Sale | gindumac.com

Show in original language

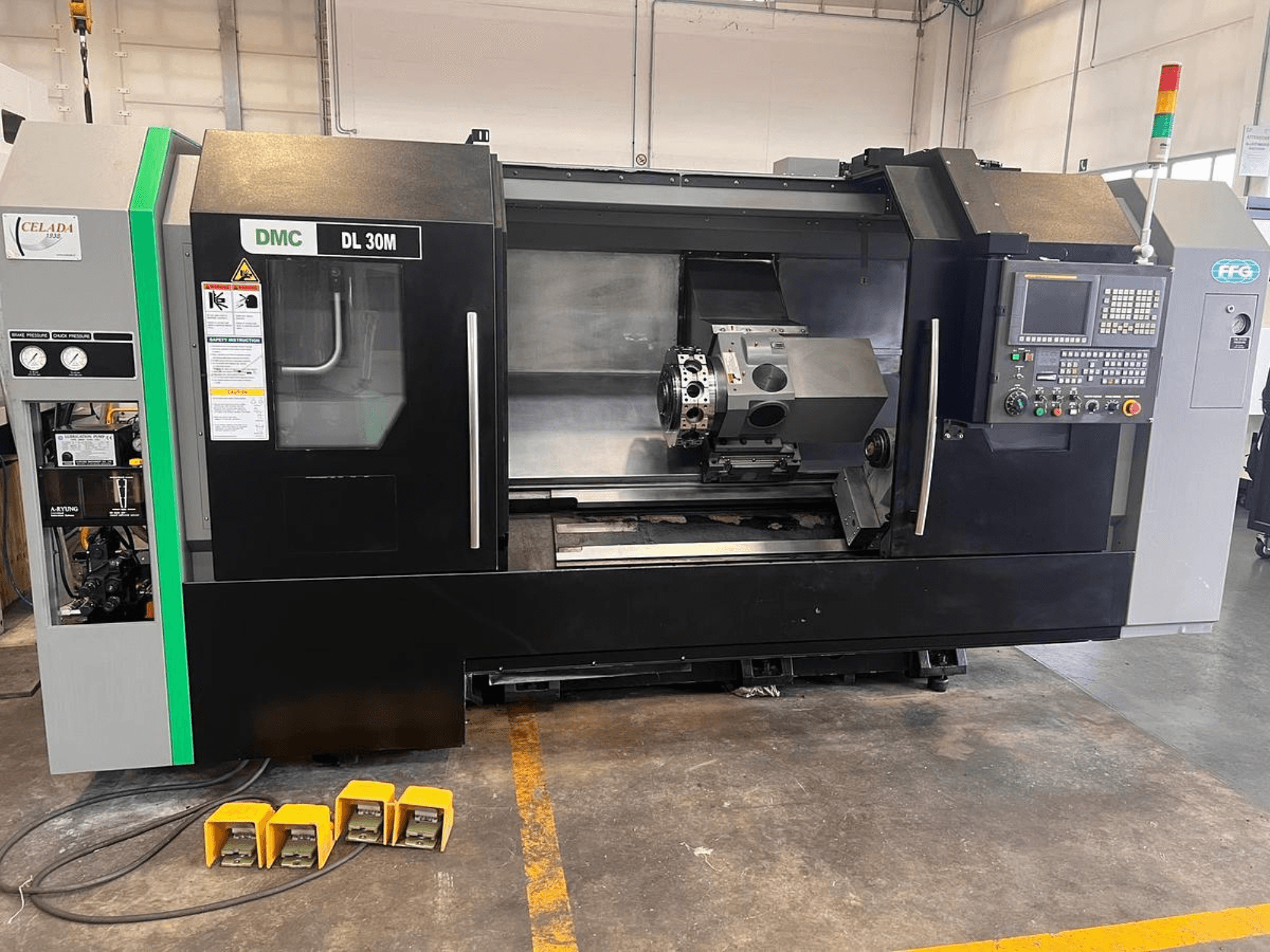

This DMC DL 30 M turn-mill centre was manufactured in 2005. It features a max turning diameter of 400 mm, a max swing diameter of 610 mm, and a max turning length of 1080 mm. The spindle supports speeds up to 3000 RPM with a power of 15/18.5 kW. It includes a 12-position motorized tool turret. Consider the opportunity to buy this DMC DL 30 M turn-mill centre. Contact us for more information.

Overview

brand: DMC
year: 2005
MODEL: DL 30 M
application type: Turning
Location: Italy
machine type: Turn-Mill Centre

Technical Information - DMC DL 30 M

Movement

Number of Axes: 3
X-axis Travel: 230 mm
Z-axis Travel: 1130 mm

Technical Specification

Spindle Power: 18.5 kW
Spindle Speed: 3000 RPM

Additional Information

Max turning diameter: 400 mm
Max diameter over guides: 480 mm
Max swing diameter: 610 mm
Max turning length: 1080 mm
Rapid feed X-axis: 20 m/min
Rapid feed Z-axis: 24 m/min
Spindle nose: A2 – ASA 8
Bar passage diameter: 89 mm
Tool turret: 12 positions, BTM 65 motorized

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
