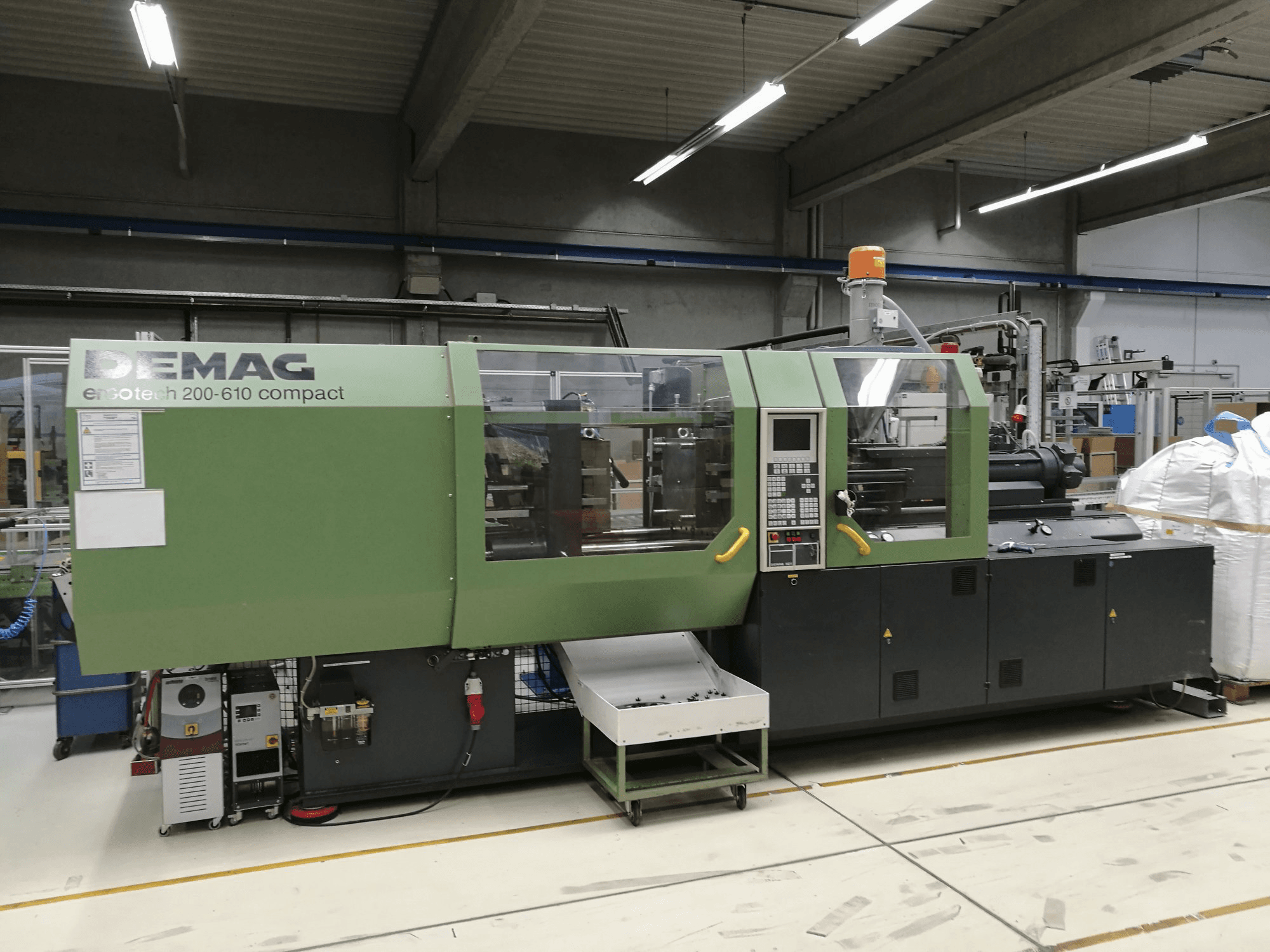

Left view of DEMAG Ergotech 200-610 NC machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

SUMITOMO SHI DEMAG Ergotech 200-610 NC

Photo Gallery

SUMITOMO SHI DEMAG - Ergotech 200-610 NCDE-INJ-DEM-1995-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
DEMAG ERGOtech 200-610 NC Injection Moulding Machine

Show in original language

This DEMAG ERGOtech 200-610 NC Injection Moulding Machine was manufactured in Germany in 1995 and has a record of 157544 production hours ever since. This solid machine stands in excellent conditions, as a regular inspection was performed on it. Offering low maintenance costs, in the past this equipment has handled mostly polypropylene.

Overview

brand: SUMITOMO SHI DEMAG
year: 1995
MODEL: Ergotech 200-610 NC
production hours: 157544
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - SUMITOMO SHI DEMAG Ergotech 200-610 NC

General Data

Measurements width: 5715 mm
Measurements depth: 1730 mm
Measurements height: 2000 mm
Machine weight: 9400 kg
Automatic cycles: 11022769
Type of drive: Hydraulic
Closure: Mechanic

Control Unit

Model: NC4

Injection Unit

Screw diameter: 40 mm
Shot weight: 230 g/PS
Stroke volume: 255 cm³
Injection pressure: 2418 bar
Heating capacity: 42927 kW
Nozzle pressure: 80 kN

Clamping unit

Clamping force: 200 kN
Opening stroke: 575 mm
Max open daylight: 660 mm
Distance between bars: 560 mm
Size of mold platens: 830 x 830 mm

Media

Main electronic connection: 400 V / 50 Hz / 3 P
Power consumption: 49 kVA
Oil tank: 650 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
