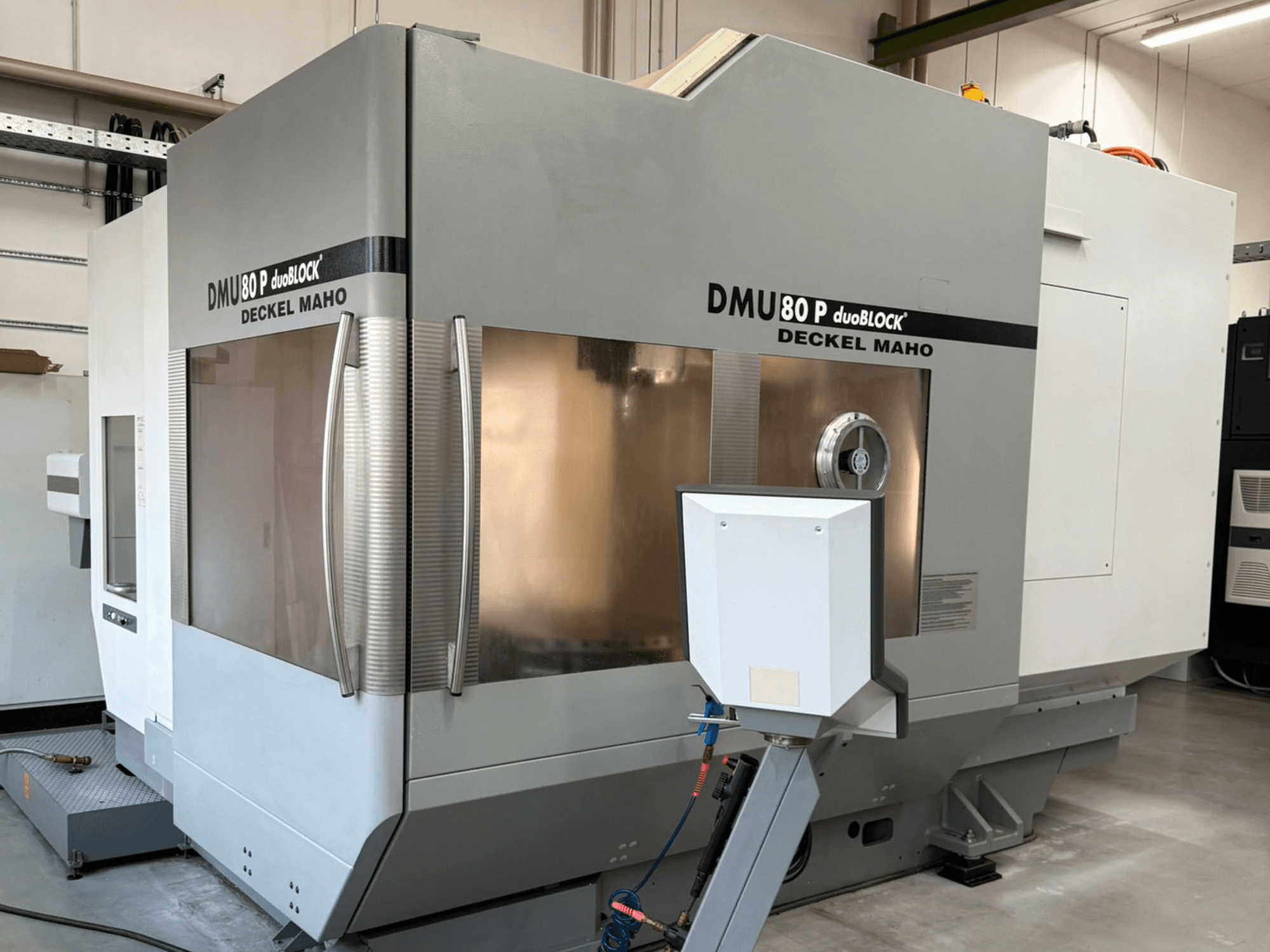

DECKEL MAHO - DMU 80 P duoBLOCKDE-MIL-DEC-2008-00008

• Tool magazine: 60 positions

• CNC control: Heidenhain iTNC 530

• Internal coolant supply: 40 bar

• Rotating viewing window

• Operating hours: 16,657 h

• Spindle hours: 7,793 h

Weights

• Base weight: approx. 600 kg

• Crate weight: approx. 1,800–2,000 kg

• Machine without tool magazine, with base: approx. 12,600 kg

• Machine with chain magazine (40 tools) and base: approx. 13,600 kg

• Chain magazine SK40/HSK63:

  • 60 tool positions with base: approx. 1,700 kg

  • 120 tool positions with base: approx. 2,100 kg

  • 180 tool positions with base: approx. 3,600 kg

• Chain magazine SK50/HSK100:

  • 60 tool positions with base: approx. 1,850 kg

  • 120 tool positions with base: approx. 2,300 kg

Dimensions

• Machine without tool magazine: 4.25 × 2.75 × 3.00 m

• Machine with chain magazine (40 tools): 5.83 × 3.70 × 3.46 m

• Chain magazine (footprints):

  • 60 tool positions: 3.84 × 1.50 × 3.10 m

  • 120 SK 40 tool positions: 3.85 × 2.25 × 3.10 m

  • 120 HSK-A63 tool positions: 4.44 × 1.90 × 3.10 m

  • 120 SK 50 tool positions: 4.44 × 1.90 × 3.10 m

  • 120 HSK-A100 tool positions: 4.51 × 2.25 × 3.10 m

  • 180 tool positions: 3.84 × 1.50 × 3.10 m

Additional equipment

• Chip conveyor

  • With pallet: approx. 600 kg

  • Dimensions: 4.00 × 1.10 × 1.70 m

• Paper belt filter / Belt filter system

  • With pallet: approx. 850 kg

  • Dimensions: 2.36 × 1.42 × 1.72 m

• Oil and emulsion mist separator

• Heidenhain TS 649 touch probe

• Cleaning gun

• Transport suspension in crate

  • Approx. 100 kg

  • Dimensions: 0.80 × 0.80 × 0.58 m
