DECKEL MAHO DMU 50 M

Photo Gallery

DECKEL MAHO - DMU 50 MDE-MIL-DEC-2003-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DECKEL MAHO DMU 50 M For Sale | gindumac.com

Show in original language

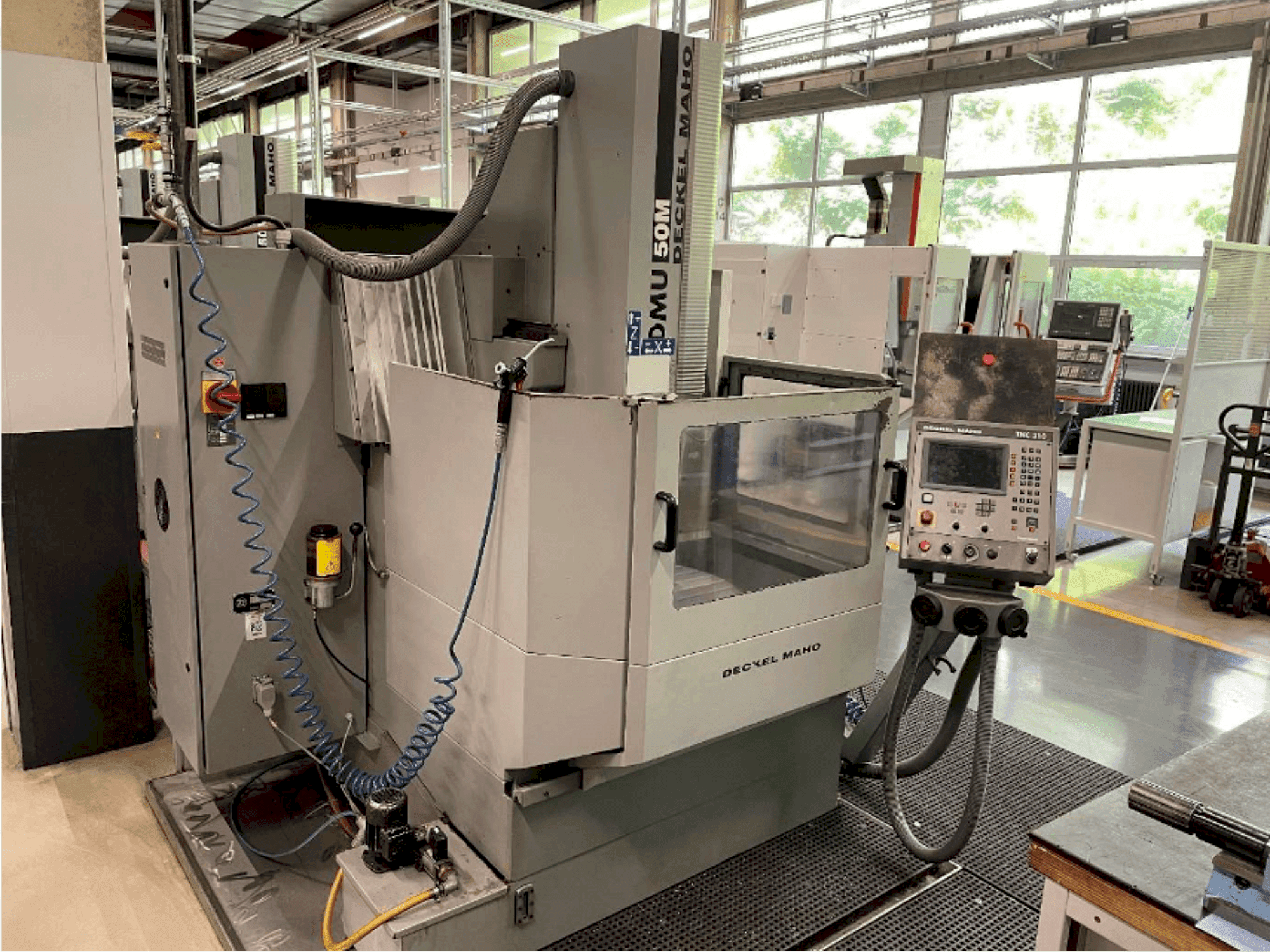

This 3-axis DECKEL MAHO DMU 50 M vertical machining center was manufactured in 2003. It features a Heidenhain TNC 310 control, electronic handwheel HR 150, and a main drive speed of 4,500 min-1. The machine offers a rapid traverse of 5 m/min and a maximum load capacity of 200 kg. If you are looking to get high-quality milling capabilities, consider the DECKEL MAHO DMU 50 M machine we have for sale. Contact us for further details regarding this machine.

Overview

brand: DECKEL MAHO
year: 2003
MODEL: DMU 50 M
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMU 50 M

Control Unit

Brand: HEIDENHAIN
Model: TNC 310

General Data

Measurements height: 2140 mm
Measurements width: 1520 mm
Measurements depth: 2000 mm
Machine weight: 2800 kg

Main drive

Spindle speed range: 4500 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 500 mm
X-AXIS Rapid traverse: 5 m/min
Y-AXIS Movement: 400 mm
Y-AXIS Rapid traverse: 5 m/min
Z-AXIS Movement: 400 mm
Z-AXIS Rapid traverse: 5 m/min

Table

Outer length: 700 mm
Outer width: 500 mm
TSlots size: 63 mm
Distance between: 14 H7
Table load: 200 kg

Additional Information

Machine Benefits

Qualitative Machine Benefits

Features a rotary table with a generous clamping surface area to support various workpiece sizes.

Technical Machine Benefits

Feed drive: xyz infinitely variable up to 5000 mm/min
Travel measuring system: xyz 0. 001 mm
Positioning tolerance: 0. 010 mm
Centering hole diameter: 30 mm h6
Swivel range: +95 / -10°

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
