DECKEL MAHO - DMU 40 eVoDE-MIL-DEC-2015-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DECKEL MAHO DMU 40 eVo For Sale | gindumac.com

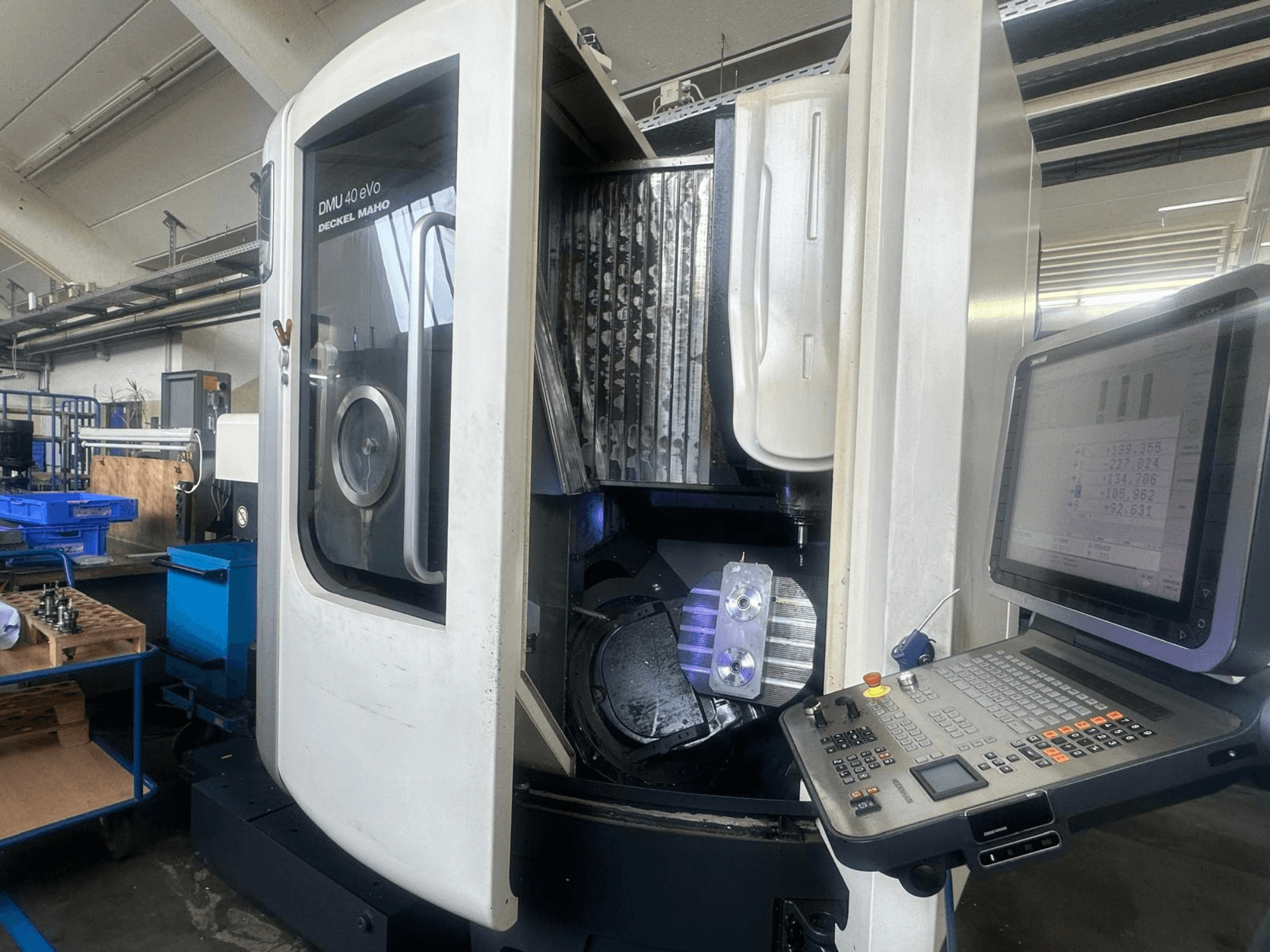

This 5-axis DECKEL MAHO DMU 40 eVo was manufactured in 2015, featuring a table size of 450 mm × 400 mm and a maximum workpiece weight of 250 kg. It includes a high-speed spindle capable of 18,000 rpm, a 60-position tool changer, and full B-axis and C-axis rotation. Additional features include an internal coolant supply at 40 bar, a chip conveyor, and an infrared probe. Consider the opportunity to buy this DECKEL MAHO DMU 40 eVo vertical machining centre. Contact us for more information.
Overview
- brand: DECKEL MAHO
- year: 2015
- MODEL: DMU 40 eVo
- production hours: 8989
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DECKEL MAHO DMU 40 eVo
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530 HSCI
Movement
- B-axis Max: 110°
- B-axis Min: -5°
- C-axis: 360°
- Number of Axes: 5
Technical Specification
- Max. Tool Weight: 250 kg
- Number of Tools: 60
- Spindle Speed: 18000 RPM
Additional Information
Table size: 450 × 400 mm
Max workpiece weight: 250 kg
Spindle speed: infinitely variable up to 18,000 rpm
Spindle interface: SK40
Tool changer: 60 positions
B-axis: -5° to +110°
C-axis: 360°
Internal coolant supply: 40 bar
Spindle hours: 8,989 h
Additional equipment
Chip conveyor
Infrared probe
Tool breakage detection laser
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
