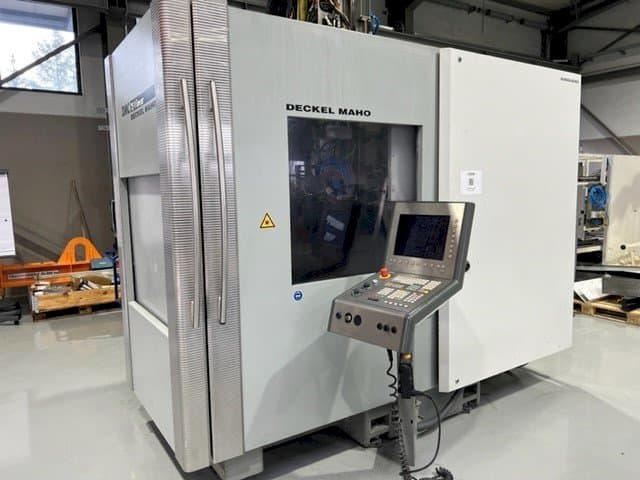

Front view of DECKEL MAHO DMC 75 V linear machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DECKEL MAHO DMC 75 V linear

Photo Gallery

DECKEL MAHO - DMC 75 V linearDE-MIL-DEC-2006-00003

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DECKEL MAHO DMC 75 V linear machine center

Show in original language

This DECKEL MAHO DMC 75 V linear machine center was made in the year 2006 in Germany and has 55043 hours, of which 23747 are spindle hours. It is controlled by a Siemens 840D Powerline control unit and has 5 axis simultaneously. The machine has a spindle speed of 28000 rpm and the machine is completely serviced and in very good condition.

Overview

brand: DECKEL MAHO
year: 2006
MODEL: DMC 75 V linear
production hours: 55043
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - DECKEL MAHO DMC 75 V linear

General Data

Measurements width: 4500 mm
Measurements depth: 3300 mm
Measurements height: 3180 mm
Machine weight: 10000 kg

Control Unit

Model: 840D Powerline
Brand: SIEMENS

Main drive

Spindle speed range: 28000 1/MIN
Number of axis: 5 axis simultaneous

Movement

X-AXIS Movement: 750 mm
X-AXIS Rapid traverse: 90 m/min
Y-AXIS Movement: 600 mm
Y-AXIS Rapid traverse: 90 m/min
Z-AXIS Movement: 560 mm
Z-AXIS Rapid traverse: 90 m/min
B-AXIS Movement: controlled B-axis: -10° to +110° controlled MM
C-AXIS Movement: 360 ° MM

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Motor spindle 28. 000 rpm / hsk 63 (overhauled) - automatic tool changer
- - Handwheel
- - Operating mode 4
- - Heidenhain measuring probe
- - Belt filter system with ikz
- - Chip conveyor
- - Number of magazine places: 30
- - Nc rotary table clamping surface d 750 mm
- - Full cab
- - Nc swivel head
Qualitative Machine Benefits:
- - Machine completely serviced and in very good condition
- - Kessler motor spindle overhauled by manufacturer
- - Coolant device
- - Documentation
- - Rotoclear
- - Rinsing gun

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
