DECKEL MAHO DMC 64V Linear Vertical Machine Center

Show in original language

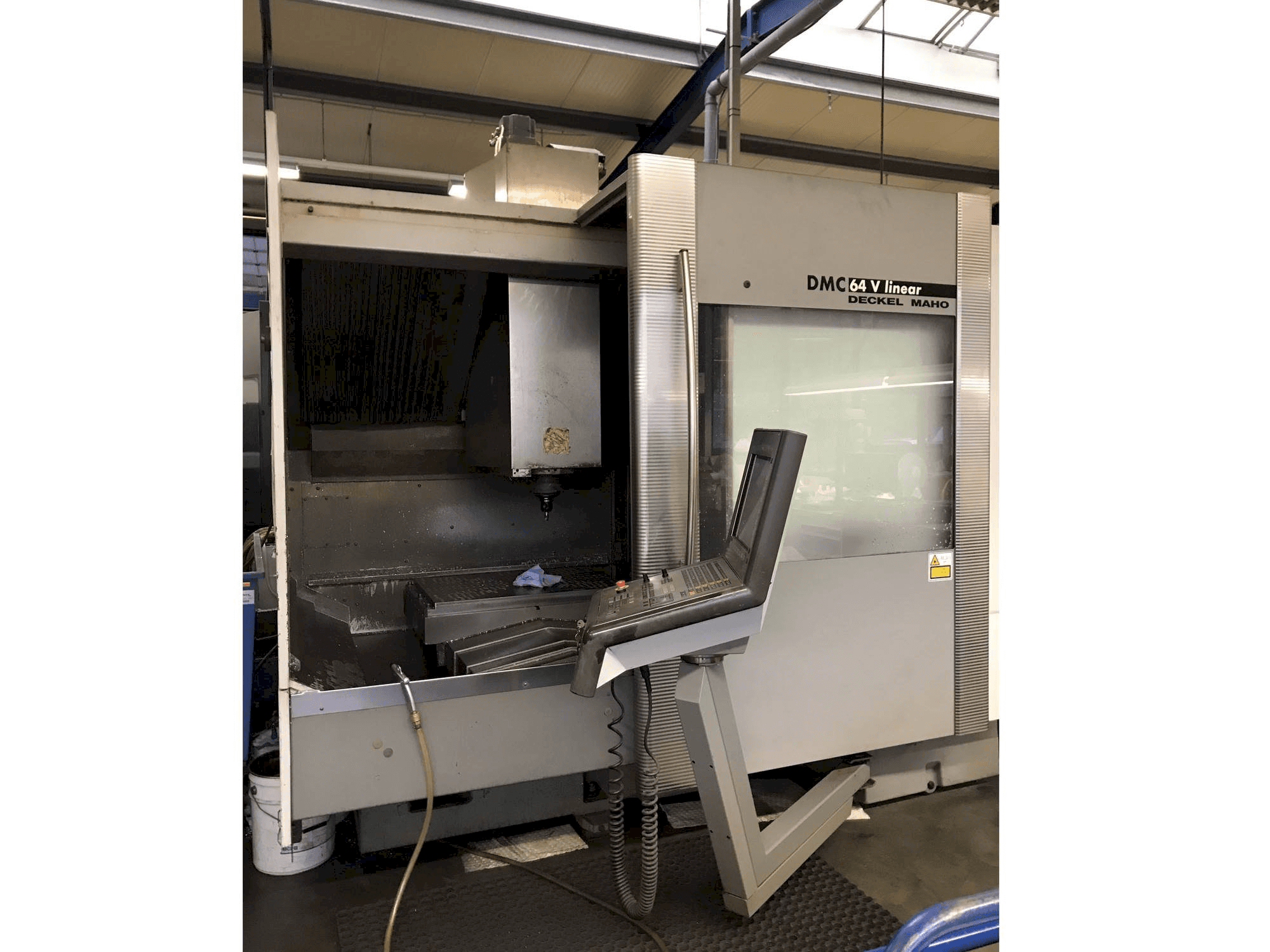

This DECKEL MAHO DMC 64V Linear Vertical Machine Center was built in 2002. It is equipped with a HEIDENHAIN iTNC 530 control unit and has 3 axis. The machine has a spindle speed of 12000 rpm.

Overview

brand: DECKEL MAHO
year: 2002
MODEL: DMC 64V Linear
production hours: 6335
application type: Milling
Location: Germany
machine type: Machining centers (vertical)
availability: Sold
control unit brand: HEIDENHAIN
GINDUMAC ID: DE-MIL-DEC-2002-00004

Technical Information

General Data

Measurements width: 3450 mm
Measurements depth: 2350 mm
Measurements height: 2900 mm
Machine weight: 6500 kg

Control Unit

Brand: HEIDENHAIN
Model: iTNC 530

Main drive

Spindle speed range: 12000 1/MIN

Movement

X-AXIS Movement: 640 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 500 mm

Table

Outer length: 850 mm
Outer width: 630 mm
Table load: 600 kg

Tools

Type of tool holder: SK 40

Media

Main electronic connection: 400 V
Power consumption: 42 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Feed stepless 40. 000 mm/min
- - Rapid traverse 60 m/min
- - Drive power - spindle motor 18. 0 kw
- - Tool changing device 30 pos
- - Handwheel
- - Chip conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
