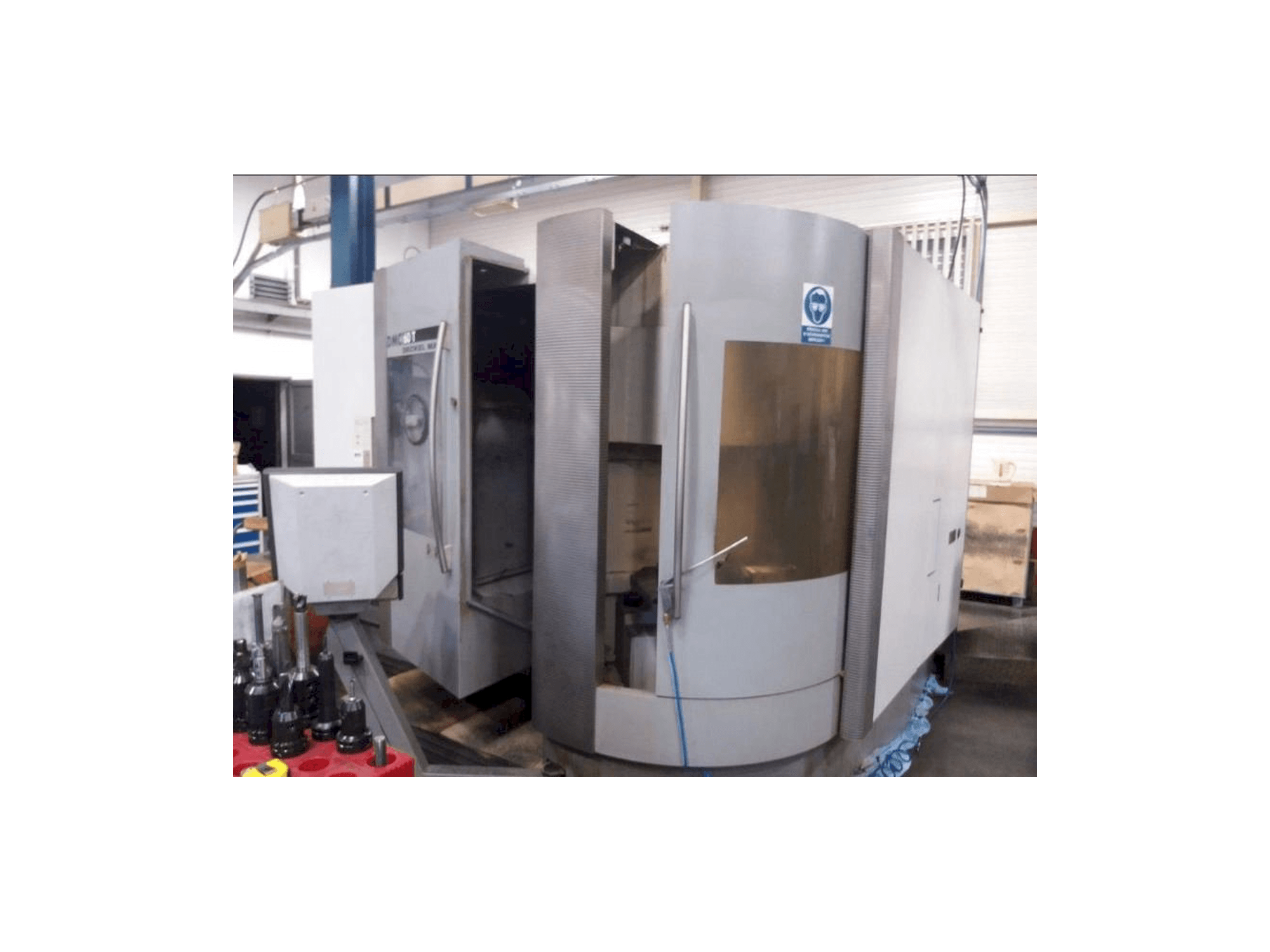

Front view of DECKEL MAHO DMC 60T machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DECKEL MAHO DMC 60T

Photo Gallery

DECKEL MAHO - DMC 60TCZ-MIL-DEC-2003-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DECKEL MAHO DMC 60T

Show in original language

This DECKEL MAHO DMC 60T Horizontal Machining Center was made in Germany in the year 2003. It has a total production record of 49138 hours. This 5 axis machine is operated through a HEIDENHAIN iTNC530 control unit. It works with a spindle speed up to 12000 rpm and a compressed air pressure 6 bar. This machine replaced its spindle in 2020 and is in very good condition.

Overview

brand: DECKEL MAHO
year: 2003
MODEL: DMC 60T
production hours: 49138
application type: Milling
Location: Czech Republic
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMC 60T

General Data

Measurements width: 3400 mm
Measurements depth: 3300 mm
Measurements height: 2600 mm
Machine weight: 9610 kg

Control Unit

Model: iTNC530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 780 mm
X-AXIS Working Feed: 15000 mm/min
X-AXIS Rapid traverse: 50 m/min
Y-AXIS Movement: 560 mm
Y-AXIS Working Feed: 15000 mm/min
Y-AXIS Rapid traverse: 50 m/min
Z-AXIS Movement: 560 mm
Z-AXIS Working Feed: 15000 mm/min
Z-AXIS Rapid traverse: 50 m/min

Table

Outer length: 500 mm
Outer width: 630 mm

Tools

Slots in storage: 60
Type of tool holder: sk 40

Media

Power consumption: 64 kva
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - B axis (head) -120 degrees/+30 degrees
- - Compressed air pressure 6 bar
- - Lan connection
Qualitative Machine Benefits:
- - Very good working condition
- - 2020 - new spindle installed

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
