DECKEL MAHO - DMC 60 H Hy DinHU-MIL-DEC-2001-00003

Name: DECKEL MAHO DMC 60 H Hy Din
Brand: DECKEL MAHO
SKU: HU-MIL-DEC-2001-00003
Price: 1158772 INR
Availability: InStock

Rs. 1,158,772

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DECKEL MAHO DMC 60 H Hy Din For sale | gindumac.com

Show in original language

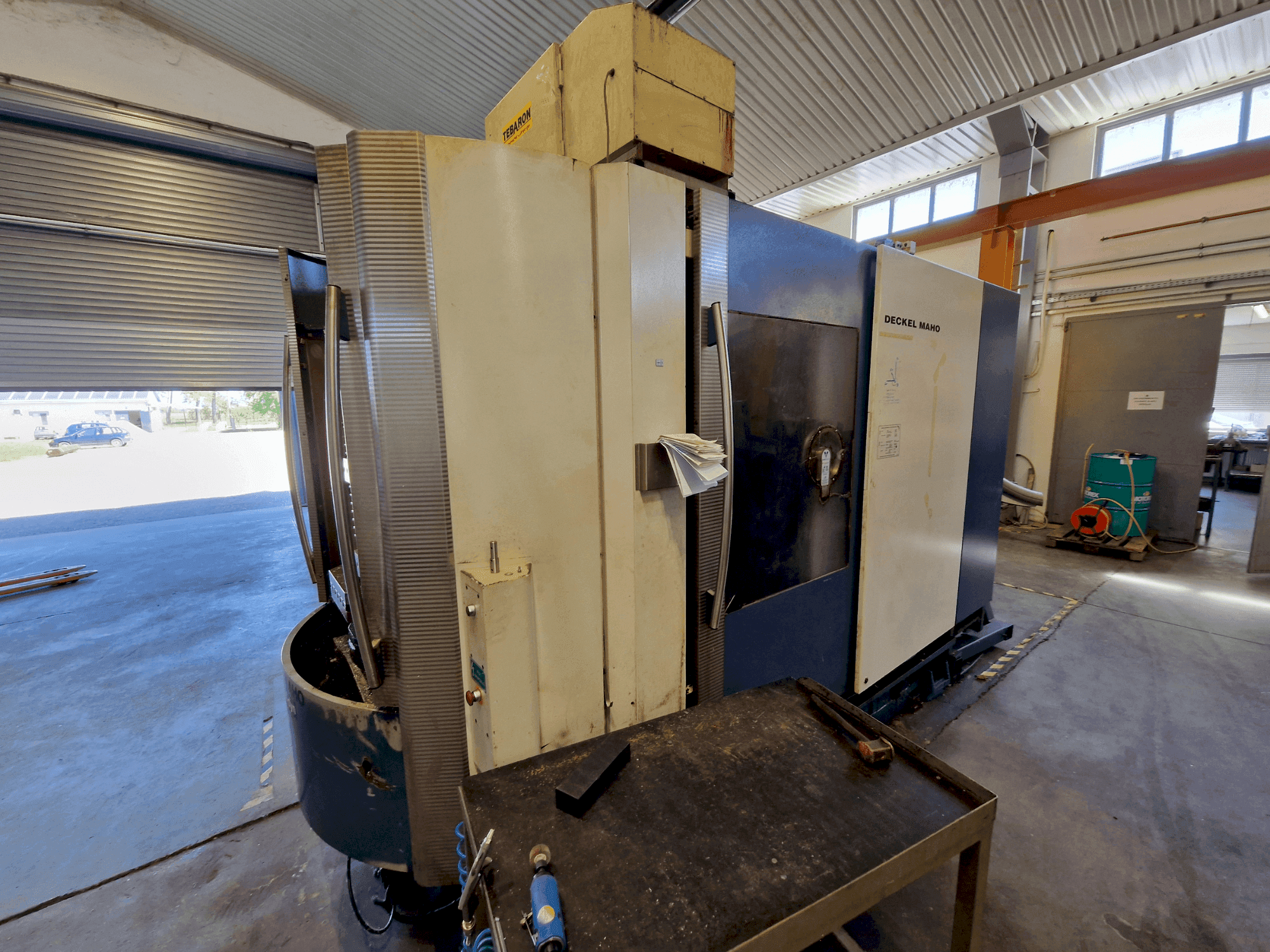

This 4-axis DECKEL MAHO DMC 60 H Hy Din horizontal machining center was manufactured in 2001. It features a robust direct drive motor with speeds up to 15,000 rpm and a torque of up to 191 Nm. The machine includes a versatile tool magazine with capacities ranging from 40 to 180 tools and a maximum tool weight of 12 kg. Ideal for complex machining tasks, the DECKEL MAHO DMC 60 H Hy Din machine we have for sale. Contact us for further details.

Overview

brand: DECKEL MAHO
year: 2001
MODEL: DMC 60 H Hy Din
production hours: 28815
application type: Milling
Location: Hungary
machine type: Horizontal Machining Centre

Technical Information - DECKEL MAHO DMC 60 H Hy Din

Dimensions

Table Length: 400 mm
Table Load: 350 kg
Table Width: 500 mm

Movement

X-axis Travel: 600 mm
Y-axis Travel: 560 mm
Z-axis Travel: 560 mm

Technical Specification

Spindle Power: 13 kW
Spindle Speed: 15000 RPM

Additional Information

Additional equipment

Multiple tool magazine options
Advanced tool handling and balancing features
High-precision measurement system
Efficient internal coolant supply (optional)

Machine Benefits

Qualitative Machine Benefits

Tool balancing: meets din iso 1940 standards for reduced vibration and increased precision.
Coolant system: optional internal coolant setup enhances tool performance and longevity.
Accurate measurement: high-resolution systems ensure precise machining results.

Technical Machine Benefits

Torque: 124 nm (s1), 191 nm (s6)
Speed max. : 25. 7 rpm
Pallet clamping force: 80,000 n
Tilting moment max. : 8000 nm
Tangential moment (clamped max. ): 6000 nm
Tangential moment (released max. ): 2600 nm
Number of pallets: 2
Guide slot (number x width): 1 x 14h7 mm
Precision movement: infinitely programmable feed speeds ensure precise control.
Tool handling versatility: various tool magazine configurations cater to extensive tooling needs.

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
