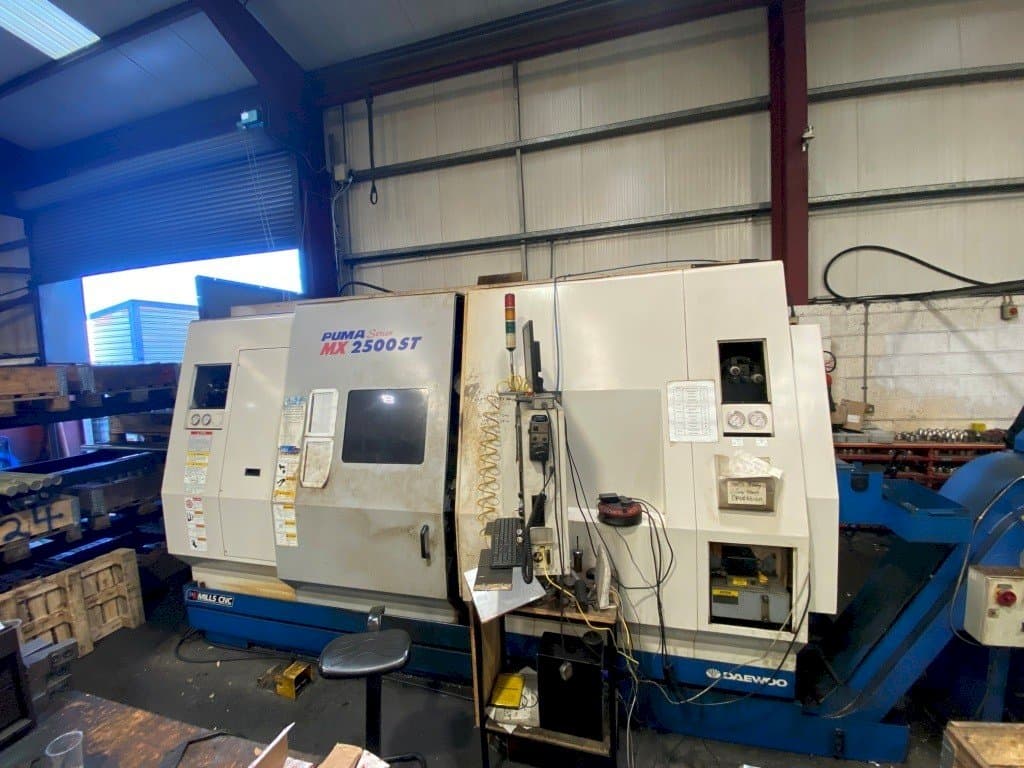

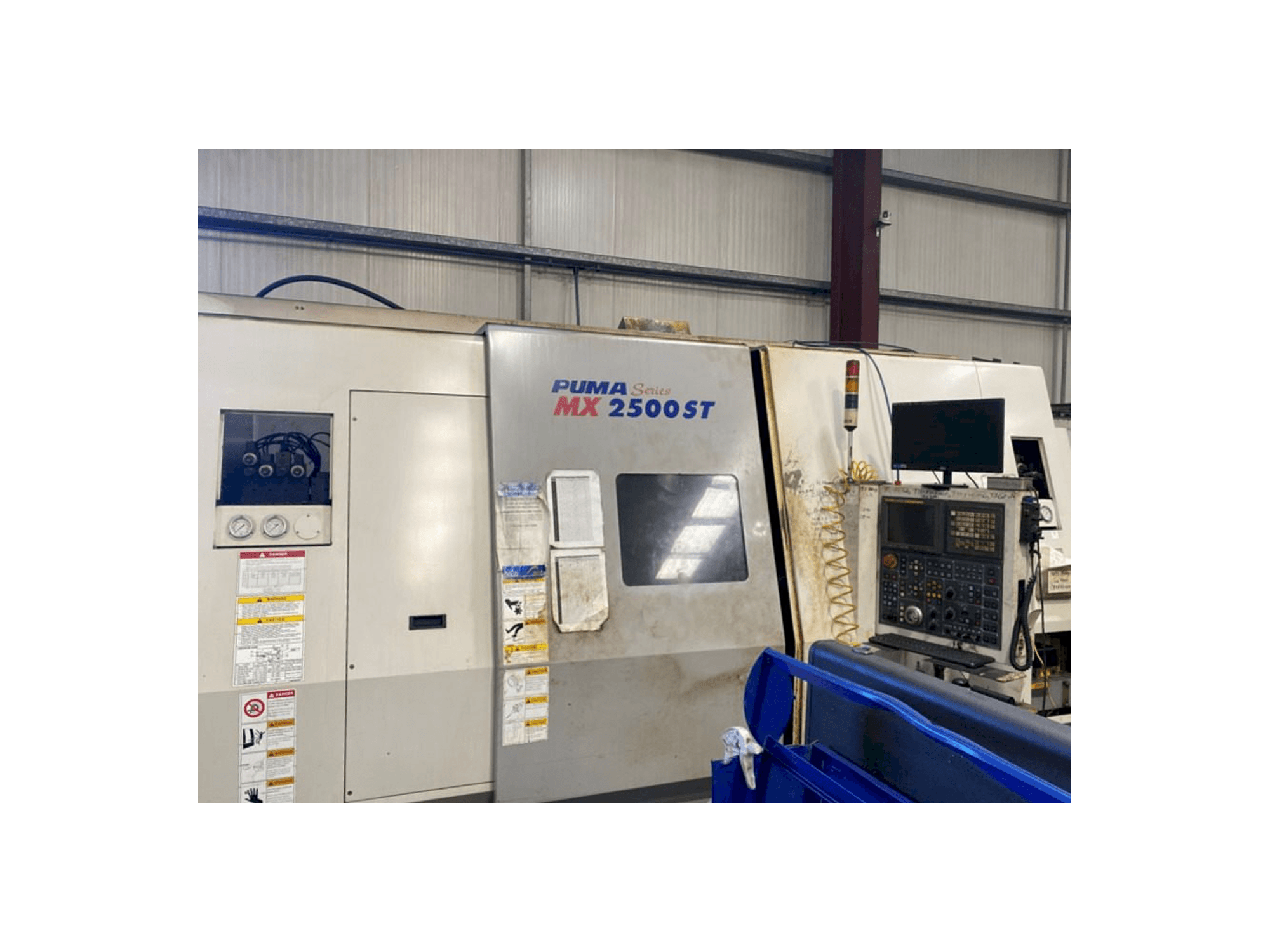

Front view of DAEWOO PUMA MX2500ST machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DAEWOO PUMA MX2500ST

Photo Gallery

DAEWOO - PUMA MX2500STIE-TUR-DAE-2004-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DAEWOO PUMA MX2500ST Turning

Show in original language

This DAEWOO PUMA MX2500ST Lathes machine was manufactured in 2004 in Korea. The machine operates through a Fanuc Series 18i-TB control unit. It works with a spindle speed up to 3500 rpm. This machine has 9 Controoled Axes (X,X1,Z,Z2,Y,A,C1,C2,B).

Overview

brand: DAEWOO
year: 2004
MODEL: PUMA MX2500ST
application type: Turning
Location: Ireland
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - DAEWOO PUMA MX2500ST

General Data

Measurements width: 4520 mm
Measurements depth: 2495 mm
Measurements height: 2600 mm
Machine weight: 12500 kg

Control Unit

Model: Series 18i-TB
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 3
Spindle speed range: 3500 1/MIN

Movement

X-AXIS Movement: 555 mm
Y-AXIS Movement: 160 mm
Z-AXIS Movement: 1095 mm
A-AXIS Movement: 1065 mm
B-AXIS Movement: 240 deg
C-AXIS Movement: 360 deg

Workpiece

Workpiece drm over bed: 550 mm
Workpiece z: 1020 kg MM

Turret

Number of turrets: 1

Tools

Slots in storage: 40
Max weight: 8 kg
Max tool length: 300 mm
Type of tool holder: Capto C6

Media

Main electronic connection: 400 V
Power consumption: 93,92 kVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits

9 controoled axes (x,x1,z,z2,y,a,c1,c2,b)
Multi tasking turning/milling center
Format: spindle 1, spindle 2, milling spindle, lower turret
Atc for milling spindle: 40 station
Turret: 12 station driven tool turret

Machine History

Material type

Mild steel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
