CMZ TL25 BM

Photo Gallery

CMZ - TL25 BMES-TUR-CMZ-2008-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used CMZ TL25 BM For Sale | gindumac.com

Show in original language

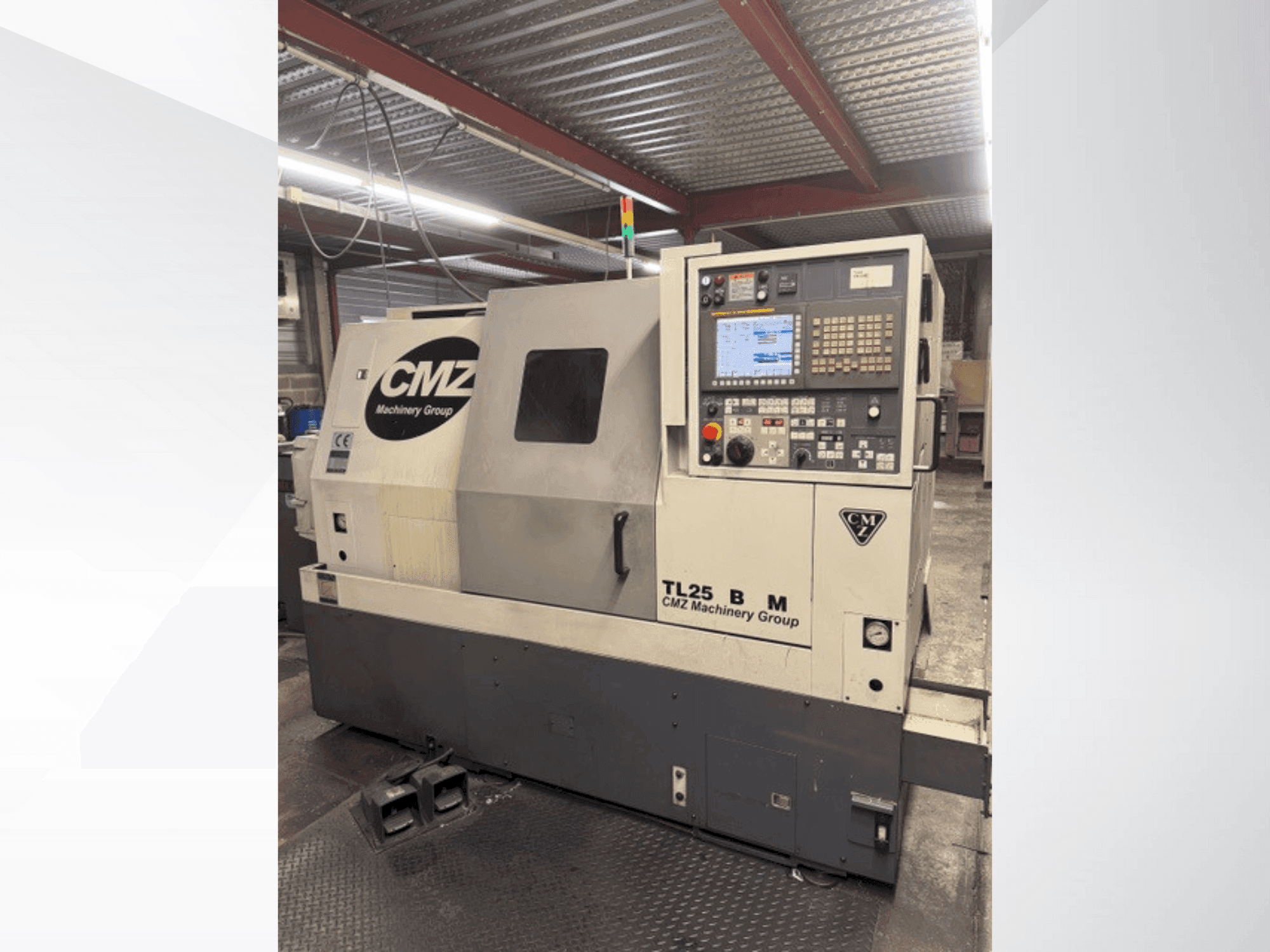

This 3-axis CMZ TL25 BM turn-mill centre was manufactured in 2008. It offers robust turn-milling capabilities, ideal for precision machining. Consider the opportunity to buy this CMZ TL25 BM turn-mill centre. Contact us for more information.

Overview

brand: CMZ
year: 2008
MODEL: TL25 BM
production hours: 6700
application type: Turning
Location: France
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - CMZ TL25 BM

Control Unit

Control Brand: FANUC
Control Model: 32i

Movement

X-axis Travel: 240 mm
Z-axis Travel: 640 mm

Technical Specification

Spindle Power: 18 kW
Spindle Speed: 3500 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Hydraulic chuck: Ø 250 mm smw autoblok
Collet chuck and collet sets
Machine has produced only plastic
Documentation included

Technical Machine Benefits

Diameter admitted on bench: 685 mm
Diameter on carriage: 510 mm
Max. Machinable diameter: 400 mm
Distance between centers: 675 mm
Bar passage: Ø 77 mm
Turret: 12 positions
12 motorized stations
Motorized tool rotation speed: 4000 rpm
Power of motorized tools: 3. 8/5 kw
Number of motorized tool holders: 3

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
