➤ Used CMZ TA 30 TY 1100 - Lathe For sale | gindumac.com

Show in original language

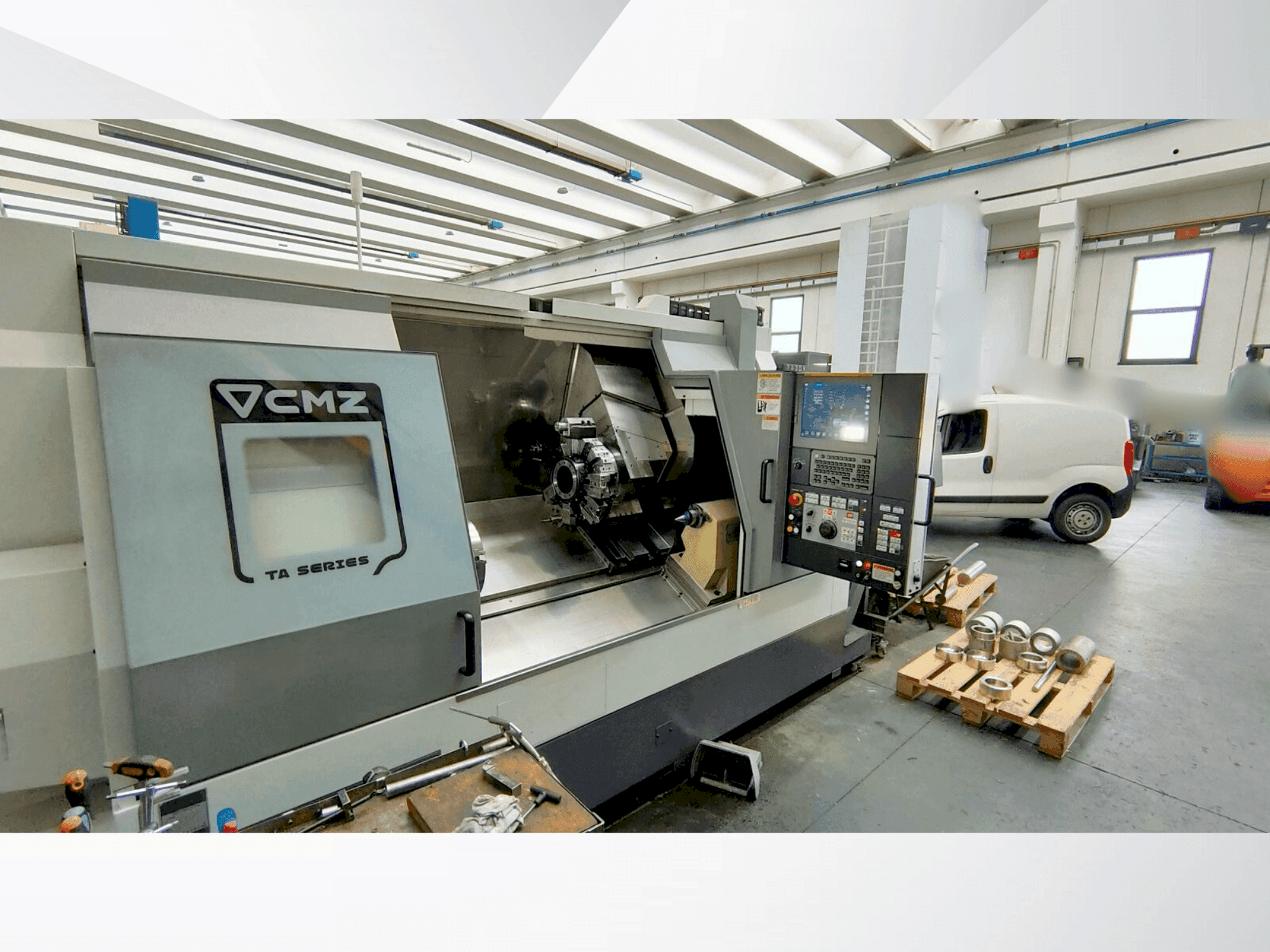

This 3-axis CMZ TA 30 TY 1100 lathe was manufactured in 2021. It features a FANUC CNC system, an Autoblock chuck with a 300 mm diameter, and a bar passage of 80 mm. The machine offers a maximum turning length of 1100 mm and includes a 12-place tool turret, both axial and radial motorized units, and a Y-axis for milling. With only 765 hours worked, this CMZ TA 30 TY 1100 represents a significant opportunity. Contact us for more information.

Overview

brand: CMZ
year: 2021
MODEL: TA 30 TY 1100
production hours: 765
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - CMZ TA 30 TY 1100

Control Unit

Brand: FANUC

Main drive

Spindle speed range: 3000 - 12,000 1/MIN

Additional Information

Additional equipment

Motorized turrets
Boring bar holders
Various tool holders

Machine Benefits

Technical Machine Benefits

Autoblock chuck diameter: 300 mm
Bar passage diameter: 80 mm
Maximum turning length: 1100 mm
Tailstock
Spindle with controlled fourth axis
Y axis for milling
12-place tool turret
Complete with axial and radial motors.

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
