CIDAN Futura 25

Photo Gallery

CIDAN - Futura 25PL-BEN-CID-2016-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery

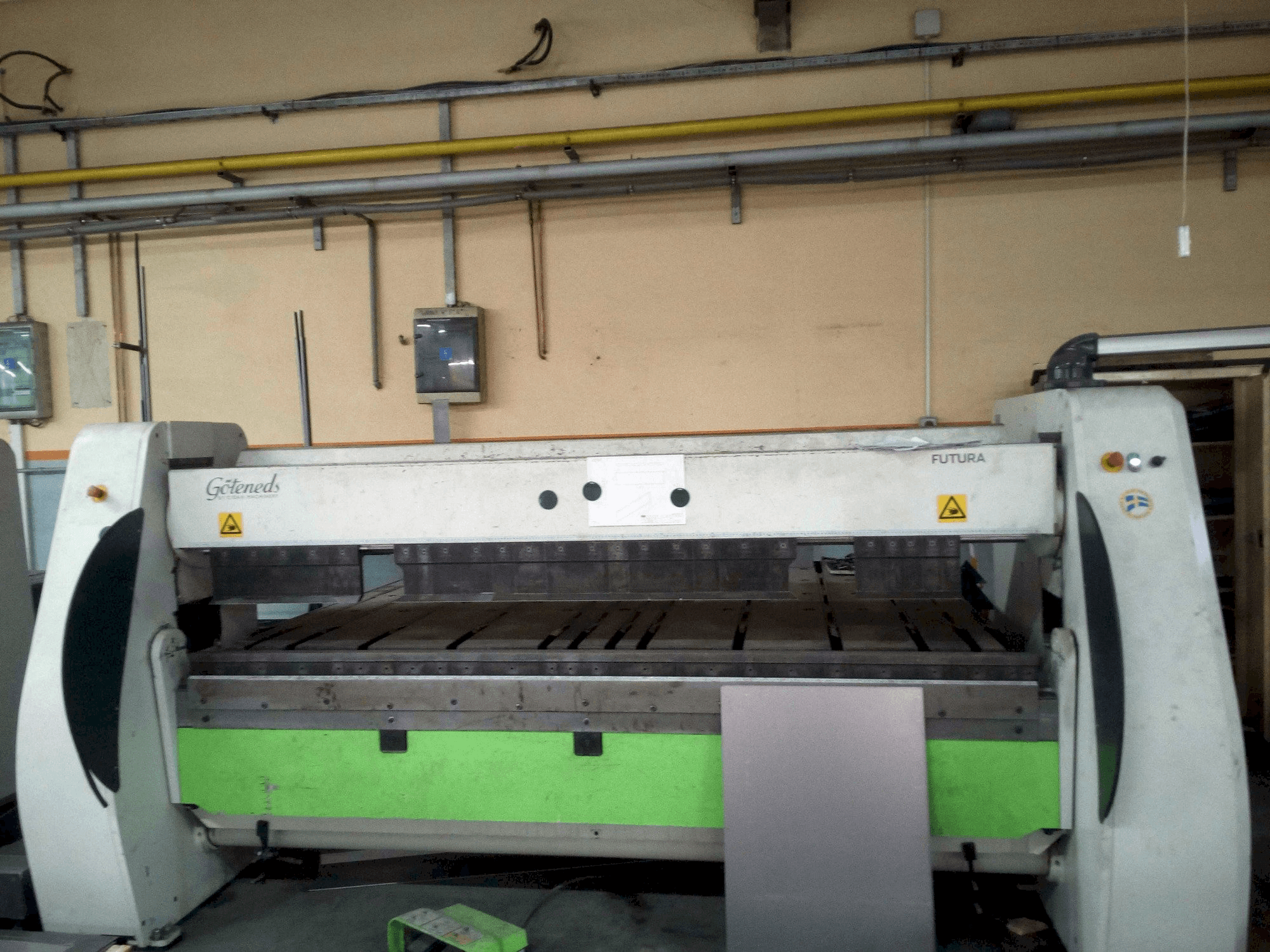

CIDAN Futura 25 Bending Machine

Show in original language

This CIDAN Futura 25 Bending Machine was built in Sweden in the year 2016. It has a production record of only 155 hours. It is equipped with a ProLink control unit. This 2 axis machine can work with a bending length 2600 mm, and a clamping beam 195mm. It includes a set of tooling. This machine presents very good working conditions, is ready for test, and full documentation is included.

Overview

brand: CIDAN
year: 2016
MODEL: Futura 25
production hours: 155
application type: Bending
Location: Poland
machine type: Press Brake
availability: Sold

Technical Information - CIDAN Futura 25

General Data

Measurements width: 3600 mm
Measurements depth: 2300 mm
Measurements height: 1845 mm
Machine weight: 4195 kg

Main drive

Bending length: 2600 mm

Max Material thickness

Steel: 2.5 mm
Stainless steel: 1.6 mm
Aluminum: 3.7 mm

Media

Main electronic connection: 3 x 400V / 50Hz

Additional equipment

- Set of tooling included

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Clamping pressure: 30 tons
- - Clamping beam: 195 mm
- - Clamping beam motor power: 2. 2 kw
- - Folding motor power: 1. 1 kw
- - Control system: prolink control, with touch screen and graphic programming system
- - Automatic adjustment of sheet thickness: 0 - 4. 0 mm
- - Folding beam rail 10 mm and 20 mm with quick change tooling
- - Adjustable crowning of folding beam rail
- - Servo driven motors for both clamping and folding
- - Beams for variable folding speed
Qualitative Machine Benefits:
- - Continuous cooling of the motor for the upper beam
- - Foot pedal for operator

Extra information

- Machine in very good, working condition, ready for tests. Full documentation included.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
