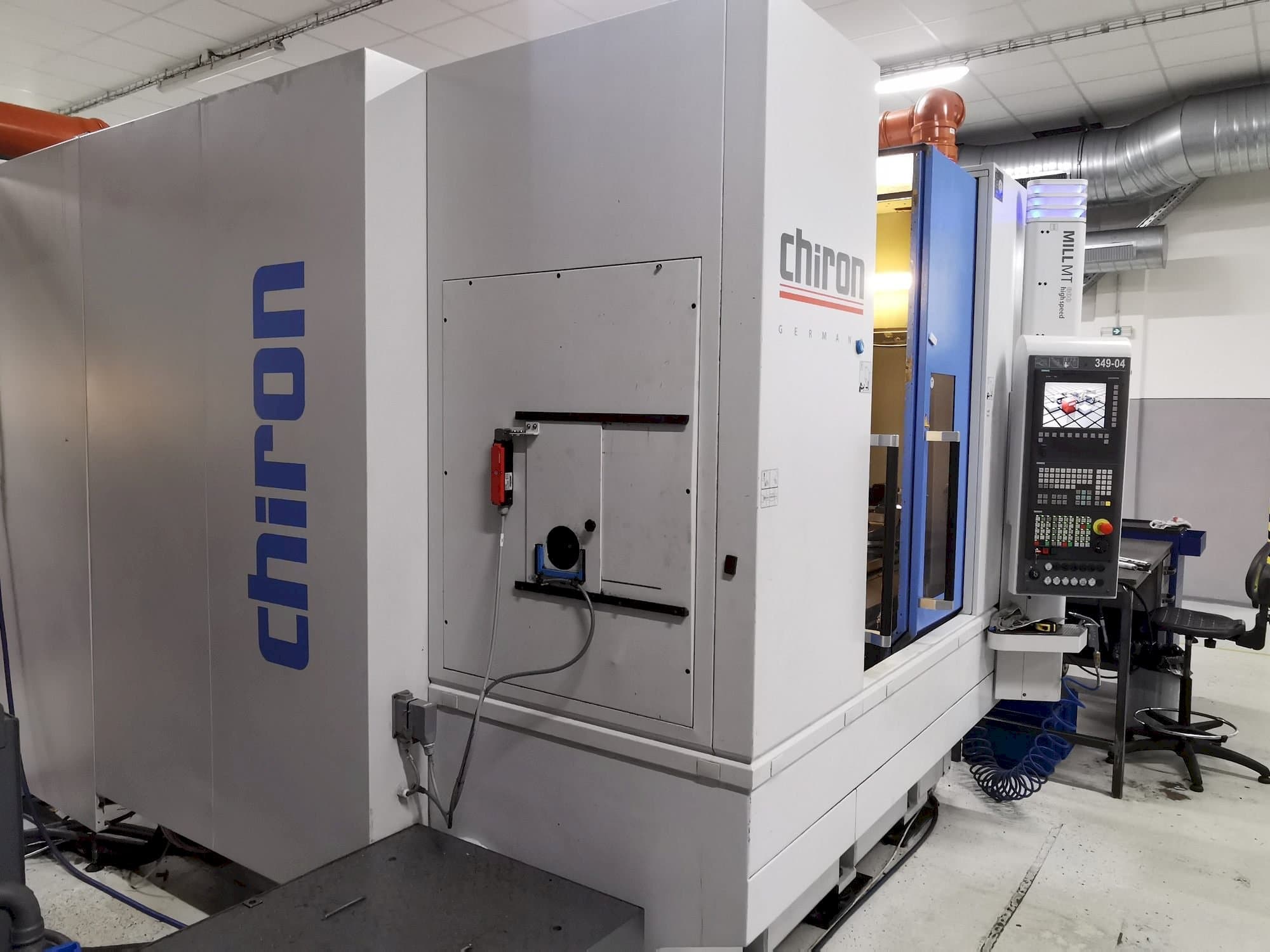

Front view of CHIRON MILL 800  machine

CHIRON - MILL 800SK-MIL-CHI-2015-00001

Sold

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This CHIRON MILL 800 Vertical Machining center was manufactured in the year 2015 in Germany. It is equipped with a SIEMENS SINUMERIK control unit and has 5 axis.

Overview

  • brand: CHIRON
  • year: 2015
  • MODEL: MILL 800
  • application type: Milling
  • Location: Slovakia
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: SIEMENS

Technical Information - CHIRON MILL 800

General Data

  • Machine weight: 8500 kg

Control Unit

  • Brand: SIEMENS
  • Model: SINUMERIK 840D

Main drive

  • Spindle speed range: 12000 1/MIN
  • Tool taper: HSK-A 63
  • Number of axis: 5

Movement

  • X-AXIS Movement: 800 MM
  • Y-AXIS Movement: 500 MM
  • Z-AXIS Movement: 550 MM

Table

  • Outer length: 800 mm
  • Outer width: 500 mm
  • Table load: 600 kgs

    Additional equipment

    • - Bar loader ILS-RBK- 10012 100 min/max 5/100 mm L= 600-1200 mm
    • - Spare part: 12 000 rpm Kessler spindle (new repair with protocol).
    • - Collet SK100 40x80 mm smooth 1 pc
    • - Collet SK100 BZG D60 - Smooth 2 pcs
    • - Collet SK100 BZ, 50x35 notched 2 pcs
    • - Collet SK100 D32 smooth 1 pc
    • - Collet SK100 BZ D65 Notched 2pcs
    • - Collet SK100 BZG ADAPTER 100 RD 1 pc
    • - Workpiece probe Renishaw 1pc

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Rapid feedrate 60 m/min
        • - Swivelling head cnc controlled (b axis) +/- 100° degrees
        • - Spindle torque140 nm
        • - Tool changer 60 positions
        • - Tool-change time 1,5 sec // taper type hsk-a 63
        • - Tool-change time 1,5 sec
        • - Coolant through spindle 40 bar
        • - Max turning dia 65mm // turning spindle rpm: 15. 000
        • - Hydraulic clamping 800 nm.
        • - Turning weight 7500 kgs
      • Qualitative Machine Benefits:
        • - Cnc controlled clamping/rotating unit for 6th face machining
        • - Pressurised linear encoders
        • - Swarf conveyor
        • - Renishaw-ready
        • - 2022 - milling spindel retrofitted

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
