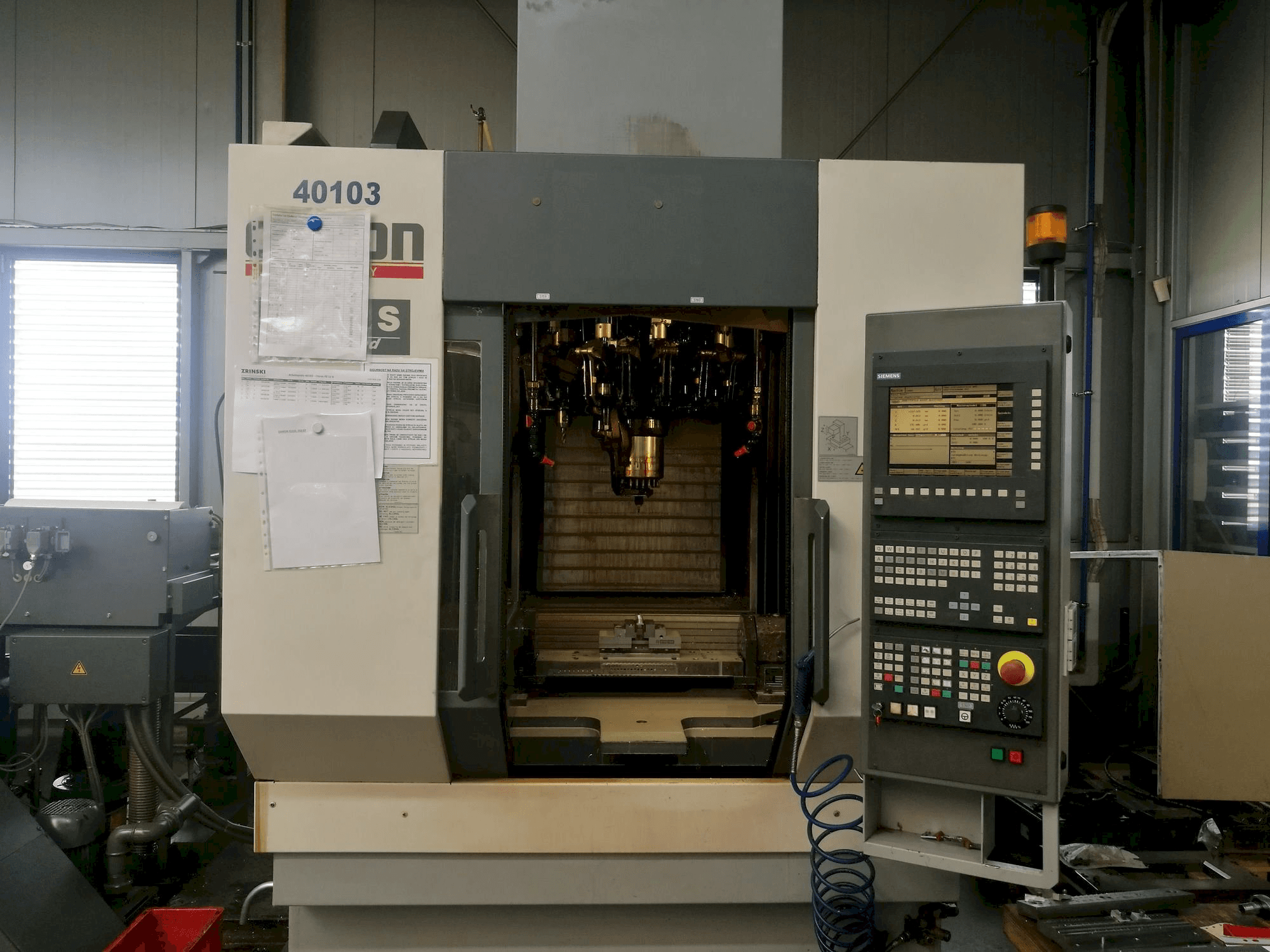

This CHIRON FZ12S Vertical Machining Center was manufactured in 1999 in Germany and has been operative for 43000 hours. Operated through a SIEMENS 840 D Control unit, this machine has a spindle speed range up tp 10500 rpm. An Emulsion filter and a 4th axis rotary unit are included.
Overview
- brand: CHIRON
- year: 1999
- MODEL: FZ12S
- production hours: 43000
- application type: Milling
- Location: Croatia
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: SIEMENS
Technical Information - CHIRON FZ12S
General Data
- Measurements width: 3200 mm
- Measurements depth: 3400 mm
- Measurements height: 2900 mm
- Machine weight: 6220 kg
Control Unit
- Model: 840 D
- CNC main language: German
- CNC language customizable: Yes
- Brand: SIEMENS
Main drive
- Number of spindles: 1
- Spindle speed range: 10500 rpm 1/MIN
Movement
- X-AXIS Movement: 550 mm
- Y-AXIS Movement: 300 mm
- Z-AXIS Movement: 425 mm
Table
- Outer length: 1150 mm
- Outer width: 460 mm
Tools
- Slots in storage: 20
- Type of tool holder: HSK63
Media
- Main electronic connection: 400 V
- Power consumption: 28 kVA
- Chip conveyor: Yes
- Internal cooling: Yes
Additional equipment
- - emulsion filter
- - 4th axis rotary unit Piesler 550x150mm, 360°
Additional Information
- Material type: Aluminum, titanium
- End product: Medical instruments
- Industries: Medical
- Technical Machine Benefits:
- - 4 axis rotary unit
- - Fast machine
- Qualitative Machine Benefits:
- - Works in 0. 01mm
- - Regulary maintained
Machine history
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
