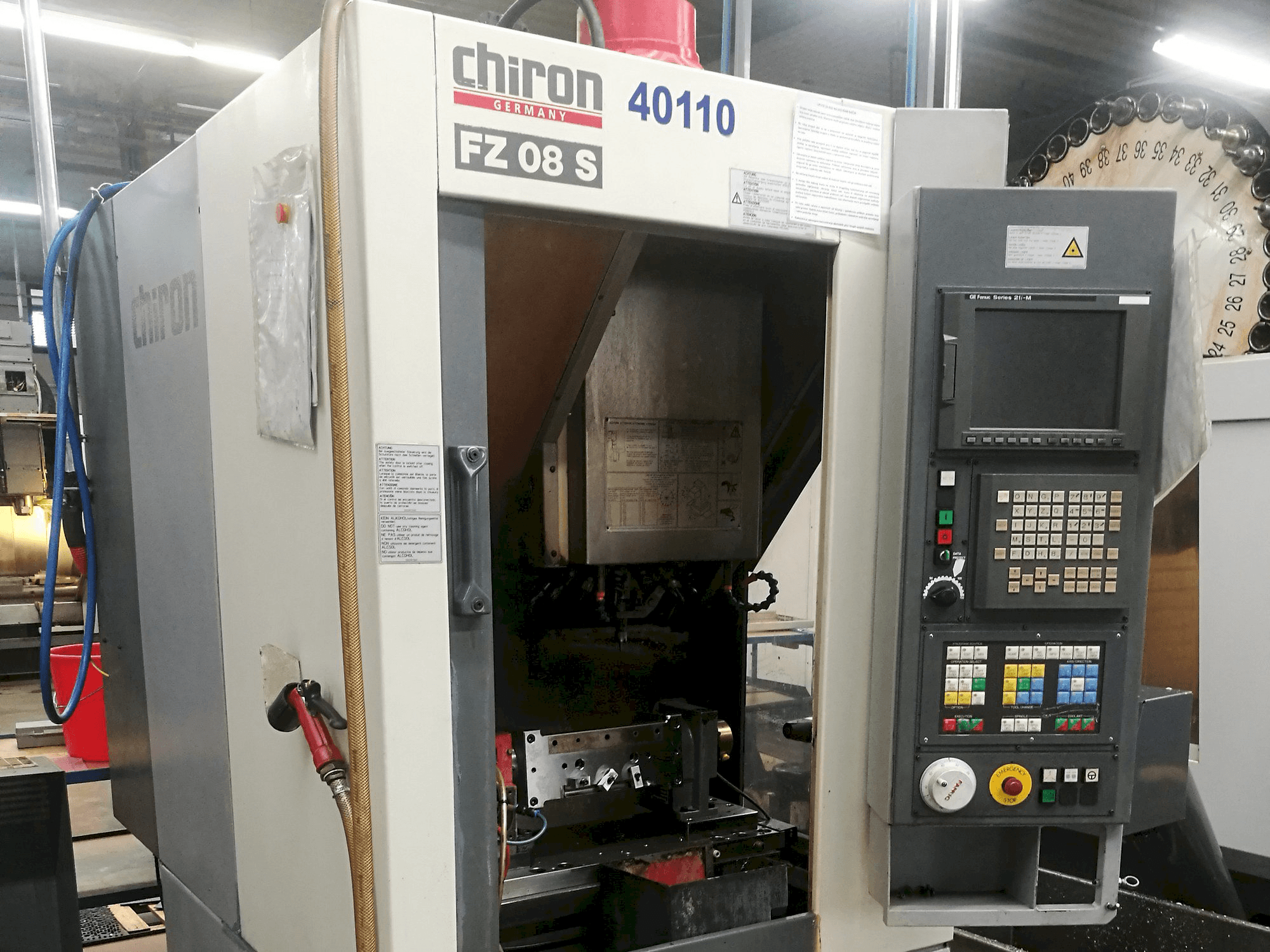

This CHIRON FZ08S Vertical Machining Center was made in 1999 in Germany and has been operative for 43000 hours. Equipped with a FANUC 21 iM Control unit, this machine can work with a spindle speed range up to 10500 rpm. Must be noted that it has a malfunction on the rotary unit Peiseler (4th axis), but machine can work normally with 3 axis.
Overview
- brand: CHIRON
- year: 1999
- MODEL: FZ08S
- production hours: 43000
- application type: Milling
- Location: Croatia
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - CHIRON FZ08S
Control Unit
- Control Brand: FANUC
- Control Model: 21 iM
Dimensions
- Machine Depth: 2000 mm
- Machine Height: 2350 mm
- Machine Weight: 1820 kg
- Table Length: 620 mm
- Table Width: 260 mm
Movement
- B-axis Max: 360°
- X-axis Travel: 300 mm
- Y-axis Travel: 250 mm
- Z-axis Travel: 425 mm
Technical Specification
- Number of Tools: 12
- Spindle Speed: 10500 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Regulary maintained
Technical Machine Benefits
- 4 axis rotary unit (with malfunction)
- Small space required
- Fast spindle
Machine History
Industries
Medical industry
End product
Medical instruments parts
Material type
Aluminium
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
