CHIRON FZ 22 S
CHIRON - FZ 22 S
1996
Do you have further questions? Contact us.
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Chiron FZ 22 S Vertical Machining Center

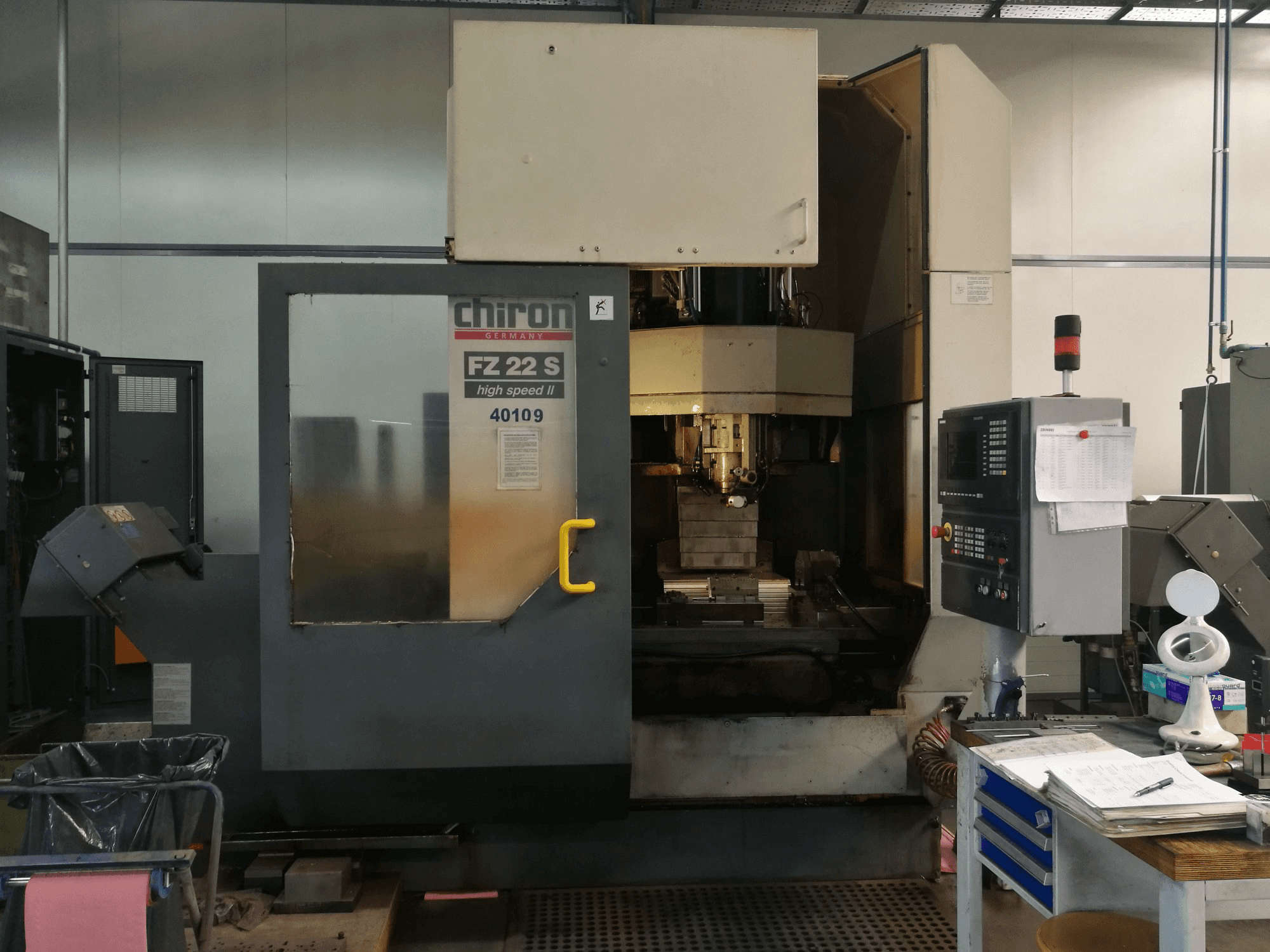

This Chiron FZ 22 S Vertical Machining Center from 1996 was fabricated in Germany and has been operative for 59400 production hours. Equipped with a SIEMENS SINUMERIK 840D Control unit, this machine has mainly worked with titanium and stainless steel during the past.
Overview
- brand: CHIRON
- year: 1996
- MODEL: FZ 22 S
- production hours: 59400
- application type: Milling
- Location: Croatia
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: SIEMENS
- GINDUMAC ID: HR-MIL-CHI-1996-00001
Technical Information
General Data
- Measurements width: 3550 mm
- Measurements depth: 3460 mm
- Measurements height: 3400 mm
- Machine weight: 8000 kg
Control Unit
- Brand: SIEMENS
- Model: SINUMERIK 840D
Main drive
- Number of spindles: 1
- Spindle speed range: 10500 1/min
Movement
- X-AXIS Movement: 750 mm
- Y-AXIS Movement: 400 mm
- Z-AXIS Movement: 425 mm
Table
- Outer length: 1150 mm
- Outer width: 460 mm
Media
- Main electronic connection: 400 V
- Pump drive power: 36 kVA
- Chip conveyor: Yes
- Internal cooling: Yes
Additional equipment
- - Automatic Tool Changer with 36 tool slots HSK63
- - 4th Axis rotary unit 360°
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
