CHIRON FZ 18 S

Photo Gallery

Video gallery

SOLD

CHIRON - FZ 18 S

1997

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

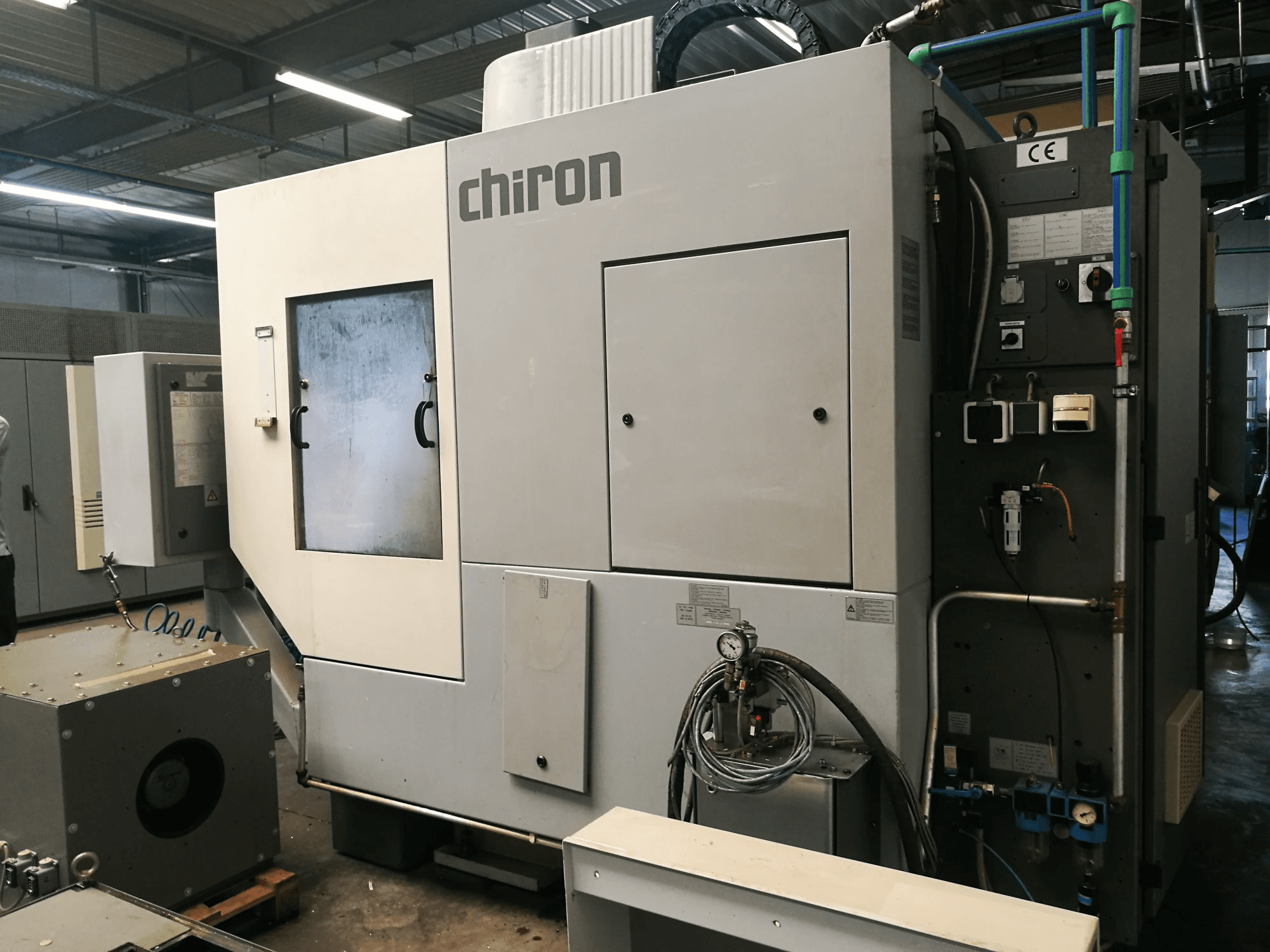

Chiron FZ 18 S Vertical Machining Center

Show in original language

This Chiron FZ 18 S Vertical Machining Center from 1997 was manufactured in Germany and counts a production time of approximately 54000 working hours since then. Operated through a SIEMENS SINUMERIK 810M Control unit, this precise and well maintained machine has mainly worked with steel and aluminium parts during the past, producing ZEISS components.

Overview

brand: CHIRON
year: 1997
MODEL: FZ 18 S
production hours: 54000
application type: Milling
Location: Croatia
machine type: Machining centers (vertical)
availability: Sold
control unit brand: SIEMENS
GINDUMAC ID: HR-MIL-CHI-1997-00001

Technical Information

General Data

Measurements width: 3550 mm
Measurements depth: 3360 mm
Measurements height: 3000 mm
Machine weight: 5500 kg

Control Unit

Brand: SIEMENS
Model: SINUMERIK 810M

Main drive

Number of spindles: 1
Spindle speed range: 10500 1/min

Movement

X-AXIS Movement: 750 mm
Y-AXIS Movement: 430 mm
Z-AXIS Movement: 425 mm

Table

Outer length: 1150 mm
Outer width: 460 mm

Tools

Max tool diameter: 180 mm
Max tool length: 220 mm

Media

Main electronic connection: 400 V
Power consumption: 35 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- Automatic Tool Changer with 20 Tool slots SK40
- 4th Axis rotary unit 360°

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
