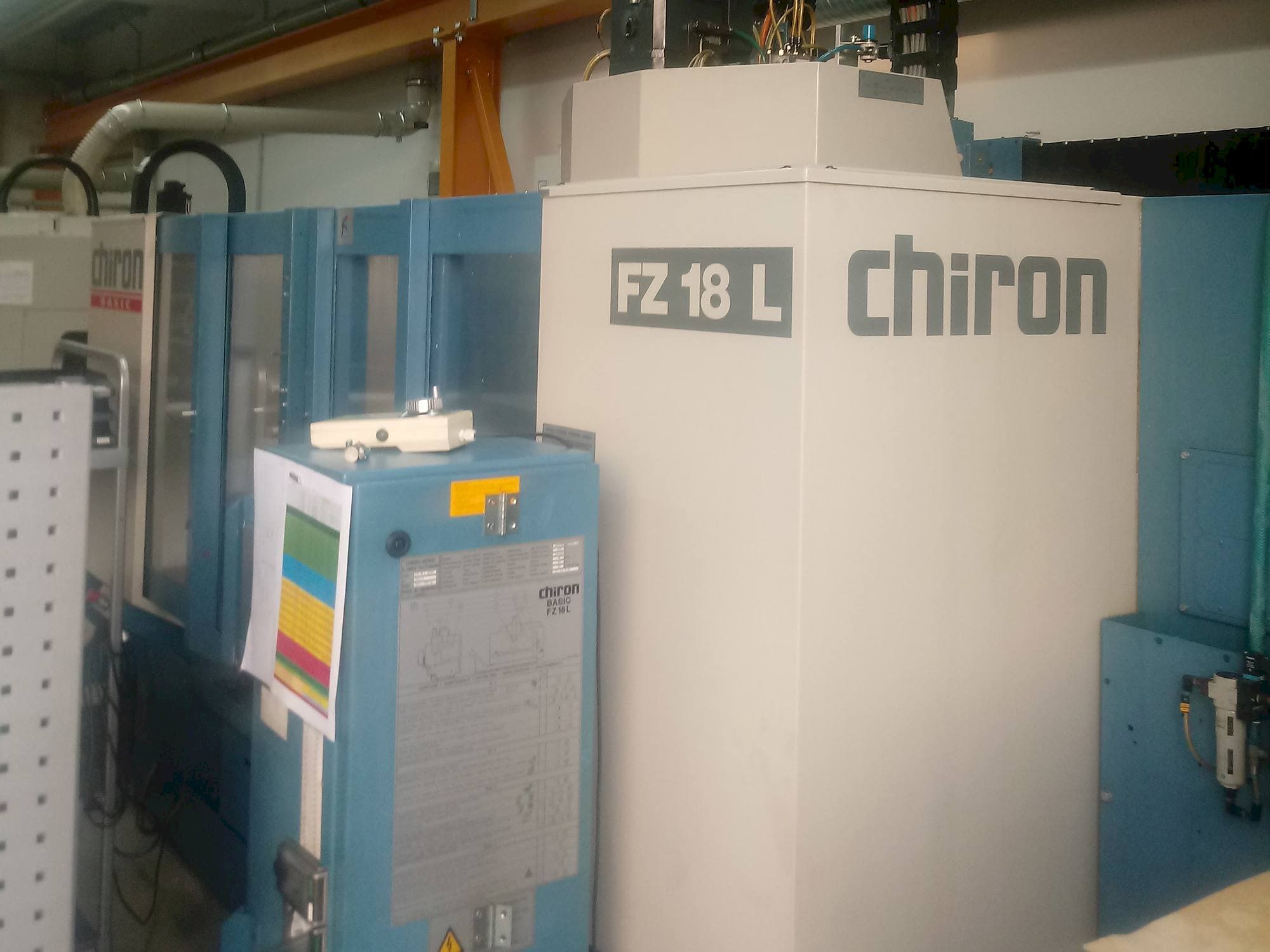

Front view of CHIRON FZ 18 L 2000 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

CHIRON FZ 18 L 2000

Photo Gallery

CHIRON - FZ 18 L 2000DE-MIL-CHI-2005-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
CHIRON FZ 18 L 2000 Vertical Machining Center

Show in original language

This CHIRON FZ 18 L 2000 Vertical Machining Center was manufactured in Germany in the year 2005. It is operated through a SIEMENS control unit. This CHIRON has a clamping surface of 2280mm x 450mm.

Overview

brand: CHIRON
year: 2005
MODEL: FZ 18 L 2000
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - CHIRON FZ 18 L 2000

General Data

Measurements width: 4219 mm
Measurements depth: 3920 mm
Measurements height: 3055 mm
Machine weight: 7200 kg

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 425 mm with variable tool change level

Tools

Slots in storage: 36
Max weight: 12 kg
Max tool length: 250 mm
Type of tool holder: SK40

Media

Main electronic connection: 400 V - 50/60Hz

Additional Information

Machine Benefits

Technical Machine Benefits

Clamping surface 2280mm x 450mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
