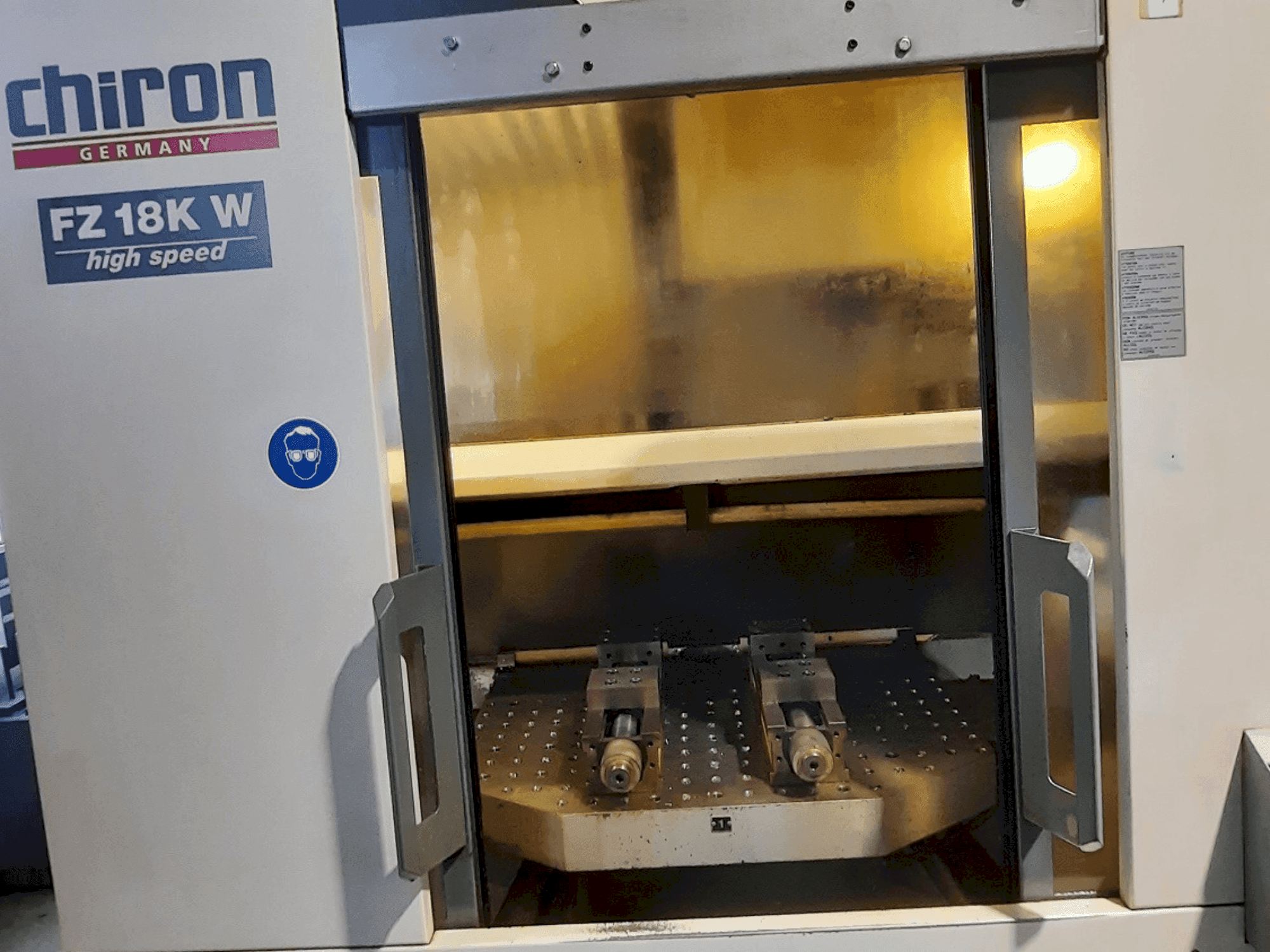

CHIRON - FZ 18 KWDE-MIL-CHI-2001-00001

Machine Benefits

Technical Machine Benefits

• Main spindle drive with ac motor
• Power: 10 kw at 100% duty cycle, 18 kw at 25% duty cycle
• Feed drive for x, y, and z axes with digital direct drives and indirect absolute position measuring system
• Acceleration: 0. 5 g in the x and y axes, 0. 7 g in the z axis
• Transport load per side: 0 - max 400 kg
• Workpiece changing device with stainless steel center divider
• Workpiece change time: approx. 3. 7 s (weight-dependent, self-regulating)

Extra Information

Tools Automatic tool changer with 40 tool positions Tool shank: steep taper 40 DIN 69871+72 Tool diameter with free adjacent positions: 160 mm Tool change time: approx. 1.0 s (control-dependent) Chip-to-chip time: approx. 2.9 s (control-dependent) Control Unit SIEMENS CNC control 840D Includes 10.4" TFT color screen and full keyboard OP032S NC RAM 256 KB (freely available max. 200 programs) Features: Drilling cycles G81-G89, Drilling and milling patterns, M and T functions, Circular interpolation, Program restart, Subroutine technology, Simultaneous programming, Contour train programming, Cycle support, Polar coordinates, Tool compensation for geometry and wear, Tool radius compensation, 3D interpolation, Mirroring, Scale factor, Chamfers and radii insertion, RS 232C interface, Oriented spindle stop, Execution of large CNC programs, Software limit switches, NC diagnostics, Absolute position measuring systems, Power display on screen, Revolutional feedrate look-ahead
