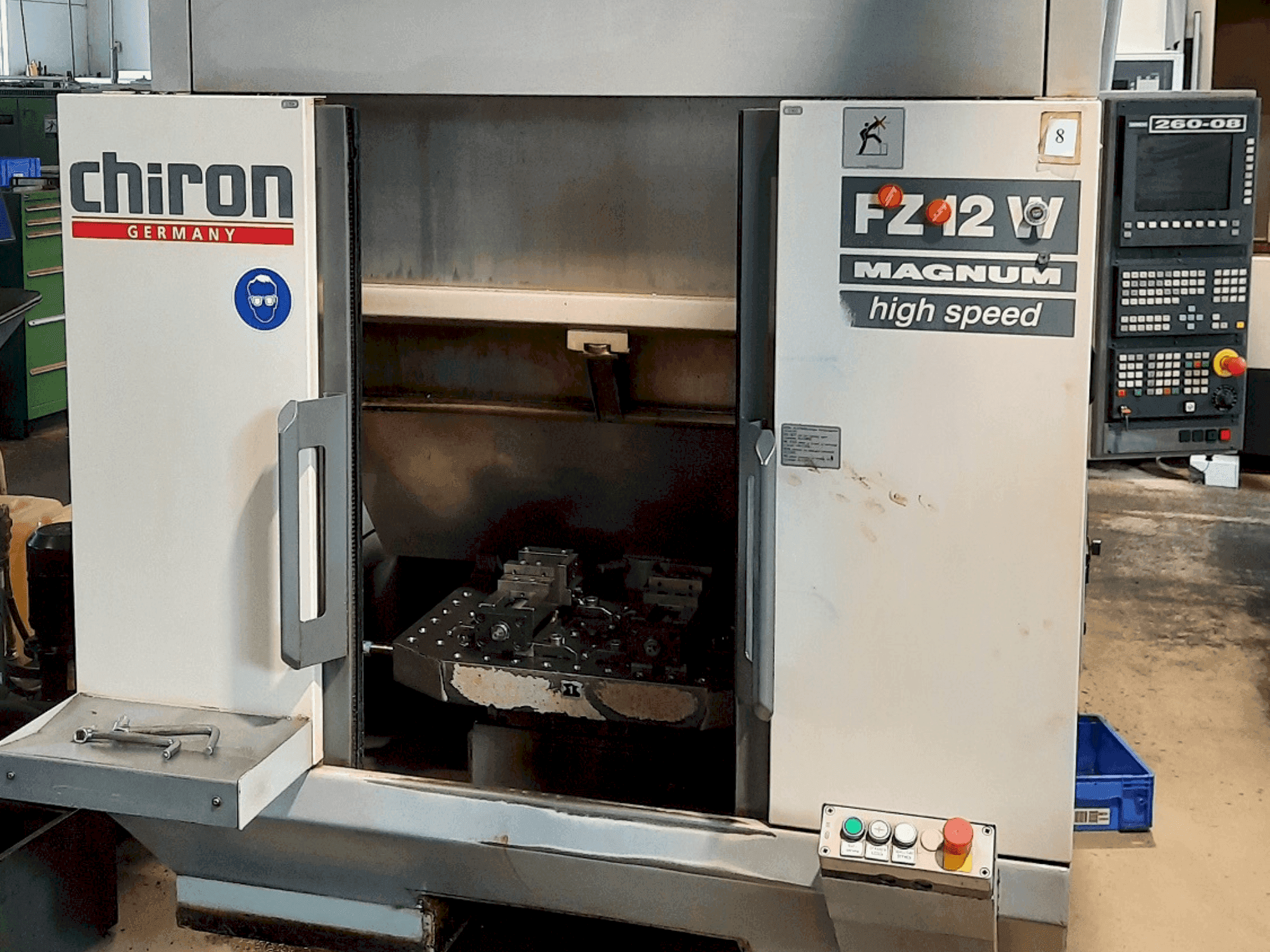

Front view of CHIRON FZ 12 W machine
Front view of CHIRON FZ 12 W machine

CHIRON - FZ 12 WDE-MIL-CHI-2003-00001

Rs. 1,021,550
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis CHIRON FZ 12 W was manufactured in 2003. It features a reinforced spindle drive with 10 kW at 100% and 18 kW at 25%, achieving speeds of 20-10,500 rpm. The machine includes a 20-tool automatic changer and a travel path of x=550, y=300, z=425 mm. It operates with a Sinumerik 840 D control system and has a chip container capacity of 125 liters. For more information about this machine, please reach out to us.

Overview

  • brand: CHIRON
  • year: 2003
  • MODEL: FZ 12 W
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • control unit brand: SIEMENS

Technical Information - CHIRON FZ 12 W

Control Unit

  • Brand: SIEMENS

Main drive

  • Spindle speed range: 20-10500 rpm 1/MIN
  • Spindle motor power: 10 kW
  • Number of axis: 3

Movement

  • X-AXIS Movement: 550 mm
  • Y-AXIS Movement: 300 mm
  • Z-AXIS Movement: 425 mm

Additional Information

Machine Benefits

Technical Machine Benefits

  • Reinforced spindle drive
  • Nc memory expansion: 512 kb up to 1. 5 mb
  • Chip container capacity: 125 liters
  • Pump output: 150 liters/min at 1. 3 bar
  • Automatic tool changer: 20 tools; din 69871
  • Special features: operating hours and workpiece counter on the screen
  • Feed drive: ac motor; 40 m/min
  • Torque: 140 nm
  • Shuttle table (pallet)

Extra Information

Machine preparation for internal polarity Raised splash guard Control cabinet cooler as door-mounted device

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
