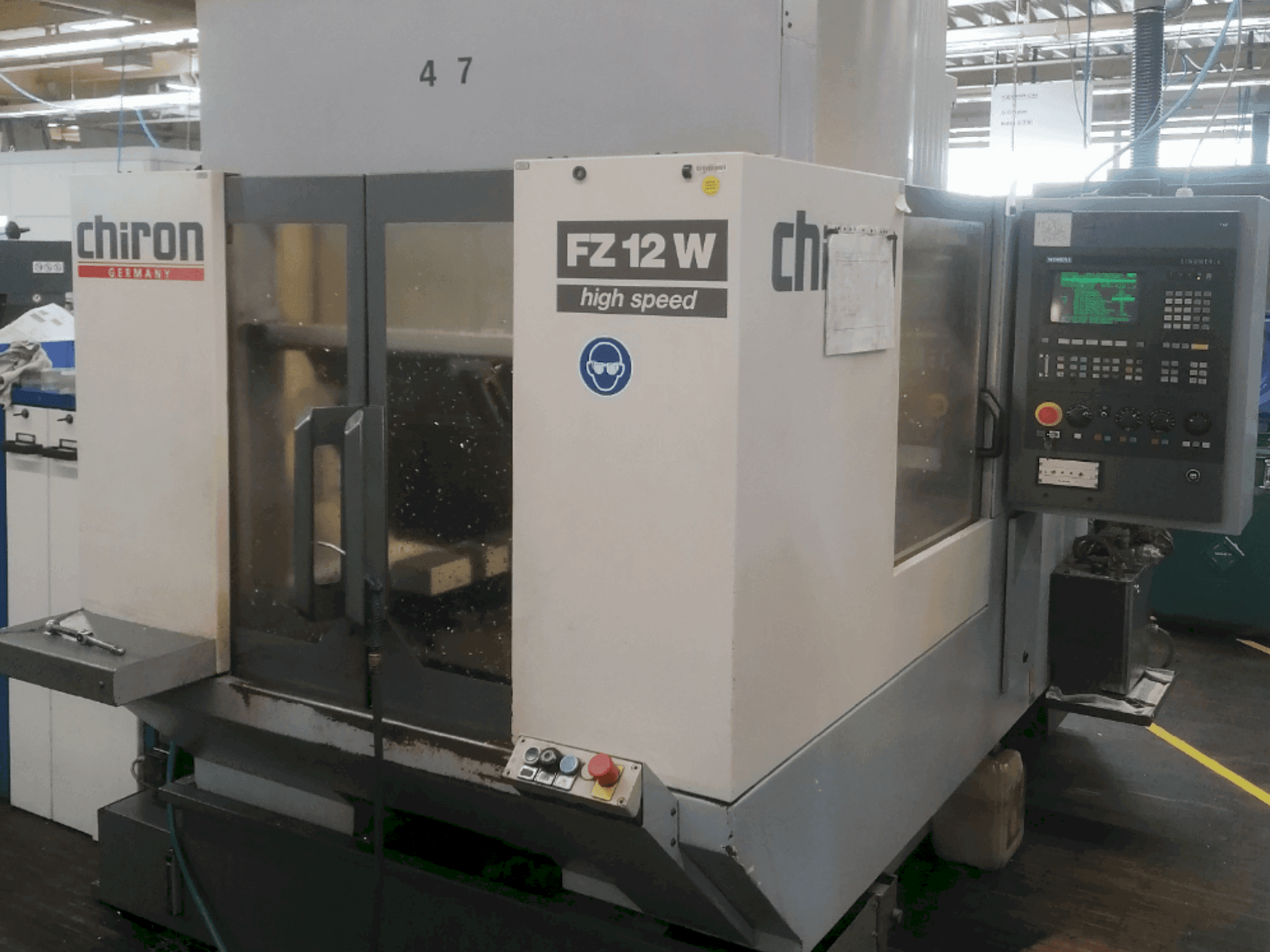

This CHIRON FZ 12 W was manufactured in 1995. A vertical machining center featuring a SK30 spindle mount, maximum spindle speed of 10,000 rpm, and a tool magazine with 12 positions. It includes a Sinumerik 810D control system and rapid traverse rates up to 40 m/min. Table size measures 660 x 350 mm. Consider the opportunity to buy this CHIRON FZ 12 W vertical machining center. Contact us for more information.

Overview

  • brand: CHIRON
  • year: 1995
  • MODEL: FZ 12 W
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • control unit brand: SIEMENS

Technical Information - CHIRON FZ 12 W

Control Unit

  • Control Brand: SIEMENS
  • Control Model: Sinumerik 810D

Movement

  • Number of Axes: 2
  • X-axis Travel: 550 mm
  • Y-axis Travel: 300 mm

Technical Specification

  • Spindle Power: 95 kW
  • Spindle Speed: 10000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

  • Control voltage: 230v / 24v
  • Power supply: 3x 400v, 50/60 hz
  • Rated power: 16 kva
  • Rated current: 34a
  • Rapid traverse (xyz): up to 40 m/min
  • Table size: 660 x 350 mm
  • Tool magazine: 12 positions
  • Tool changeover time: approx. 2 seconds

Extra Information

When milling with an 80 mm diameter cutter, slight noise was audible in the spindle area.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
