HERMLE - UWF 1002 HDE-MIL-HER-1995-00001

Name: HERMLE UWF 1002 H
Brand: HERMLE
SKU: DE-MIL-HER-1995-00001
Price: 1564394 INR
Availability: InStock

Rs. 1,564,394

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HERMLE UWF 1002 H For Sale | gindumac.com

Show in original language

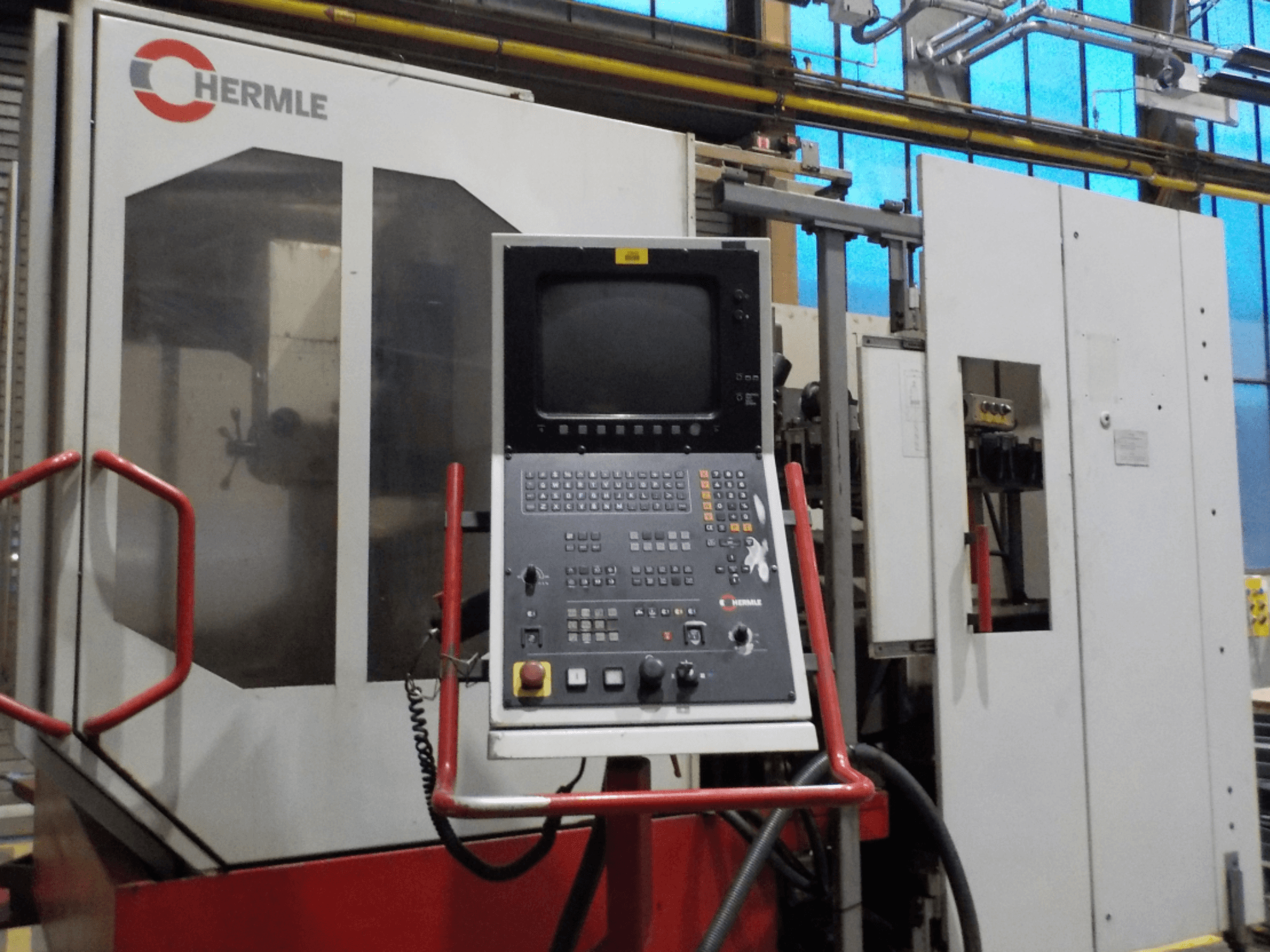

This 3-axis HERMLE UWF 1002 H was manufactured in 1995. It features an X-axis travel of 700 mm, Y-axis travel of 630 mm, and Z-axis travel of 500 mm. The machine has a table load capacity of 700 kg and a table surface area of 1000 x 490 mm. If you are looking to get high-quality machining capabilities, consider the HERMLE UWF 1002 H vertical machining centre we have for sale. Contact us for further details.

Overview

brand: HERMLE
year: 1995
MODEL: UWF 1002 H
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - HERMLE UWF 1002 H

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 426

Movement

Number of Axes: 3
X-axis Travel: 700 mm
Y-axis Travel: 630 mm
Z-axis Travel: 500 mm

Technical Specification

Spindle Speed: 4200 RPM

Additional Information

- Operating Voltage: 400 V / 3~

- Control Voltage: 24 V DC / 220 V AC

- Frequency: 50 Hz

- Total Nominal Current: 33 A

- Total Rating: 23 kVA (with IKZ) / 21 kW

- X-Axis Travel: 700 mm

- Y-Axis Travel: 630 mm

- Z-Axis Travel: 500 mm

- Net Weight: 6,800 kg

- Table Load Capacity: 700 kg

- Table Surface Area: 1000 x 490 mm

- Coolant Tank Capacity: 240 Liters

- Coolant Flow Rate / Pressure: 20 L/min / max. 4 bar

- Electrical Drawing No.: HS 460-2

- Standard Features: Full protective cabin, 5-axis contouring control, Cast iron/mineral cast composite construction in the machine base and cross support, Heat exchanger in the control cabinet, Brushless AC motors, Work area lights

- Current Errors/Issues: Motor encoder Z: Amplitude too small

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
