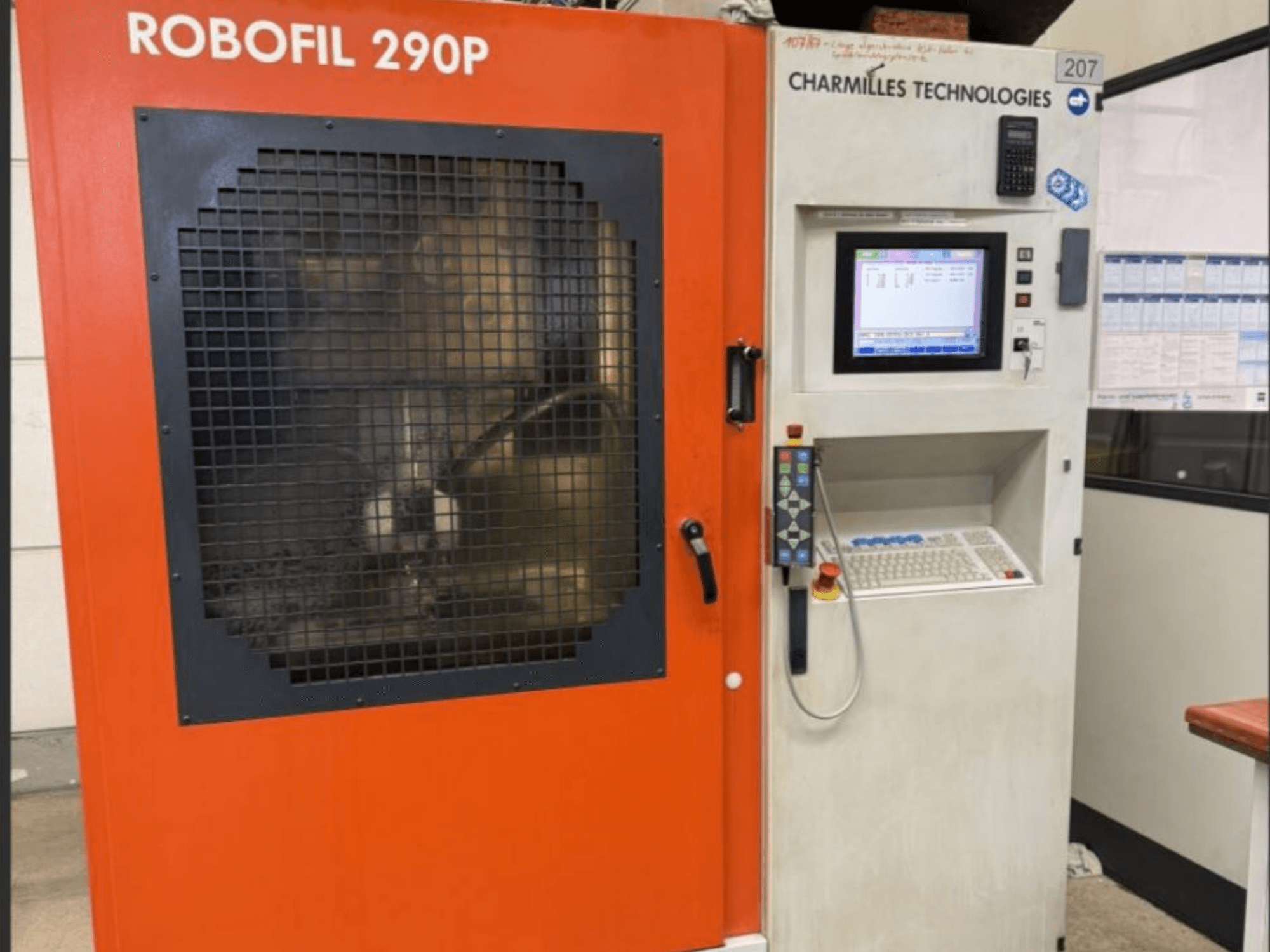

CHARMILLES TECHNOLOGIES Robofil 290P (1999)

Photo Gallery

CHARMILLES - TECHNOLOGIES Robofil 290P (1999) DE-EDM-CHA-1999-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used CHARMILLES TECHNOLOGIES Robofil 290P (1999) | EDM

Show in original language

This 5-axis CHARMILLES TECHNOLOGIES Robofil 290P was manufactured in 1999. It features a travel range of 400 mm x 250 mm x 200 mm and can accommodate a maximum workpiece weight of 500 kg with dimensions of approximately 850 x 500 x 200 mm. If you are looking to get high-quality wire EDM capabilities, consider the CHARMILLES TECHNOLOGIES Robofil 290P machine we have for sale. Contact us for further details.

Overview

brand: CHARMILLES
year: 1999
MODEL: TECHNOLOGIES Robofil 290P (1999)
application type: EDM
Location: Germany
machine type: Wire EDM Machine

Technical Information - CHARMILLES TECHNOLOGIES Robofil 290P (1999)

Dimensions

Machine Height: 2180 mm
Machine Length: 1800 mm
Machine Weight: 2500 kg
Machine Width: 1600 mm

Movement

Number of Axes: 5
X-axis Travel: 400 mm
Y-axis Travel: 250 mm
Z-axis Travel: 200 mm

Technical Specification

Max. Wire Diameter: 0.3 mm
Min. Wire Diameter: 0.1 mm

Additional Information

UV-axes (taper): 400 x 250 mm
Max. workpiece weight: 500 kg
Max. workpiece dimensions: approx. 850 x 500 x 200 mm
Automatic wire threading: Yes
Control system: Charmilles

Additional equipment

Extended filter system
Automatic restart
Cross rail
Wire tension measuring device

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
