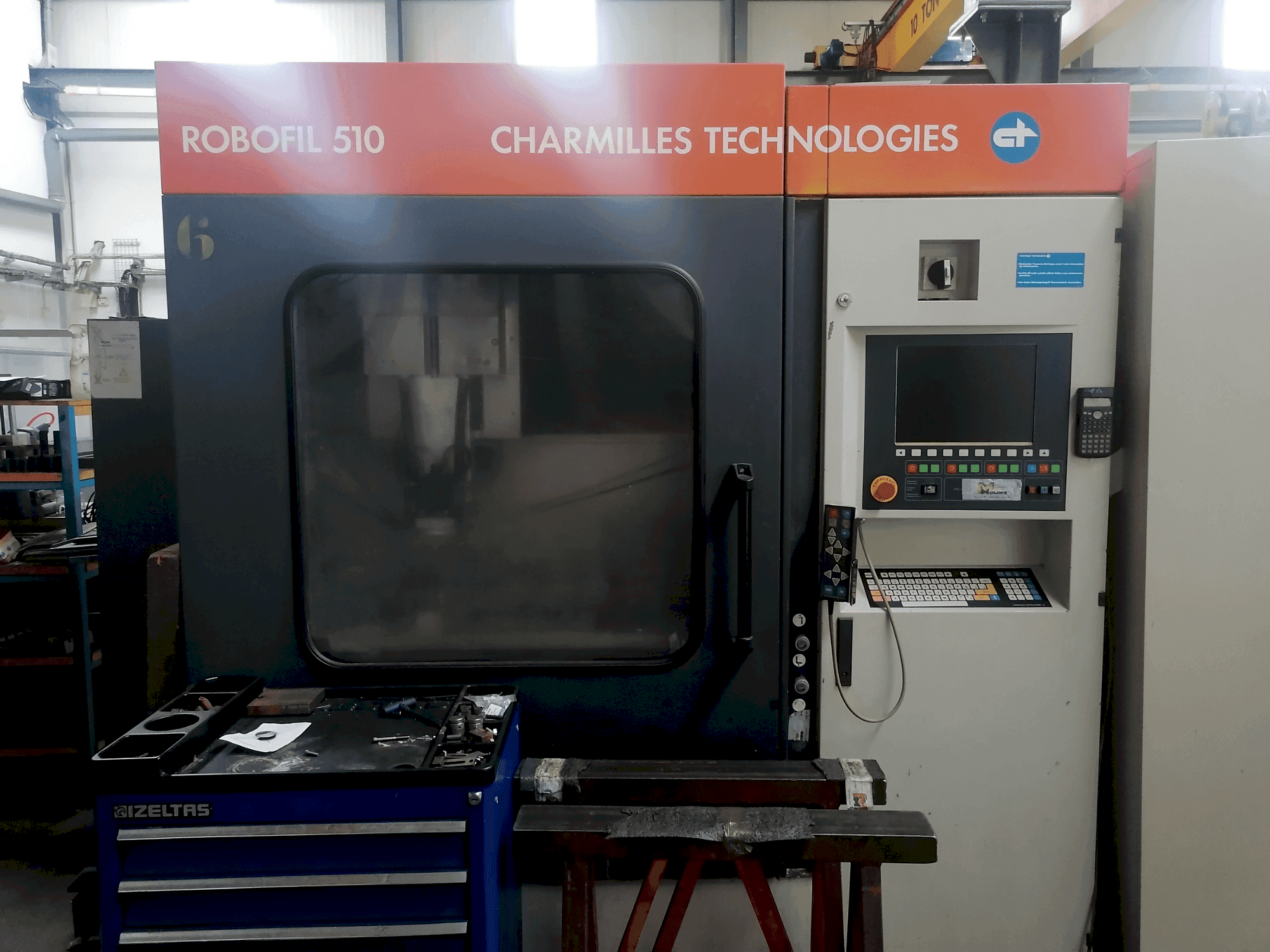

Front view of CHARMILLES Robofil 510  machine

CHARMILLES - Robofil 510PT-EDM-CHA-1997-00001

Rs. 1,614,550
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis CHARMILLES Robofil 510 was manufactured in 1997, a robust erosion machine designed for precision. It supports a maximum part size of 1200 x 700 x 400 MM and a weight up to 2000 KG. Equipped with automatic wire feeding and capable of handling wire diameters from 0.15 to 0.30 MM. A great opportunity to buy this CHARMILLES Robofil 510 erosion machine. Contact us for further details regarding this erosion machine.

Overview

  • brand: CHARMILLES
  • year: 1997
  • MODEL: Robofil 510
  • application type: EDM
  • Location: Portugal
  • machine type: Erosion Machine
  • availability: Immediately

Technical Information - CHARMILLES Robofil 510

General Data

  • Measurements width: 2100 mm
  • Measurements depth: 2100 mm
  • Measurements height: 2230 mm
  • Machine weight: 3500 kg

Movement

  • X-AXIS Movement: 700 MM
  • Y-AXIS Movement: 400 MM
  • Z-AXIS Movement: 400 MM
  • V-Axis Movement: 400 MM
  • U-Axis Movement: 700 MM

Workpiece

  • Workpiece x: 1200 mm
  • Workpiece y: 700 mm
  • Workpiece z: 400 mm
  • Workpiece weight: 2000 kg

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Technical machine benefits: large part handling capacity, precise u/v strokes, automatic wire feeding, versatile wire diameter capabilities.
      • - Technical machine benefits: large part handling capacity, precise u/v strokes, automatic wire feeding, versatile wire diameter capabilities.
      • - Wire diameter: 0. 15 - 0. 30 mm
      • - Reel type: 25 kg
      • - Awf (automatic wire feeding): yes

    Extra information

    • - Maximum part size: 1200 x 700 x 400 mm. Maximum part weight: 2000 kg. Dielectric volume: 450 liters.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
