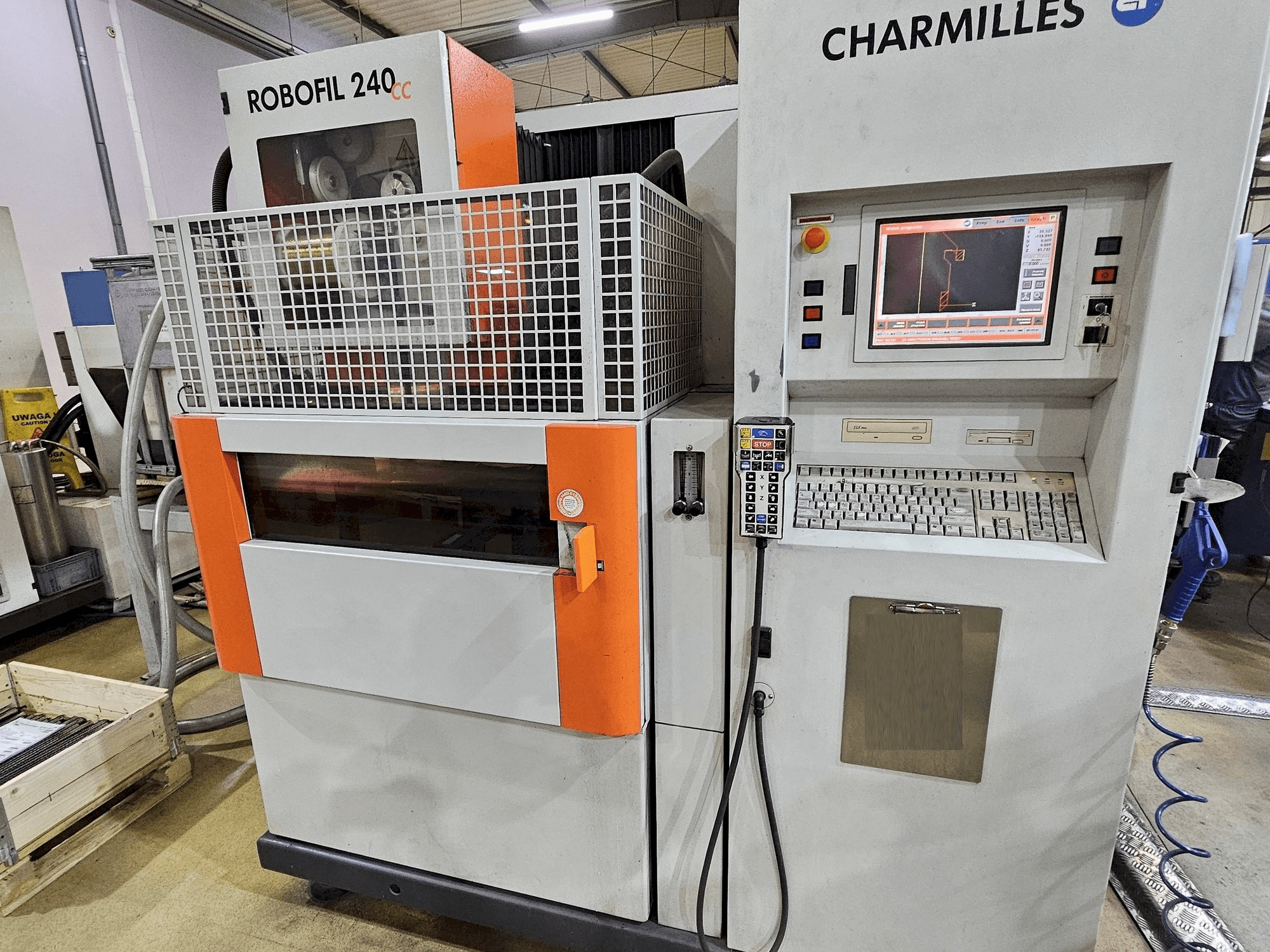

Front view of CHARMILLES ROBOFIL 240 CC  machine

CHARMILLES - ROBOFIL 240 CCPL-EDM-CHA-2005-00001

Rs. 2,771,600
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis CHARMILLES ROBOFIL 240 CC was manufactured in 2005. It features a max. taper of +/- 30° at 220 mm height, and can handle workpieces up to 1000 x 550 x 220 mm, weighing up to 750 kg. The machine dimensions are 2020 x 2050 x 2000 mm, and it weighs 2100 kg. For those interested in robust erosion capabilities, the CHARMILLES ROBOFIL 240 CC machine we have for sale is an excellent opportunity. Contact us for further details.

Overview

  • brand: CHARMILLES
  • year: 2005
  • MODEL: ROBOFIL 240 CC
  • production hours: 40
  • application type: EDM
  • Location: Poland
  • machine type: Erosion Machine
  • availability: Immediately

Technical Information - CHARMILLES ROBOFIL 240 CC

General Data

  • Measurements width: 2050 MM
  • Measurements depth: 2020 MM
  • Measurements height: 2000 MM
  • Machine weight: 2100 KG

Main drive

  • Max taper angle: +/- 30° at 220 mm height

Movement

  • X-AXIS Movement: 350 mm
  • Y-AXIS Movement: 220 mm
  • Z-AXIS Movement: 220 mm
  • V-Axis Movement: 220 mm
  • U-Axis Movement: 350 mm

Workpiece

  • Workpiece x: 1000 mm
  • Workpiece y: 550 mm
  • Workpiece z: 220 mm
  • Workpiece weight: 750 mm KG

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - 5-axis capability, large workpiece handling capacity.
    • Qualitative Machine Benefits:
      • - High precision and consistent machining results.

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
