CHARMILLES ROBOFIL 2020-1
CHARMILLES - ROBOFIL 2020-1
1996
Do you have further questions? Contact us.
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- CHARMILLES ROBOFIL 2020-1 Erosion Machine

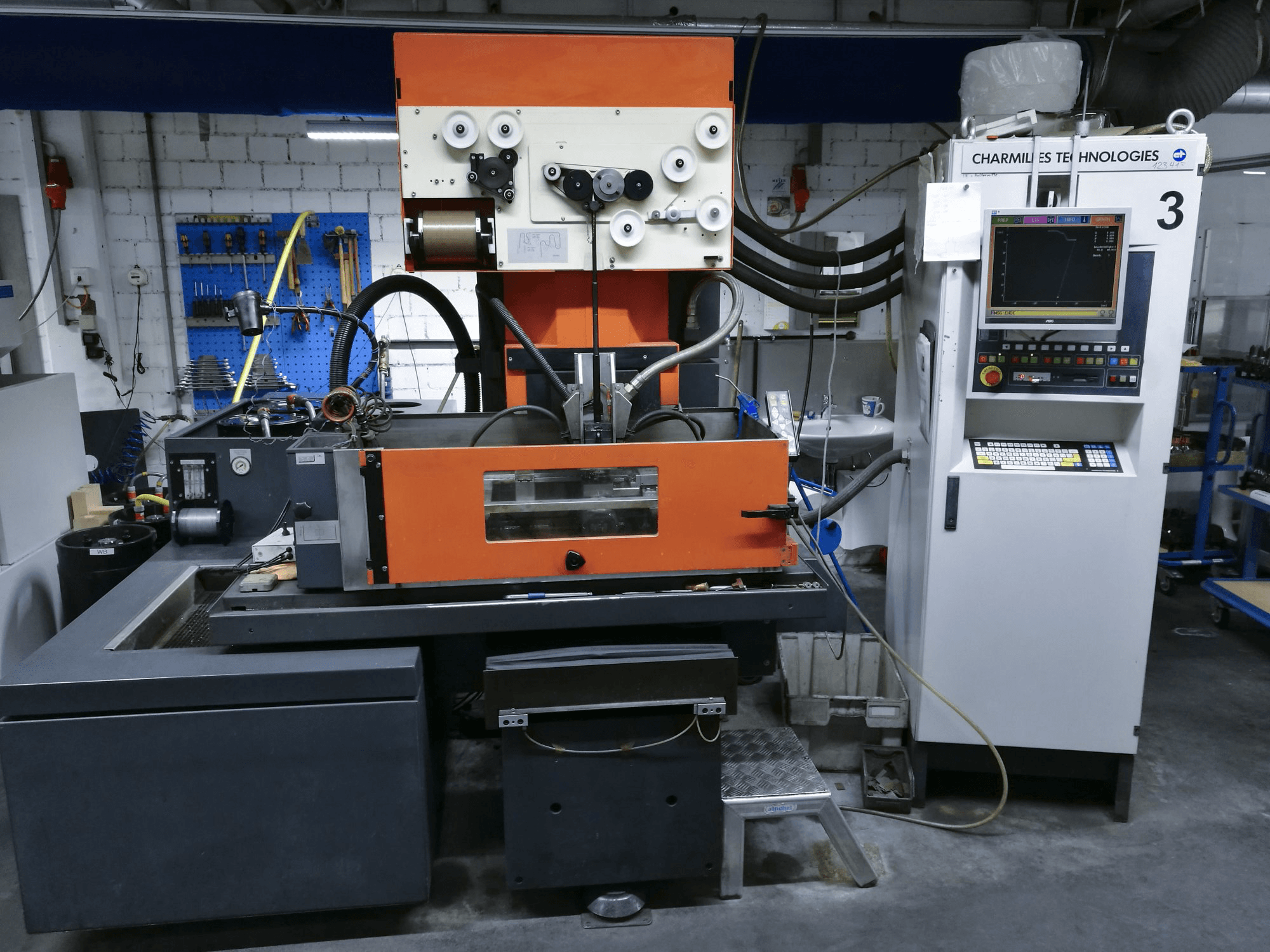

This CHARMILLES ROBOFIL 2020-1 Erosion Machine has been manufactured in 1996 in Switzerland and has a working history of approximately 49000 production hours. Equipped with a CHARMILLES Control Unit, this machine is excellent conditions. During past maintenance works, the machine got its X-Axis (2008) and Y-Axis (2015) replaced and a larger filter system installed (2015).
Overview
- brand: CHARMILLES
- year: 1996
- MODEL: ROBOFIL 2020-1
- production hours: 49000
- application type: EDM
- Location: Germany
- machine type: Erosion Machine
- availability: Sold
- control unit brand: CHARMILLES
- GINDUMAC ID: DE-EDM-CHA-1996-00001
Technical Information
General Data
- Measurements width: 2200 mm
- Measurements depth: 2520 mm
- Measurements height: 2295 mm
- Machine weight: 2400 kg
Control Unit
- Brand: CHARMILLES
Main drive
- Number of spindles: 1
- Wire diameter: 0.1 - 0.25 mm
Movement
- X-AXIS Movement: 320 mm
- Y-AXIS Movement: 220 mm
- Z-AXIS Movement: 116 mm
Workpiece
- Workpiece x: 990 mm
- Workpiece y: 505 mm
- Workpiece z: 150 mm
- Workpiece weight: 500 kg
Media
- Main electronic connection: 380/400 V
- Power consumption: 12 kVA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
