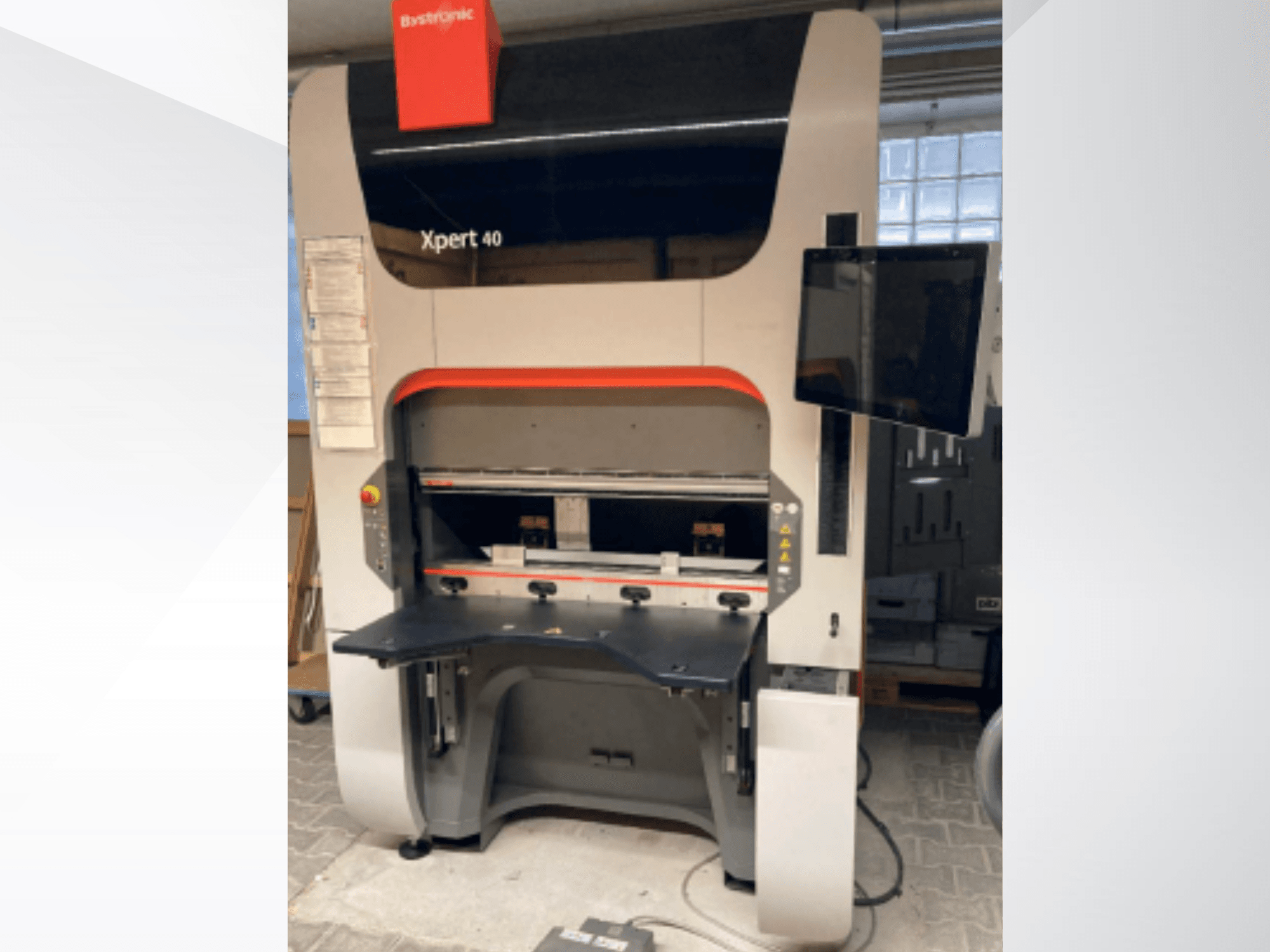

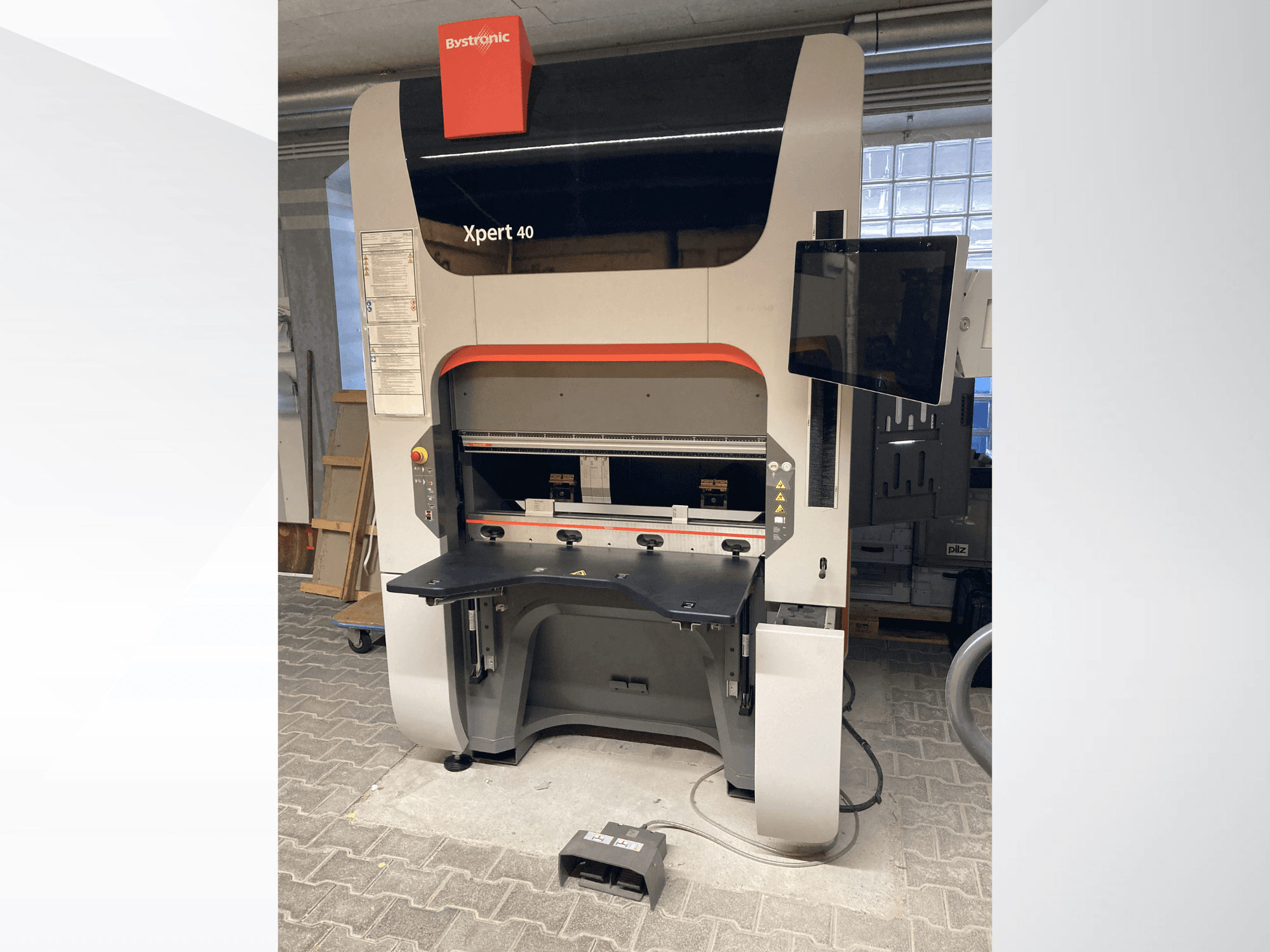

This 6-axis Bystronic Xpert 40/1030 hydraulic press brake was manufactured in 2016. It features a pressing force of 400 kN and a bending length of 1030 mm, ensuring efficient performance. The machine includes a maximum stroke of 200 mm and an advanced ByVision Bending control system with a 22-inch Full HD touch display. If you are looking to get high-quality bending capabilities, consider the Bystronic Xpert 40/1030 machine we have for sale. Contact us for further details.
Overview
- brand: Bystronic
- year: 2016
- MODEL: Xpert 40/1030
- production hours: 549
- application type: Bending
- Location: Germany
- machine type: Press Brake
- control unit brand:
Technical Information - Bystronic Xpert 40/1030
Dimensions
- Machine Height: 2449 mm
- Machine Length: 1520 mm
- Machine Weight: 4000 kg
- Machine Width: 1584 mm
Movement
- Number of Axes: 6
- X-axis Travel: 300 mm
- Z-axis Travel: 955 mm
Technical Specification
- Bending Length: 1030 mm
- Max. Stroke: 200 mm
- Pressing Force: 400 Kn
Additional Information
Number of axes: 6-axis backgauge (Y1, Y2, X, R, Z1, Z2)
R-axis travel: 100 mm
Y-approach speed: 300 mm/s
Y-working speed: 25 mm/s
Open height: 515 mm
Distance between side frames: 1060 mm
Table width: 60 mm
Total connected load: 12 kW
Operating voltage: 400 VAC (3 phase, 50 Hz)
Control voltage: 24 VDC
Nominal current fuse: 32 A
Max. hydraulic pressure: 320 bar
Control system: ByVision Bending with 22-inch Full HD touch display
Stroke: 200 mm
Throat: 0 mm
Press force: 400 KN
Bending length: 1030 mm
Working height: 885 mm
Lower beam width: 120 mm
Crowning: hydr.
Y rapid approach speed: 250 mm/s
Y return speed: 250 mm/s
Main motor power: 7.5 kW
Oil capacity: approx. 100 l
Backgauge: Type P14HA3-HA6
X-axis travel: 300 mm
Max. backgauge range in X: 500 mm
X-axis accuracy: 0.02 mm
X-axis speed: 1500 mm/s
R-axis travel: 100 mm
R-axis accuracy: 0.1 mm
R-axis speed: 500 mm/s
Z-axis travel: approx. 955 mm
Z-axis accuracy: 0.1 mm
Z-axis speed: 2000 mm/s
X1-axis travel: 0 mm
X1-axis accuracy: 0 mm
X1-axis speed: 0 mm/s
Length (L): 1520 mm
Width (W): 1700 mm
Height (H): 2449 mm
Side frame below floor: 0 mm
Lower beam below floor: 0 mm
Weight: approx. 4 t
Additional equipment
Integrated tool storage cabinets
Multiple sets of bending tools (punches/dies)
Ergonomic foot switch
XPT Clamping
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
