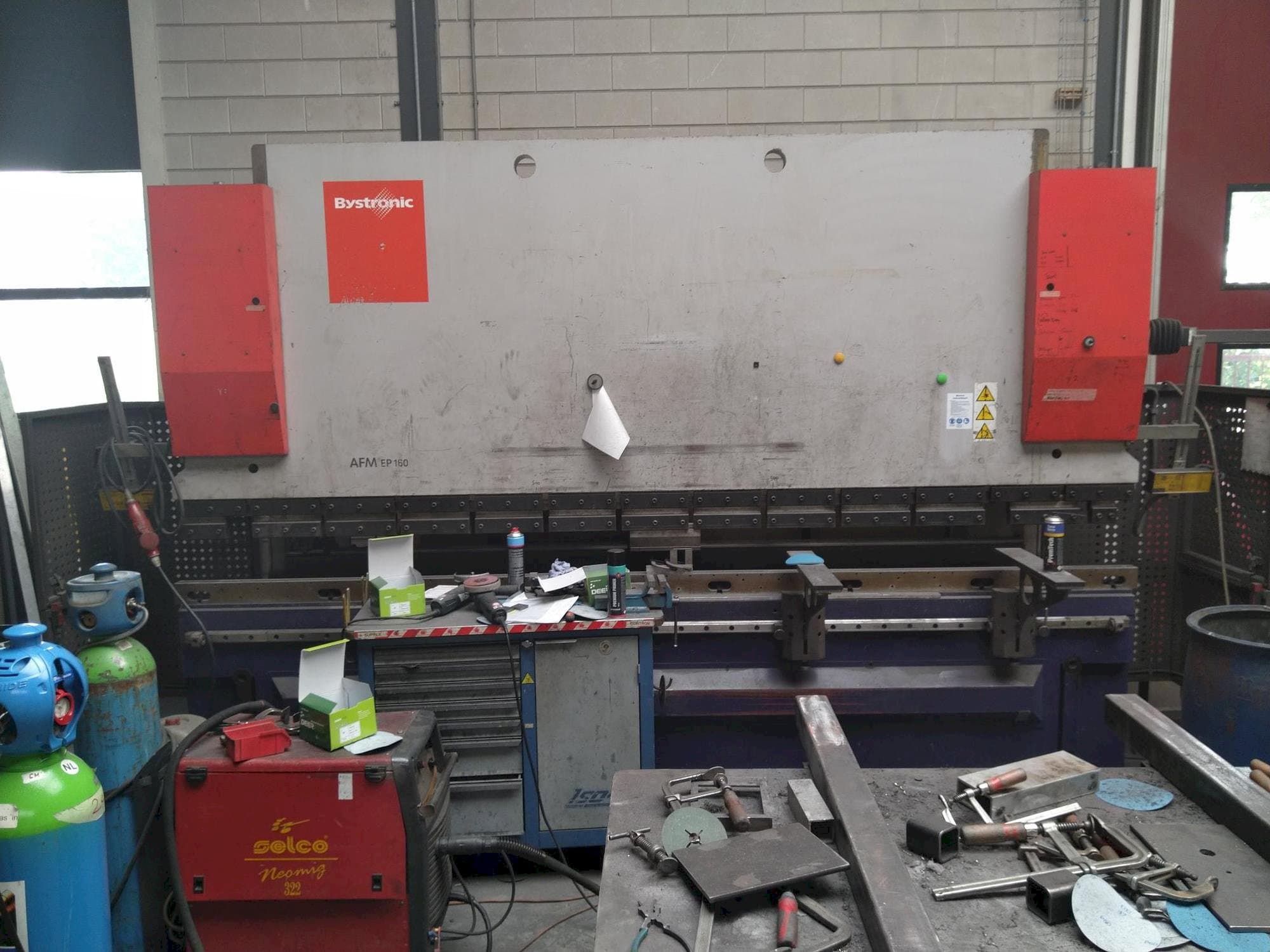

Front view of Bystronic EP40-160 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Bystronic EP40-160

Bystronic - EP40-160NL-BEN-BYS-2008-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Bystronic EP40-160 Bending machine

Show in original language

This Bystronic EP40-160 Bending machine was made in the year 2008 in China. The machine has a pressing force of 1600 kN and a bending length of 4000 mm.

Overview

brand: Bystronic
year: 2008
MODEL: EP40-160
application type: Bending
Location: Netherlands
machine type: Press Brake
availability: Sold

Technical Information - Bystronic EP40-160

General Data

Measurements width: 5500 mm
Measurements depth: 2750 mm
Measurements height: 2680 mm
Machine weight: 9800 kg

Main drive

Pressing force: 1600 kN
Bending length: 4000 mm
Stroke: 200 mm

Movement

X-AXIS Movement: 600 mm

Table

Outer length: 4050 mm
Outer width: 60 mm
Distance between: 3400 mm

Additional equipment

- Including automatic (hydraulic) crowning
- Includes 1 set of tools
- Including automatic X and R backgauge axis

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
