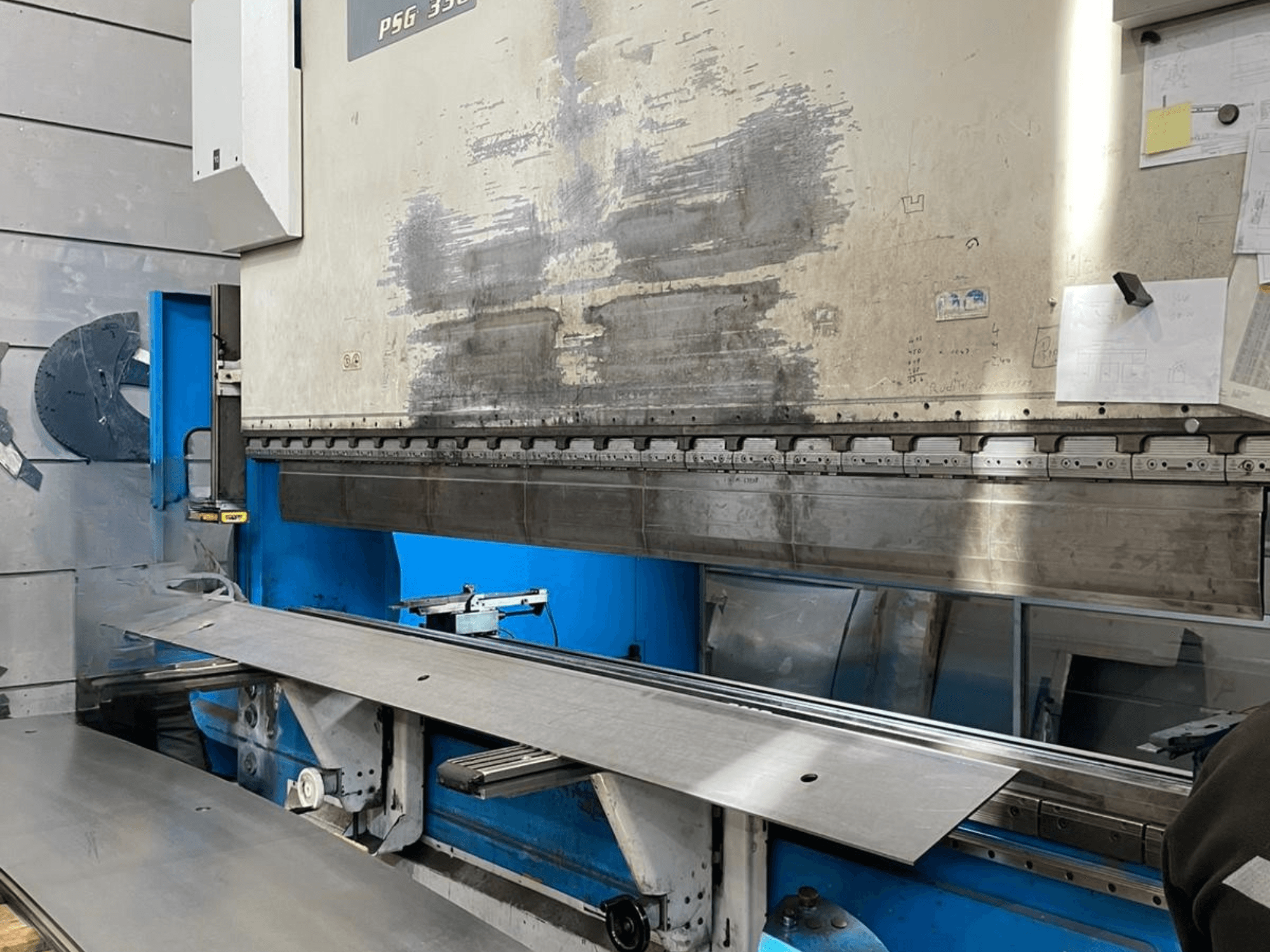

This 6-axis GASPARINI PSG 330/4000 Variante C was manufactured in 2007. It features a bending force of 330 tons and a useful bending length of 4100 mm. The machine includes a stroke of 400 mm and an X-axis travel of 800 mm. If you are looking to get high-quality bending capabilities, consider the GASPARINI PSG 330/4000 Variante C press brake we have for sale. Contact us for further details.
Overview
- brand: GASPARINI
- year: 2007
- MODEL: PSG 330/4000 Variante C
- production hours: 20700
- application type: Bending
- Location: Austria
- machine type: Press Brake
- control unit brand: DELEM
Technical Information - GASPARINI PSG 330/4000 Variante C
Control Unit
- Control Brand: DELEM
- Control Model: DA-66W
Dimensions
- Machine Weight: 24000 kg
Movement
- Number of Axes: 6
- X-axis Travel: 800 mm
Technical Specification
- Bending Length: 4100 mm
- Pressing Force: 3300 Kn
Additional Information
- Distance Between Uprights: 3600 mm
- Stroke: 400 mm
- Installation Height: 600 mm
- Throat: 500 mm
- Approach Speed: 0 - 200 mm/sek
- Return Speed: 0 - 125 mm/sek
- Working Speed: 0 - 8.5 mm/sek
- X-Axis Speed: 300 mm/s
- X-Axis Accuracy: ±0.05 mm
- R-Axis Stroke: 250 mm
- R-Axis Speed: 160 mm/s
- R-Axis Accuracy: ±0.1 mm
- Z-Axis Speed (Option): 1000 mm/s
- Z-Axis Accuracy (Option): ±0.25 mm
- Z-Axis Repeatability (Option): ±0.15 mm
- Motor Power: 30 kW
- Oil Tank Capacity: 420 L
- Recommended Hydraulic Oil: Shell Tellus Oil TX 46
- Machine Weight: ca. 24 Ton
- Table Width: 90 mm
- Working Height: 965 mm
- Hydraulic Components: Rexroth
- Electrical Components: Telemecanique
- Pneumatic Components: SMC
- Control Unit CNC: Delem DA-66W
- Safety System: Nuova Elettronica DFS Laser Beam - RX (Type 4 Safety Device)
- Power Supply: 400V / 50Hz
- Machine hours: 20,700 / 2,000,000 strokes
- CNC controlled Z1-Z2-Z5 with 6-axis control DA - 66 W
- Tool holder with upper and lower jaw clamping system
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
