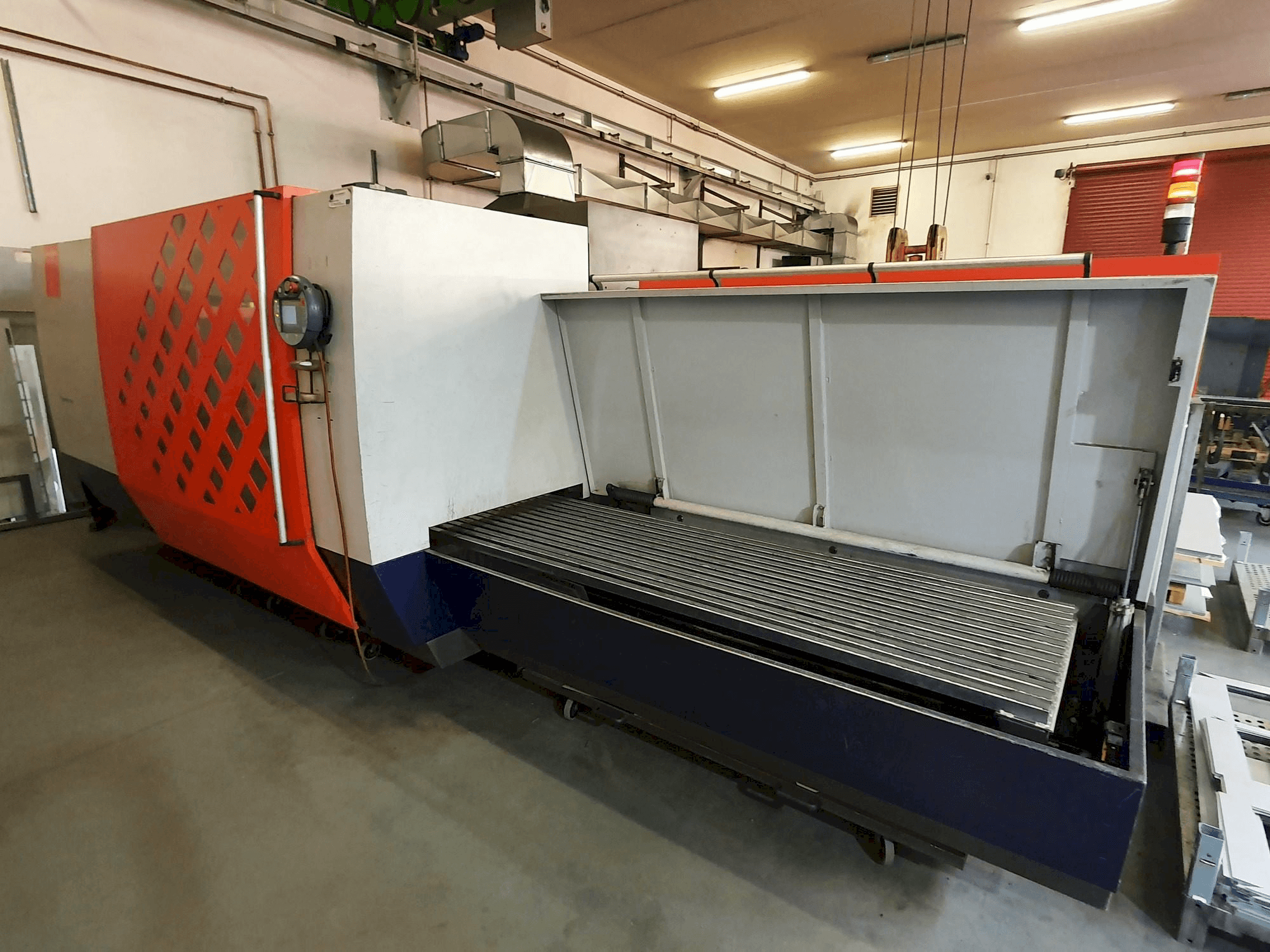

Front view of Bystronic ByVention 3015 machine
Front view of Bystronic ByVention 3015 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

Bystronic - ByVention 3015PL-LAS-BYS-2007-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Bystronic ByVention 3015 2D Laser CO2 Cuting machine was manufactured in the year 2007 in Switzerland. It has a record of 33398 working hours of which 18259 are laser hours. This machine can work with a CO2 laser power 2.2 kW and counts with a ByLaser 2200 laser type. Machine is in very good working condition.

Overview

  • brand: Bystronic
  • year: 2007
  • MODEL: ByVention 3015
  • production hours: 33398
  • application type: Cutting
  • Location: Poland
  • machine type: CO2 Laser Cutting Machine
  • availability: Sold

Technical Information - Bystronic ByVention 3015

General Data

  • Measurements width: 6250 mm
  • Measurements depth: 6000 mm
  • Measurements height: 2150 mm
  • Machine weight: 13500 kg

Main drive

  • Laserpower: 2.2 kW
  • Laser type: ByLaser 2200

Movement

  • X-AXIS Movement: 1562 mm
  • Y-AXIS Movement: 772 mm
  • Z-AXIS Movement: 100 mm

Table

  • Outer length: 3000 mm
  • Outer width: 1500 mm

Max Material thickness

  • Steel: 8 mm
  • Stainless steel: 6 mm
  • Aluminum: 4 mm

Media

  • Main electronic connection: 3 x 400V / 50 Hz
  • Power consumption: 23.5 kVA

Additional Information

    Machine Benefits

    • Qualitative Machine Benefits:
      • - Production hours: 18259h
      • - Machine in very good working condition, ready for tests.
      • - Full documentation available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
