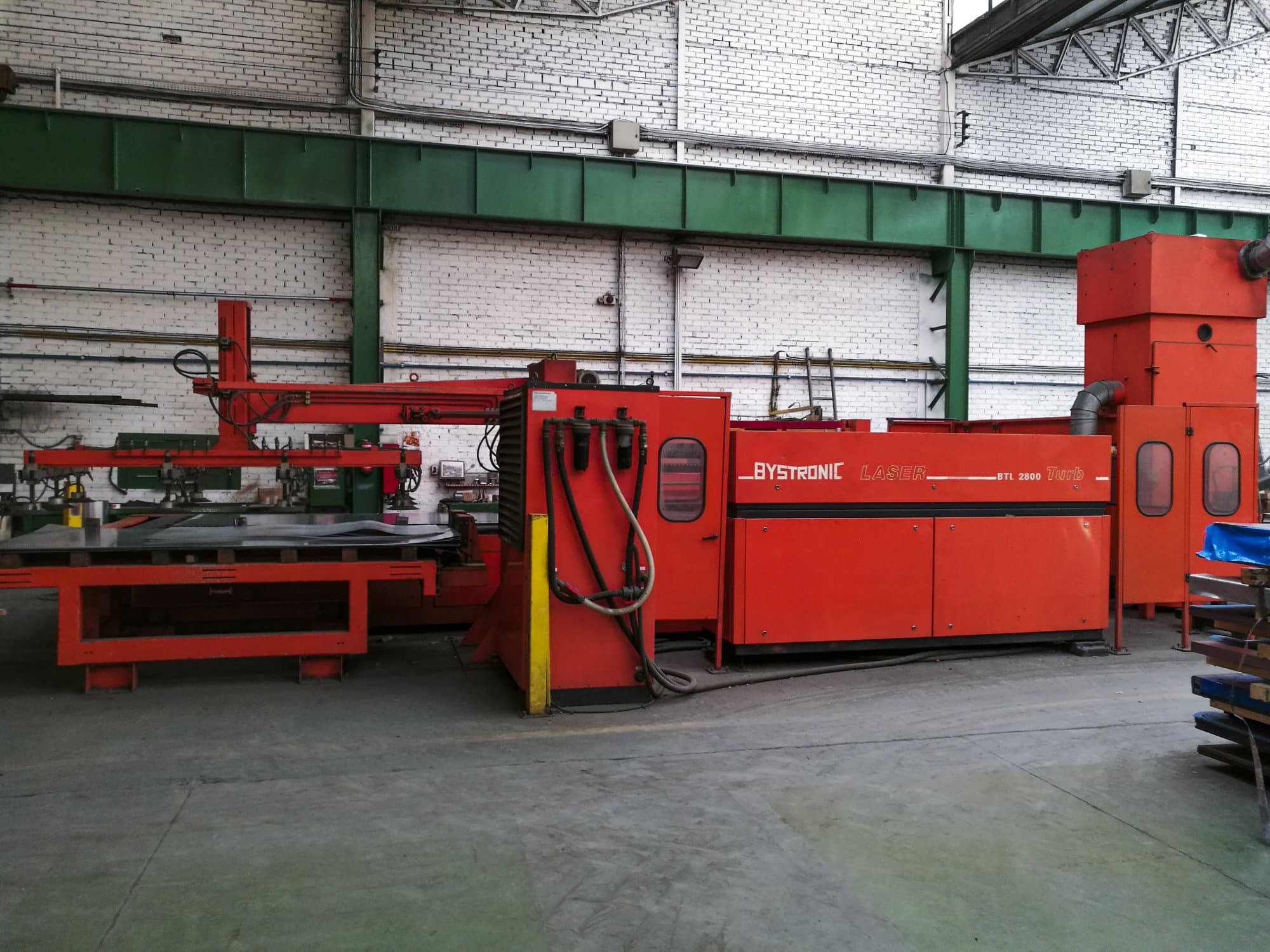

Working room of Bystronic Bystar 3015 BTL 2800 Machine
Working room of Bystronic Bystar 3015 BTL 2800 Machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

Bystronic - Bystar 3015 BTL 2800ES-LAS-BYS-1995-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Bystronic Bystar 3015 BTL 2800 Laser Cutting Machine was built in 1995 and has a production record of 83000 hours. This machine excels in cutting thin sheets, for which it is considered a top tier choice, as well as its ability to cutting pieces of bigger sizes and tubes. The Bystronic also includes an additional tension stabilizer and a sheet loader for automatic feeding.

Overview

  • brand: Bystronic
  • year: 1995
  • MODEL: Bystar 3015 BTL 2800
  • production hours: 83000
  • application type: Cutting
  • Location: Spain
  • machine type: CO2 Laser Cutting Machine

Technical Information - Bystronic Bystar 3015 BTL 2800

General Data

  • Measurements width: 105000 mm
  • Measurements depth: 7600 mm
  • Machine weight: 20092 kg

Main drive

  • Laserpower: 2.8 kW

Movement

  • X-AXIS Movement: 3048 mm
  • X-AXIS Working Feed: 50 m/mm
  • X-AXIS Rapid traverse: 140 m/mm
  • Y-AXIS Movement: 1524 mm
  • Y-AXIS Working Feed: 50 m/mm
  • Y-AXIS Rapid traverse: 140 m/mm
  • Z-AXIS Movement: 70 mm

Max Material thickness

  • Steel: 12 mm
  • Stainless steel: 10 mm

Media

  • Main electronic connection: 23.5 kVA
  • Air pressure: 6 bar
  • He consumption: 27 NL/h
  • CO2 consumption: 2 NL/h
  • N2 consumption: 12 NL/h

    Additional equipment

    • - Tension stabilizer applied to the machine
    • - Sheet loader

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
