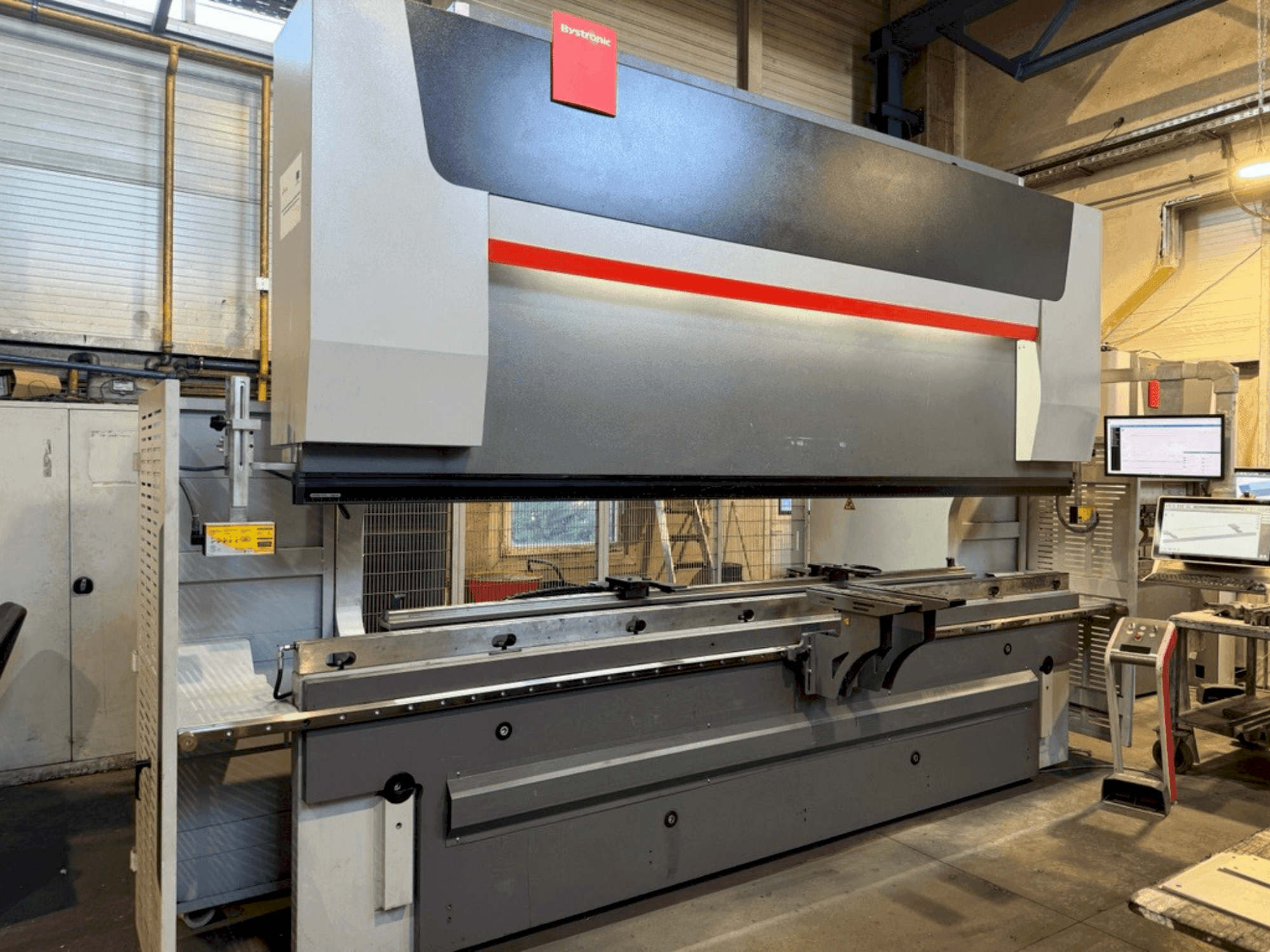

Front view of Bystronic ByBend Smart 300/4100  machine

Bystronic - ByBend Smart 300/4100HR-BEN-BYS-2022-00001

Rs. 16,075,700
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis Bystronic ByBend Smart 300/4100 press brake was manufactured in 2022. It features a bending length of 4100 mm, a tonnage of 3000 KN, and a maximum back gauge range of 850 mm. With a main motor power of 22 kW and a weight of 20 tons, this machine offers robust performance for precise bending operations. Ideal for those looking to buy this Bystronic ByBend Smart 300/4100 press brake. Contact us for further details regarding this press brake.

Overview

  • brand: Bystronic
  • year: 2022
  • MODEL: ByBend Smart 300/4100
  • production hours: 1609
  • application type: Bending & Punching
  • Location: Croatia
  • machine type: Press Brake
  • availability: Immediately

Technical Information - Bystronic ByBend Smart 300/4100

General Data

  • Measurements width: 2060 mm
  • Measurements depth: 4950 mm
  • Measurements height: 3130 mm
  • Machine weight: 20000 kg

Main drive

  • Pressing force: 3000 kN
  • Bending length: 4100 mm
  • Main motor power: 22 kW
  • Stroke: 300 mm
  • Number of axis: 4

Movement

  • X-AXIS Movement: 600 mm
  • X-AXIS Rapid traverse: 600 mm/s
  • Z-AXIS Movement: 2800 mm
  • Z-AXIS Rapid traverse: 1000 mm/s
  • R-AXIS Movement: 150 mm
  • R-AXIS Rapid traverse: 200 mm/s

Table

  • Outer width: 60 mm

    Additional equipment

    • - Open Height [D]: 580 mm
    • - Distance Between Side Frames: 3420 mm
    • - Throat [T]: 500 mm
    • - Max. Back Gauge Range: 850 mm
    • - Oil Capacity: 425 L

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Y-axis approach speed: 100 mm/s
        • - Y-axis working speed: 9 mm/s
        • - Advanced axis control with high accuracy and speed
        • - Cycle counter: 35172 h

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
