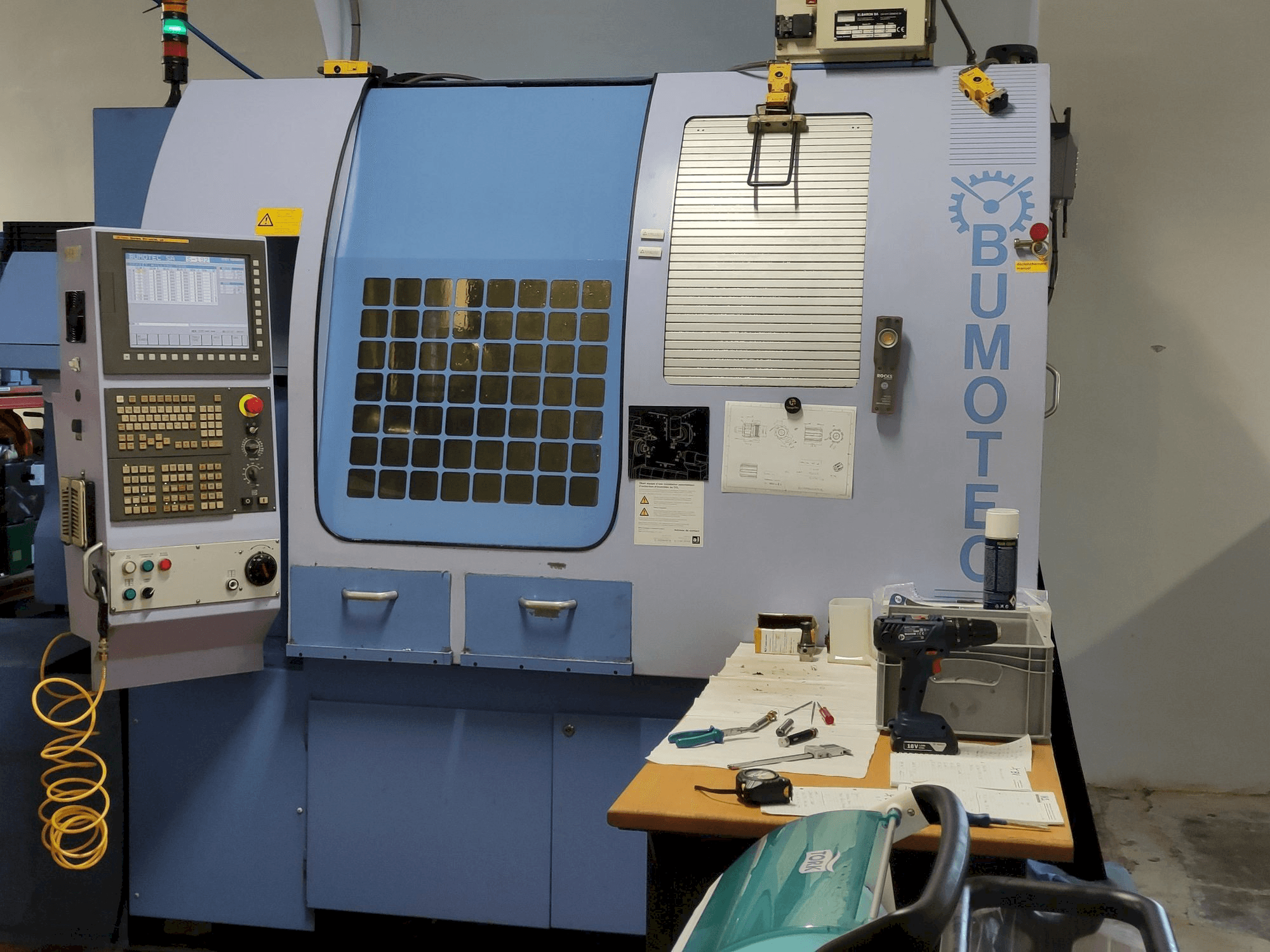

Bumotec S-192FT lathe machine

Show in original language

This Bumotec S-192FT lathe machine was manufactured in 2006 in Switzerland. The 7-axis machine is operated through a Fanuc Series 31 control unit and has 7174 working hours. This machine has 2 spindles, the main one can work with a spindle speed up to 6000 rpm, and the sub-spindle can work with a spindle speed up to 5000 rpm. The machine is in perfect condition.

Overview

brand: Bumotec
year: 2006
MODEL: S-192FT
production hours: 7174
application type: Turning
Location: Czech Republic
machine type: Swiss Type Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Bumotec S-192FT

General Data

Measurements width: 2548 mm
Measurements depth: 1922 mm
Measurements height: 2686 mm
Machine weight: 6500 kg

Control Unit

Model: Series 31
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 6000 1/MIN
Spindle motor power: 14 kW
Number of axis: 7

Movement

X-AXIS Movement: 200 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 650 mm

Tools

Slots in storage: 30
Type of tool holder: HSK 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - B-axis milling head speed 30. 000 rpm, power 10 kw
- - B-axis tiltable + 25° / - 115°, torque 84 / 150 nm
- - Main spindle bar passage 42 mm
- - Sub-spindle speed 5000 rpm, power 9. 7 kw
Qualitative Machine Benefits:
- - Good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
