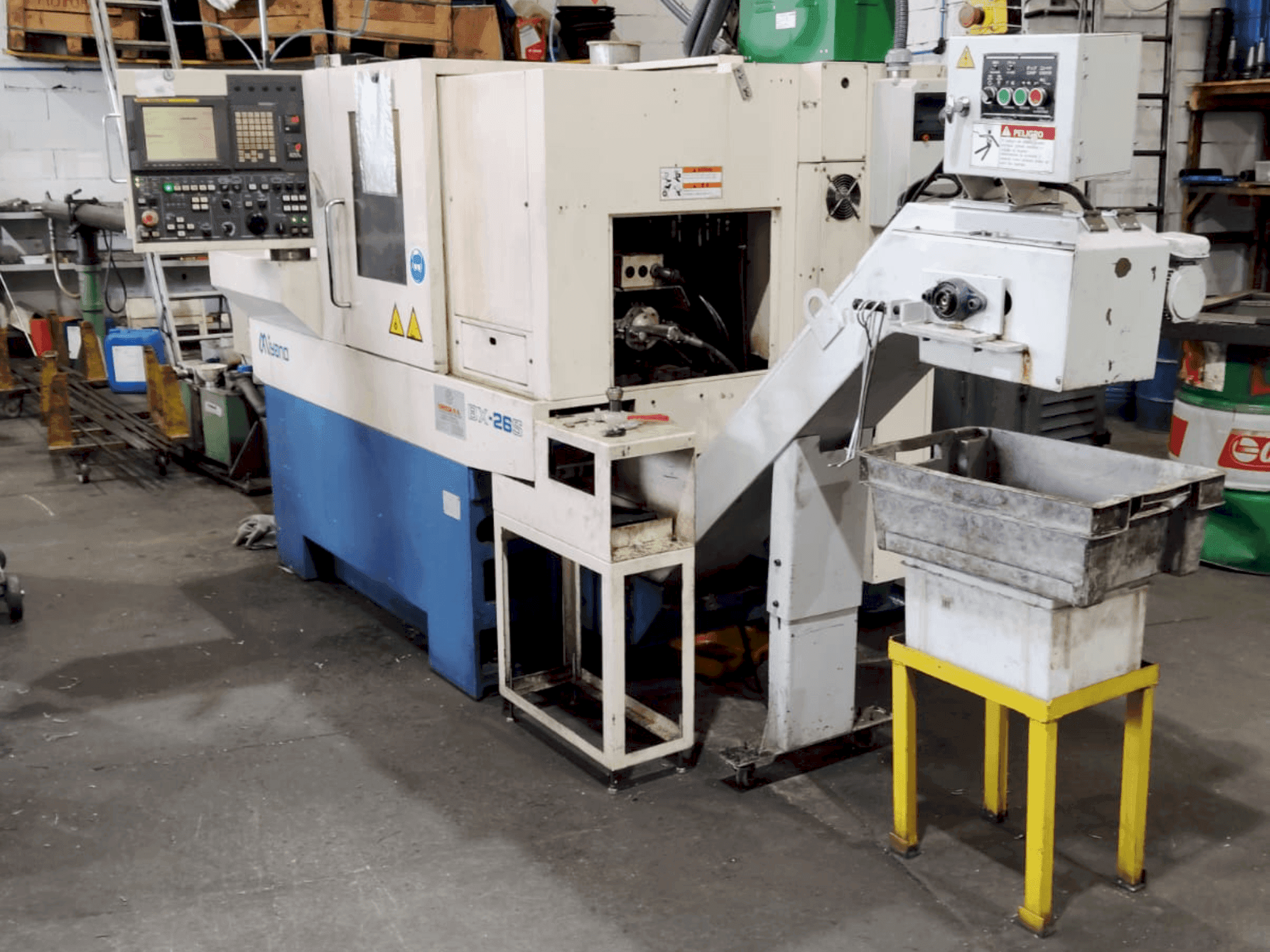

Miyano - BX-26SES-TUR-MIY-2010-00001

Machine Benefits

Technical Machine Benefits

• Maximum blank diameter: Ø26 mm (Ø20 mm for bx-20s)
• Maximum working length: 330 mm
• Bed type: flat

Extra Information

Turret Turret Type: Linear Total Number of Tools: 18 Rotating Tools (Slide 1 / Slide 2): 6 / 4 Flat Tools (Slide 1 / Slide 2): 4 / 4 Tool Size: Slide No.1: Ø16 mm Slide No.2: Ø16 mm Tapping Capacity (L-SP / SP): M8 Drilling Capacity (L-SP): Ø12 mm Injection Unit Chuck Sleeve Type: AR-16 Chuck Sleeve: AR-16 Clamping Force Thrust Force (Z1 / Z2 L-SP and R-SP): 3325 N Other Axes: 1847 N Movement Slide No.1 Travels: X1: 135 mm Y1: 260 mm Z1: 70 mm Slide No.2 Travels: X2: 215 mm Y2: 75 mm Z2: 180 mm Media Tank Capacities: Hydraulic: 10 L Coolant: 140 L Electrical Specifications: Power Supply Capacity: 20 KVA Voltage: AC200/220V Frequency: 50/60 Hz Required Air Pressure: 0.5 MPa Fuse Capacity: 40 A Control Unit Numerical Control (NC) System: FANUC 18i-TB Controlled Axes: 6 axes (X1, Z1, Y1, C1, X2, Z2, Y2, C2) Simultaneous Interpolation: 4 axes Commands: G00, G01, G02/G03, G32, G04, G98/G99 Special Functions: Tool compensation, repetitive cycles, macro programming, backlash compensation Display: 9.5" CRT Operation Panel: Flat keyboard Input/Output: RS-232-C Electric Motors: Spindles (L-SP / R-SP): 3.7 / 2.2 kW Slides (X1, Y1, Z1, Y2, X2, Z2): 0.5 – 0.75 kW Rotating Tool: 0.5 kW Hydraulic Motor: 0.75 kW Coolant Pump: 0.2 kW High-Pressure Coolant Pump: 0.821 / 1.349 kW
