Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Brother - SPEEDIO M140X2KR-MIL-BRO-2018-00001
Do you have further questions? Contact us.

Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com

- GINDUMAC
- Products
- Machine Tools
- Brother SPEEDIO M140X2

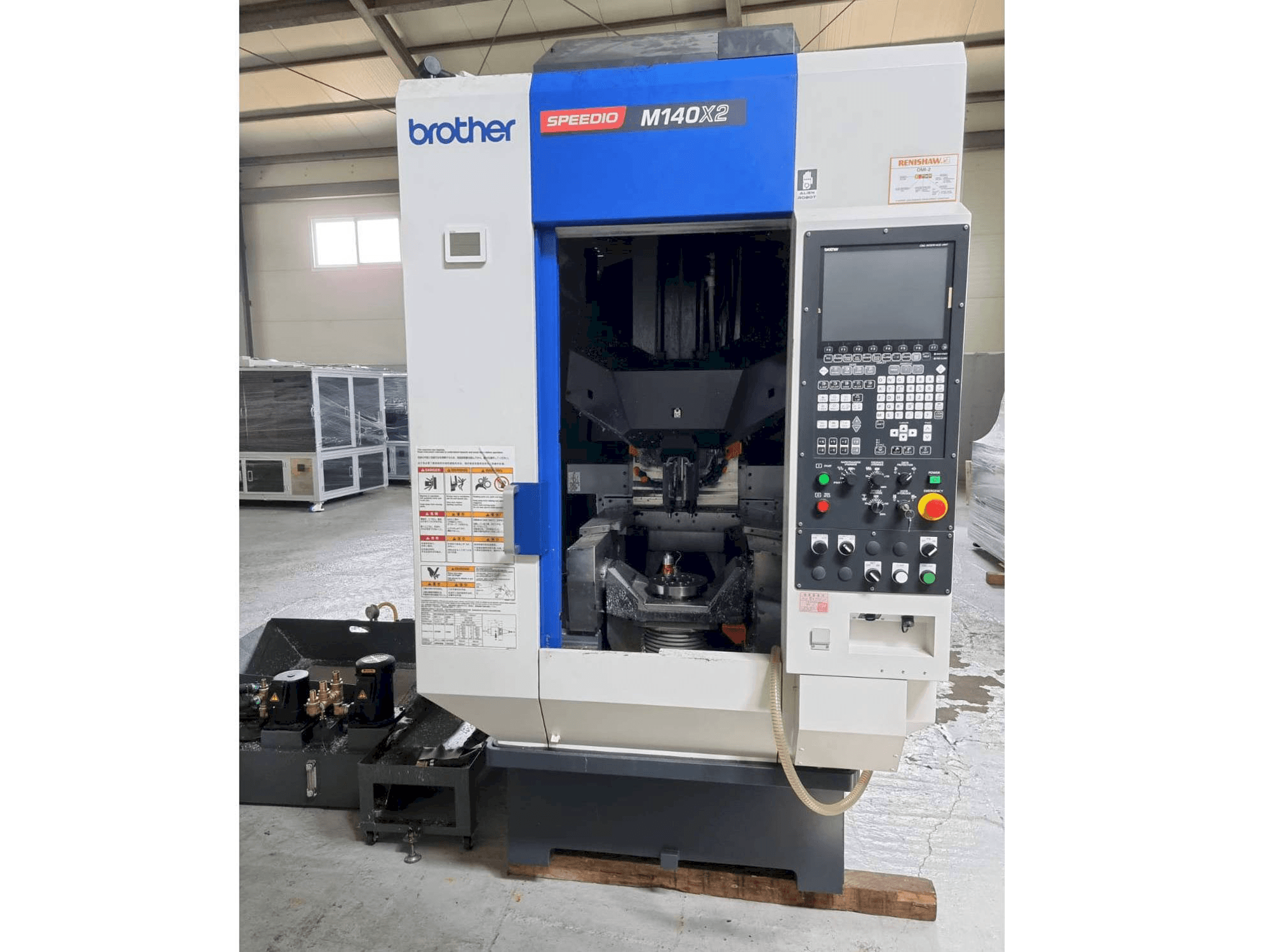

This Brother SPEEDIO M140X2 Vertical Machining Center from 2018 was manufactured in Japan. It has been working for 1194 hours. It is operated through a brother CNC INTERFACE control unit. This machine can operate with a spindle speed up to 10000 rpm. A Renishaw LTS is included.
Overview
- brand: Brother
- year: 2018
- MODEL: SPEEDIO M140X2
- production hours: 1194
- application type: Milling
- Location: South Korea
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: BROTHER
Technical Information - Brother SPEEDIO M140X2
General Data
- Machine weight: 2710 KG
Control Unit
- Model: CNC INTERFACE UNIT
- Brand: BROTHER
Main drive
- Spindle speed range: 10000 1/MIN
- Spindle motor power: 6.7 kw
Movement
- X-AXIS Movement: 200 MM
- Y-AXIS Movement: 440 MM
- Z-AXIS Movement: 305 MM
- A-AXIS Movement: 120 ~ - 30 mm
Table
- Max distance between vertical spindle and table: 150~455 mm
Tools
- Type of tool holder: BT30
Media
- Main electronic connection: ac 200-230v 50/60 hz
- Power consumption: 9.5 kva
- Chip conveyor: Yes
Additional equipment
- - RENISHAW LTS
Additional Information
- Technical Machine Benefits:
- - Table size: d140
- - Turning spindle 2000 rpm
- - Magazine capacity: 22ea
- - Coolant tank
- - C: 360 mm
- - Tsc 20 bar
- - Spare spindle assy
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Alessandro Martini
Payment Terms
Payment in advance
