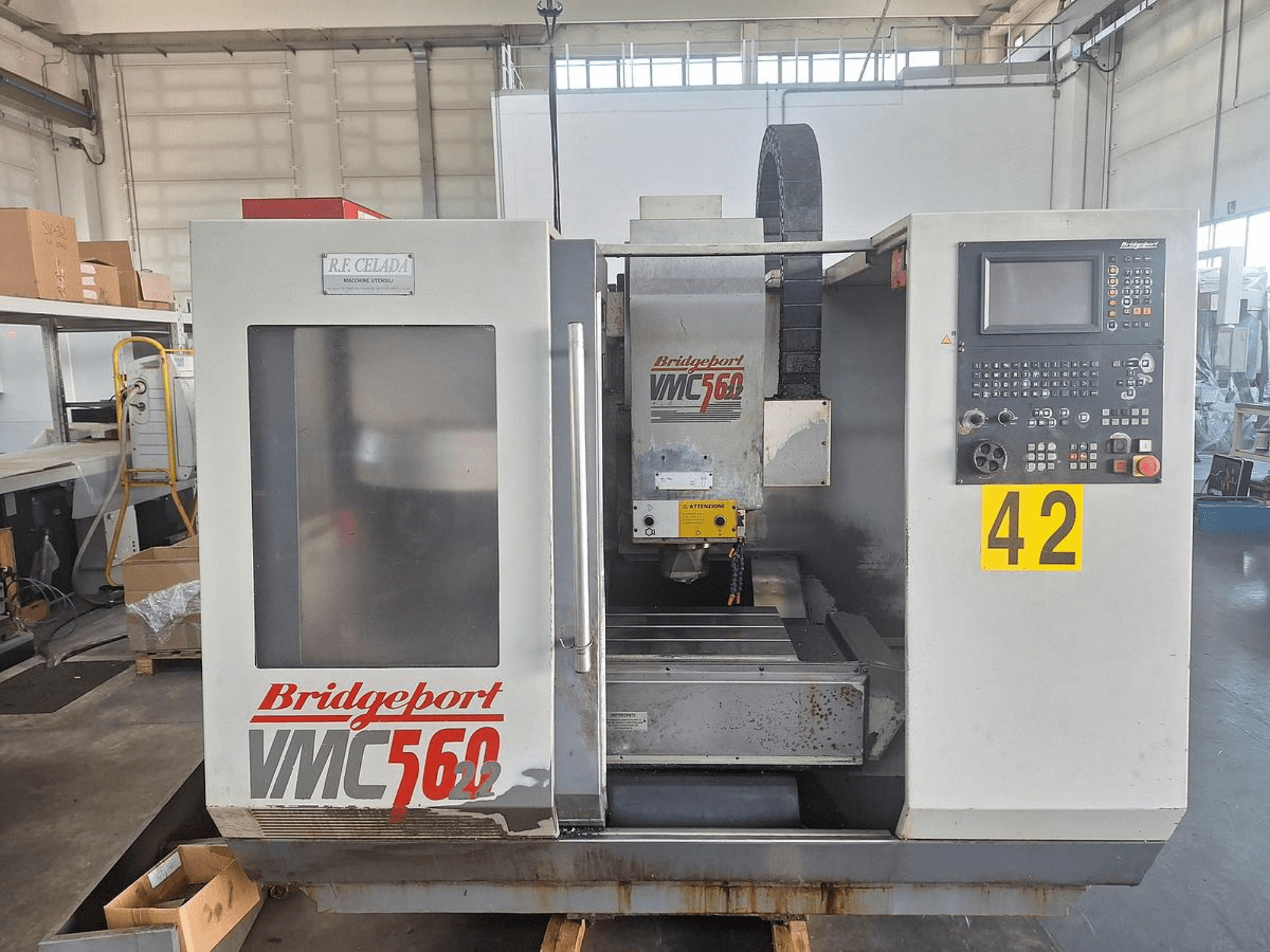

This 3-axis Bridgeport VMC 560/22 was manufactured in 1995. It features an X-axis travel of 560 mm, Y-axis travel of 380 mm, and Z-axis travel of 520 mm. The machine is equipped with a spindle speed of 6,000 rpm and a tool magazine with 22 positions. If you are looking to get high-quality machining capabilities, consider the Bridgeport VMC 560/22 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Bridgeport
- year: 1995
- MODEL: VMC 560/22
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - Bridgeport VMC 560/22
Control Unit
- Control Brand: HEIDENHAIN
Movement
- Number of Axes: 3
- X-axis Travel: 560 mm
- Y-axis Travel: 380 mm
- Z-axis Travel: 520 mm
Technical Specification
- Spindle Power: 7.5 kW
- Spindle Speed: 6000 RPM
Additional Information
Tool taper: BT40
Rapid Traverse: X/Y: 20 m/min; Z: 16 m/min
Outer length: Approx. 840 mm
Outer width: 360 mm
Table load: 500 kg
Number of tool slots: 22
Tool taper: BT40
Max tool length: 250 mm
Maximum tool diameter (adjacent pocket empty): 130 mm
Maximum tool weight: 6 kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
