DAEWOO - ACE V 600 IT-MIL-DAE-1997-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DAEWOO ACE V 600 For Sale | gindumac.com

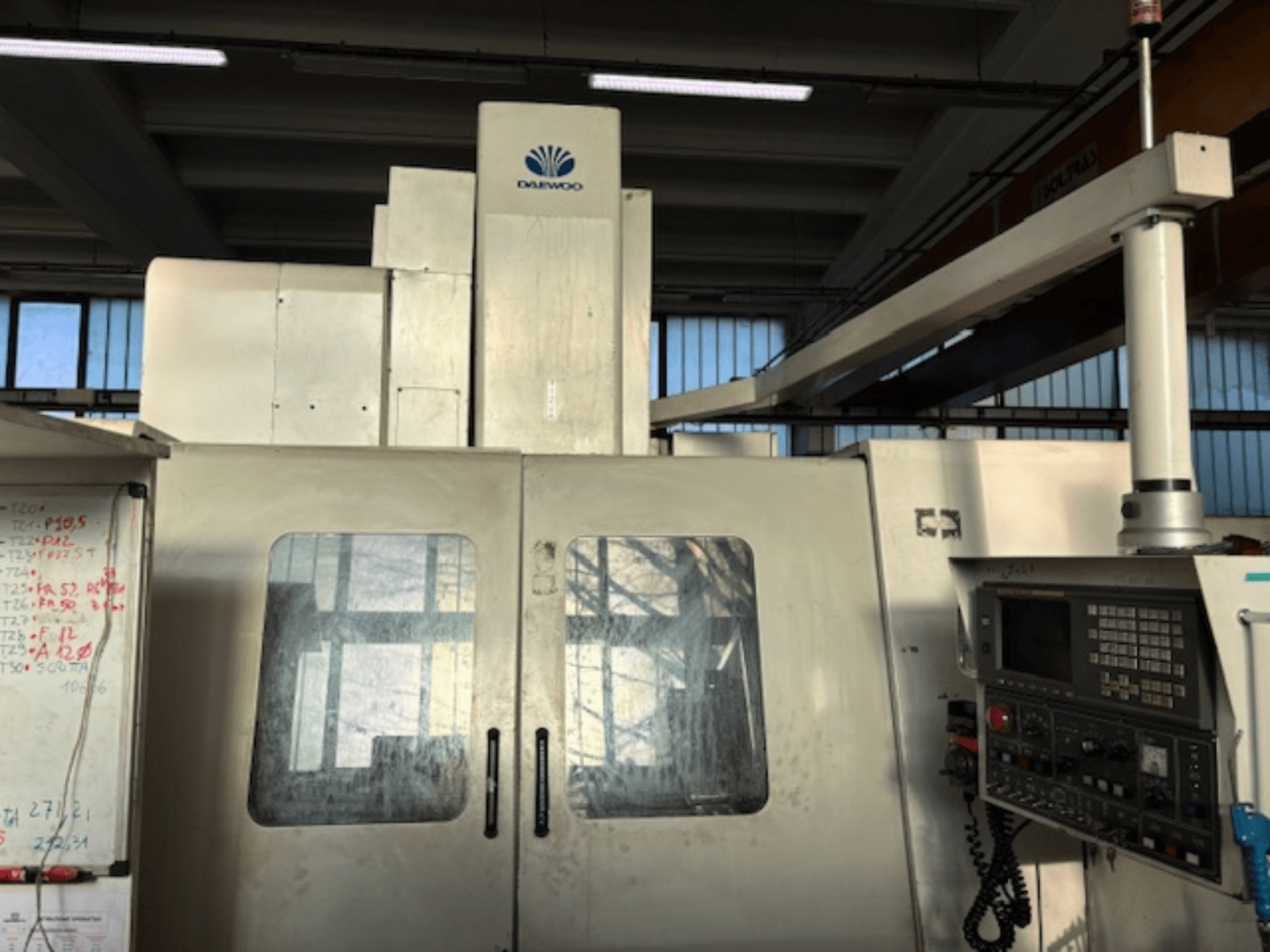

This 3-axis DAEWOO ACE V 600 was manufactured in 1997. It features an impressive X-axis travel of 1,260 mm, Y-axis travel of 650 mm, and Z-axis travel of 560 mm. The machine includes a robust table size of 1,400 x 700 mm and a maximum table load of 1,200 kg. If you are looking to get high-quality machining capabilities, consider the DAEWOO ACE V 600 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: DAEWOO
- year: 1997
- MODEL: ACE V 600
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - DAEWOO ACE V 600
Control Unit
- Control Brand: FANUC
- Control Model: 18M
Dimensions
- Machine Height: 3214 mm
- Machine Length: 3480 mm
- Machine Weight: 12000 kg
- Machine Width: 2980 mm
- Table Load: 1200 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1260 mm
- Y-axis Travel: 650 mm
- Z-axis Travel: 560 mm
Technical Specification
- Spindle Power: 18.5 kW
- Spindle Speed: 4000 RPM
Additional Information
Spindle taper: BT50 / ISO 50
Tool magazine capacity: 40 tools (header mentions 30 tools)
Spindle nose to table distance: 200–770 mm
Maximum workpiece height: 610 mm
Table size: 1,400 × 700 mm
Rapid traverse rate: 20 m/min
Distance from spindle center to column: 680 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
