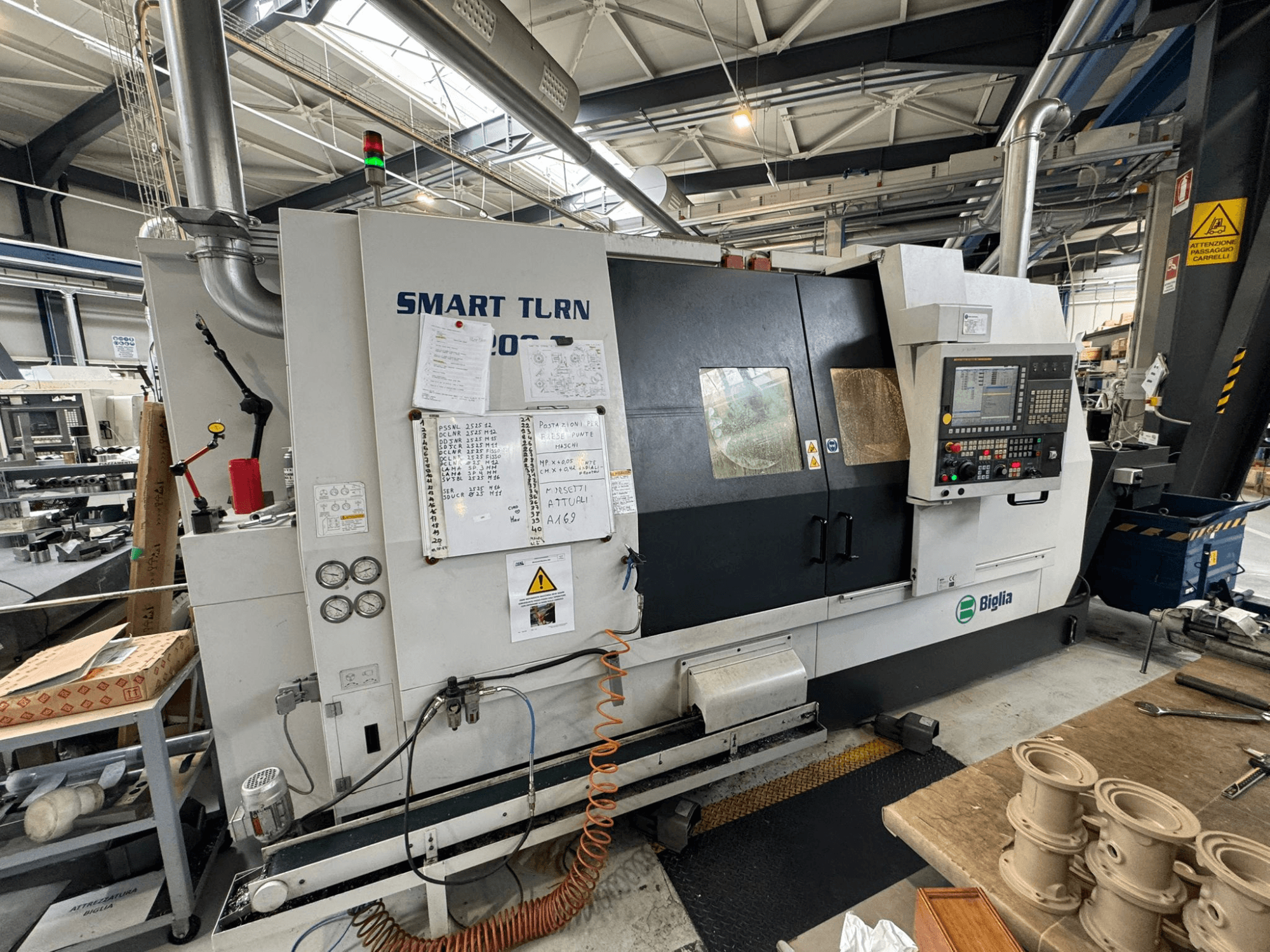

This 5-axis Biglia Smart Turn B1200S was manufactured in 2013. It features a maximum turning diameter of 500 mm and a turning length of 1,280 mm. The machine is equipped with a main spindle that reaches speeds of up to 3,000 rpm and a sub-spindle with a maximum speed of 4,000 rpm. If you are looking to get high-quality turning capabilities, consider the Biglia Smart Turn B1200S turn-mill centre we have for sale. Contact us for further details.
Overview
- brand: Biglia
- year: 2013
- MODEL: Smart Turn B1200S
- application type: Turning
- Location: Italy
- machine type: Turn-Mill Centre
Technical Information - Biglia Smart Turn B1200S
Dimensions
- Machine Height: 2574 mm
- Machine Length: 5890 mm
- Machine Weight: 9000 kg
- Machine Width: 2274 mm
Movement
- Number of Axes: 5
- X-axis Travel: 515 mm
- Y-axis Travel: 210 mm
- Z-axis Travel: 1280 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Spindle Power: 38 kW
- Spindle Speed: 3000 RPM
Additional Information
Maximum rotation diameter: 750 mm
Maximum turning diameter: 500 mm
Maximum turning length: 1,280 mm
Main spindle nose: DIN 55026 8"
Main spindle bar capacity: 95 mm
Main spindle motor power: 30 / 38 kW
Main spindle maximum torque: 1,014 Nm
Main spindle chuck: SMW Autoblok 250 BB (250 mm diameter)
Sub-spindle maximum speed: 4,000 rpm
Sub-spindle nose: ASA 6"
Sub-spindle motor power: 30 / 40 kW
Sub-spindle maximum torque: 286 Nm
Sub-spindle W-axis travel: 1,130 mm
Sub-spindle chuck: 250 mm diameter
B-axis milling unit rotation range: 210° (±105°)
B-axis angular positioning accuracy: 0.001°
Milling spindle taper: HSK-A63
Milling spindle maximum speed: 50–8,000 rpm
Tool magazine capacity: 40 stations
Footprint dimensions: 5,890 × 2,274 × 2,574 mm (H), including chip conveyor
Additional equipment
Chip conveyor
Parts unloader arm with front conveyor belt
Tool setter probe
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
