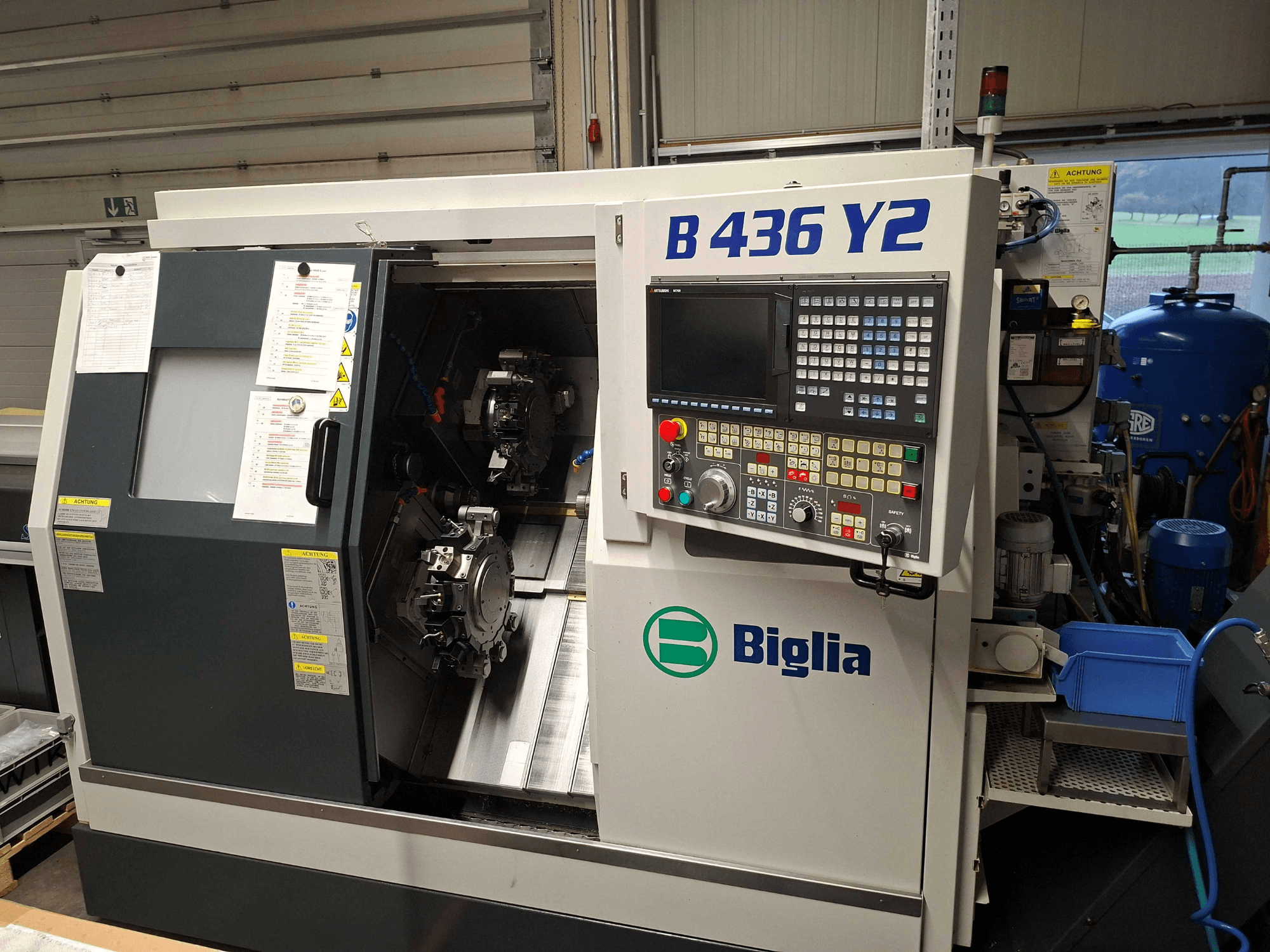

Biglia - B.436-Y2 AT-TUR-BIG-2016-00001

• Max. bar diameter: 36 mm

• Aiming tube: 37.5 mm

• Spindle nose: 115 mm

• Draw tube: 46 mm

• Continuous motor power: 7.5 kW

• Continuous power available from: 1700 rpm

• Max. torque: 62 Nm

• Cylinder thrust area: 75 cm²

• Cylinder stroke (max.) for clamping operation: 26 mm

• Longitudinal slide (Z1 axis)

  • Max. stroke: 300 mm

  • Ball screw diameter/pitch: 25/10 mm

  • Max. rapid traverse: 30 m/min

• Cross slide (X1 axis)

  • Max. stroke: 85 mm

  • Ball screw diameter/pitch: 25/5 mm

  • Max. rapid traverse: 15 m/min

• Vertical slide (Y1 axis)

  • Max. stroke: 50 (+25/-25) mm

  • Ball screw diameter/pitch: 25/5 mm

  • Max. rapid traverse: 15 m/min

• Longitudinal slide (Z2 axis)

  • Max. stroke: 300 mm

  • Ball screw diameter/pitch: 25/10 mm

  • Max. rapid traverse: 30 m/min

• Cross slide (X2 axis)

  • Max. stroke: 85 mm

  • Ball screw diameter/pitch: 25/5 mm

  • Max. rapid traverse: 15 m/min

• Vertical slide (Y2 axis)

  • Max. stroke: 50 (+25/-25) mm

  • Ball screw diameter/pitch: 25/5 mm

  • Max. rapid traverse: 15 m/min

• Connected load: 11 kW / 40 kVA / 70 A / 3 x 400 V

• Operating pressure: 4.8–6.9 bar

• Max. air consumption (supply): 0.10 m³/min (guideline)

• Footprint (with chip conveyor) L x D approx.: 3682 x 1430 mm

• Overall height (max.): 1900 mm

Additional equipment

• High-precision boring bar holder Ø25 mm with internal coolant (Oesterle)

• Precision reducing sleeve D=25/16 (Oesterle)

• Precision reducing sleeve D=25/12 (Oesterle)

• Precision reducing sleeve D=25/06 (Oesterle)

• Collet chuck ER20, shank D=25 mm (Oesterle)

• Precision parting-off holder for parting tool SH26 mm, left-hand, height 70 mm

• Radial drilling and milling head ER20 with internal coolant, 1:1, 6000 rpm (MT)

• Radial drilling and milling head ER20 with internal coolant, 1:2, 12,000 rpm (MT)

• External turning tool holder, 1st side 16x16 / 0088-00004 (Oesterle)

• Angled external turning tool holder, 2nd side 16x16 / 0088-00006 (Oesterle)

• High-pressure pump 40 bar with replaceable filter cartridge

• Coolant gun including its own pump

• Collet chuck

The machine ran with cooling lubricant! Brand: Castrol Type: Hysol MB 50

The tension of the main and counter spindle is hydraulic and adjustable by pressure! A collet chuck with stroke limitation is mounted on the counter spindle! The tool presetting is a measuring probe that is only used to measure the tools! It also functions properly! The cooling lubricant pressure is 7 bar and can be increased to a maximum of 40 bar via M code! The workpiece removal is permanently installed in the machine and can be freely programmed! The bar loading magazine is included! According to the operating instructions, the bar loader can handle 1500 mm
