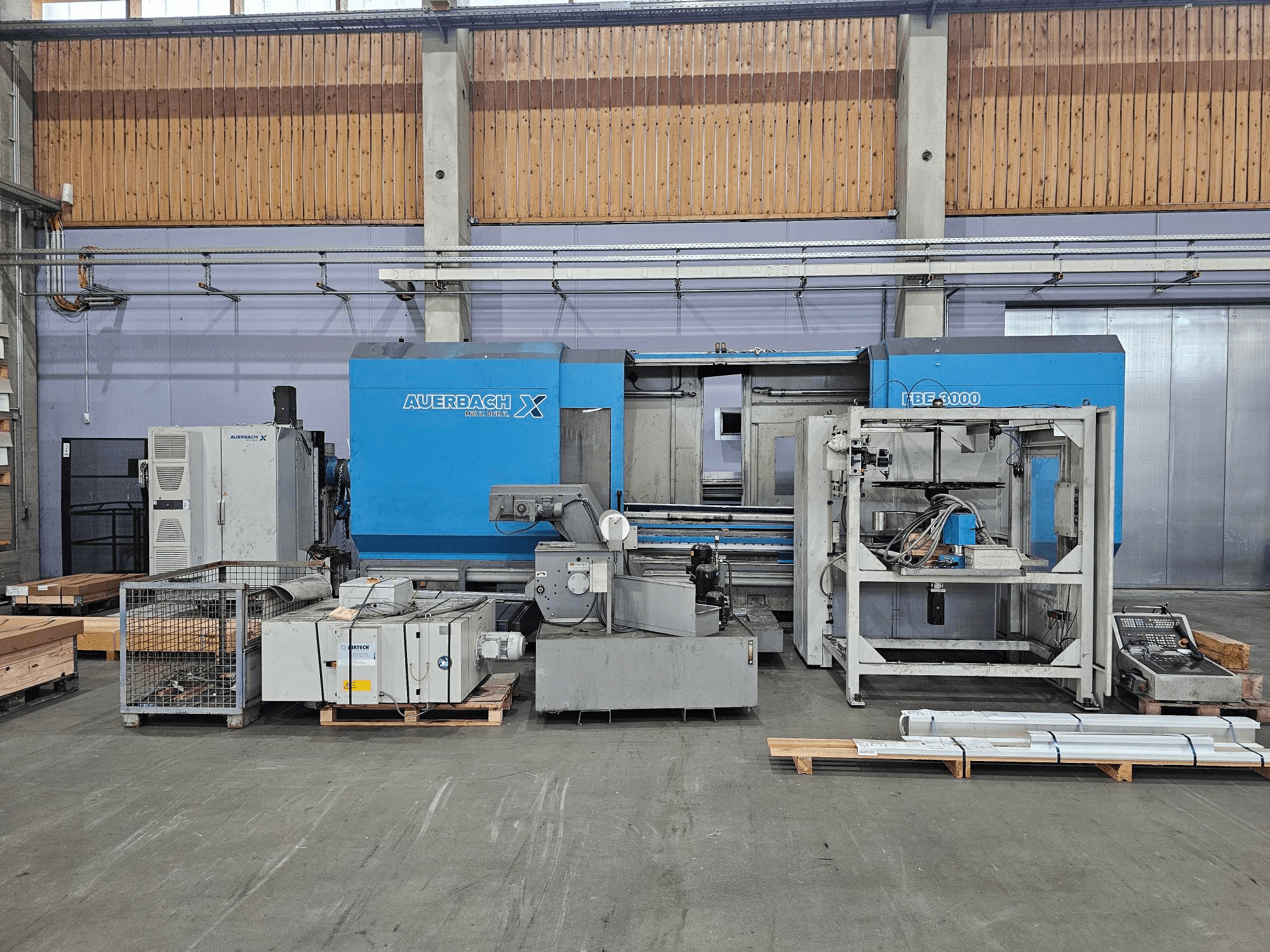

Auerbach - FBE 3000DE-MIL-AUE-2011-00001

• Guides and travels

  • Flat guides on all 3 axes, coated with synthetic material

  • Distance spindle center to table surface: 98–998 mm

• Milling spindle

  • Multi-position milling head KFM 1

  • Tool holder: SK 50 (DIN 69871 Form A, DIN 69872 Form A)

  • Drawbolt tightening torque: 175–180 Nm

  • Nominal drive power (continuous, two ranges): 25 kW

  • Speed range 1: up to 930

  • Speed range 2: up to 4000

  • Max. torque: 800 Nm

  • Gear ratio: 1:5.6

• Table (workpiece side)

  • Clamping surface: 3100 × 800 mm

  • T-slots: 7 × 18 H12

  • Alignment slot: 1 × 18 H8 mm

  • Slot spacing: 100 mm

• Feed drives and measuring

  • Max. feed force Z: 30,000 N

  • Max. feed force X/Y: 20,000 N

  • Feed speed: 1–10 m/min

  • Rapid traverse: 15 m/min

  • Measuring systems: Direct coded length measuring systems

• Hydraulics

  • Operating pressure: 100 bar

Tools/ Accesories visible on the Pictures are Optional!
