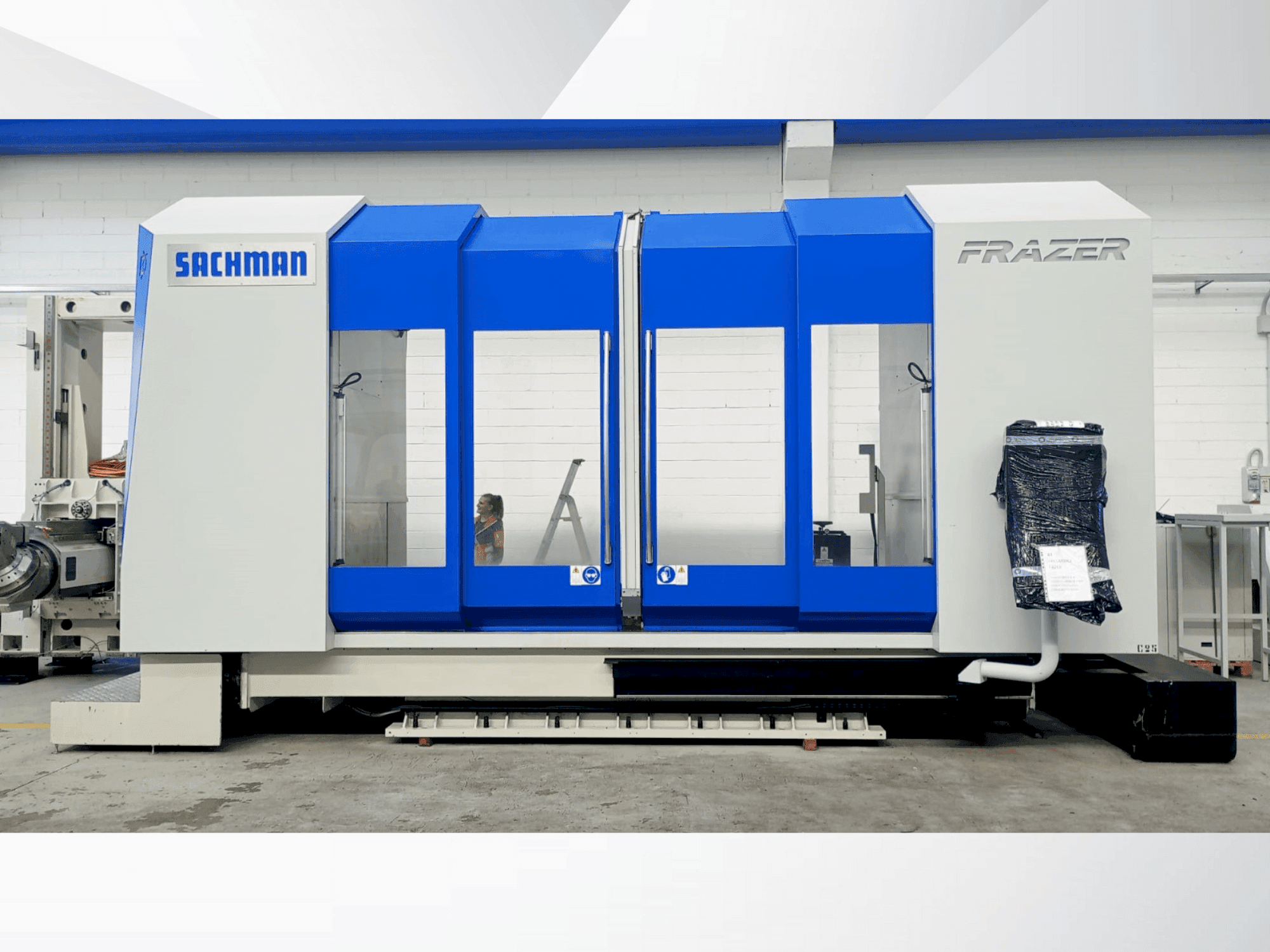

JOBS - FRAZERIT-MIL-JOB-2017-00001

Additional equipment

• Direct hydraulic balancing system (double cylinder)
• Workpiece : Fixed table: 3100x1000 mm
• Table : External low-pressure spindle cooling system
• Disc tool magazine with 24 ISO50 positions, with tool exchanger arm, complete with support and management software located at the end of X-axis travel
• Hydraulic system, power supply, and wiring / 6000 W cooling unit / Hydraulic and electric cabinets (Rittal) on the ground
• Work area lighting; Machine and spindle hour counters / External operator station on the ground – mobile operator panel / C-axis with torque motor
• 2 longitudinal screw chip conveyors + 1 transversal belt conveyor / Safety fences including panels and sliding steel door with Lexan window, compliant with CE safety standards. Upper cover included.
• Dividing wall and software setup for pendulum machining / Renishaw RMP60 digital probe
• BLUM fixed laser presetter station, including Blum measurement cycles + zeroing sphere
• Voltage: 400 Vac / Frequency: 50 Hz

Machine Benefits

Technical Machine Benefits

• Heidenhain itnc 530 hsci cnc, complete with operator panel and 15" screen located on the front side of the machine
• Electrospindle: 33(25) kw - 640(480) nm - 8000 rpm - iso 50
• X-axis transmission with rack and pinion (dual drive), y, z ball screws
• Pressurized optical scales
• X, y, z axis speed up to 35 m/min / x-axis covers with non-walkable telescopic shields
• Maximum thrust x, y, z axis: 10,000 n
• Universal head c with continuous positioning with torque motors / medium-pressure (15 bar) internal spindle coolant with bag filter / air blow-off through external nozzle on the spindle / spray mist tool cooling system external to the spindle
