FPT - DINOIT-MIL-FPT-2002-00002

Rs. 6,784,309
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

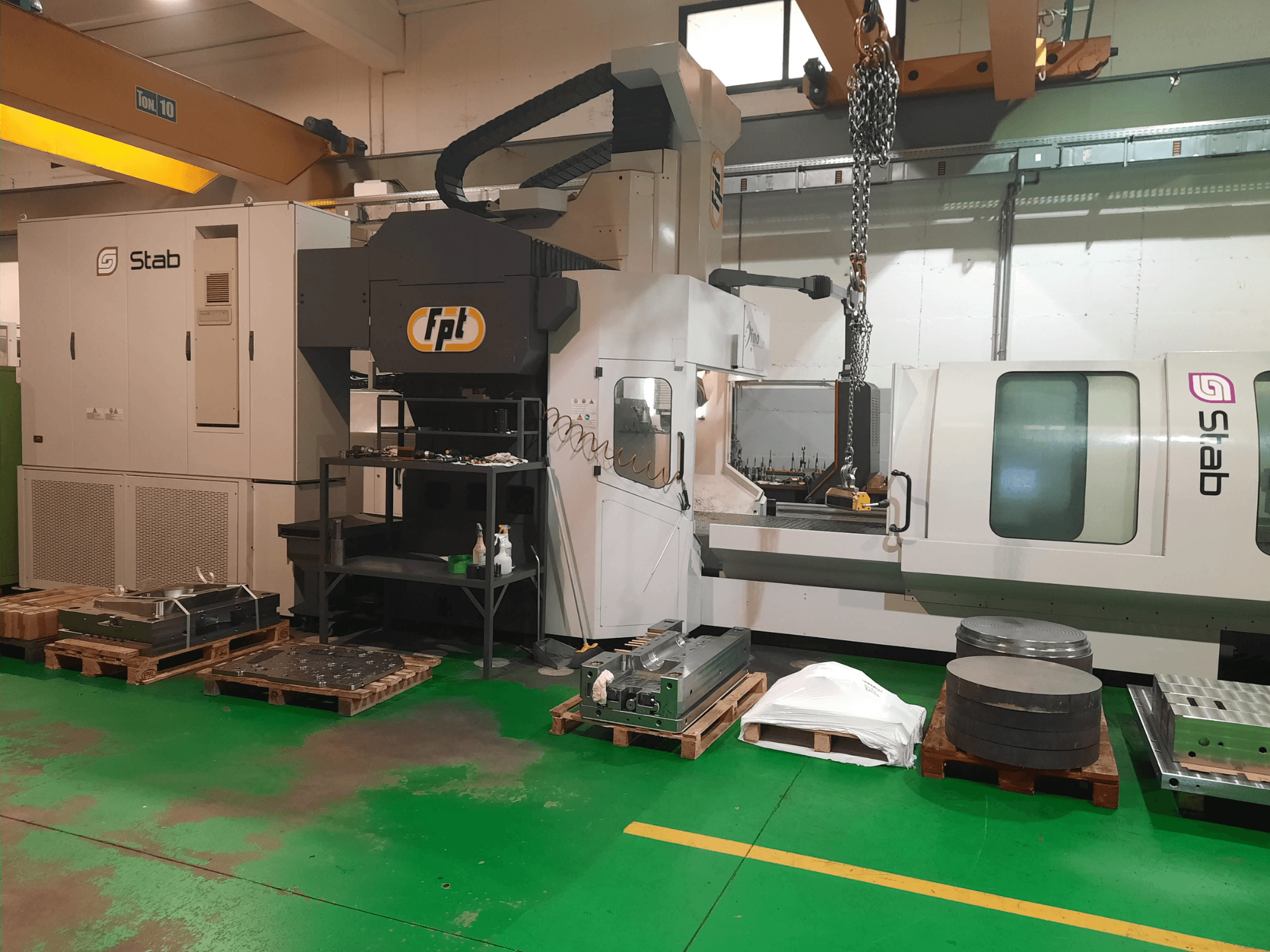

This 4-axis FPT DINO CNC Gantry Milling Machine was manufactured in 2002. It features an impressive X-axis travel of 2,800 mm, Y-axis travel of 1,600 mm, and Z-axis travel of 800 mm. The machine is equipped with an electrospindle capable of speeds up to 18,000 RPM and a robust gantry type cast-iron construction. If you are looking to get high-quality milling capabilities, consider the FPT DINO machine we have for sale. Contact us for further details.

Overview

  • brand: FPT
  • year: 2002
  • MODEL: DINO
  • application type: Milling
  • Location: Italy
  • machine type: Bed Type Milling Machine

Technical Information - FPT DINO

Movement

  • Number of Axes: 4
  • X-axis Travel: 2800 mm
  • Y-axis Travel: 1600 mm
  • Z-axis Travel: 800 mm

Technical Specification

  • Max. Tool Weight: 10 kg
  • Spindle Speed: 18000 RPM

Additional Information

  • Rapid feed rate: 35,000 mm/min

  • Total installed power: 68.7 kW / 93.4 HP

  • Power supply: 400 V, 50 Hz, 116.1 A

  • Machine structure: Gantry type cast-iron construction

  • Spindle: Electrospindle, 5,000 / 10,000 / 15,000 rpm

  • Spindle speed: 18,000 rpm

  • Spindle taper: HSK63

  • Tool magazine capacity: 40 positions

  • Max tool diameter: 70 mm

  • Max tool length: 300 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
