- ➤ Used JOBS THORA RT - 2016 - For Sale | gindumac.com

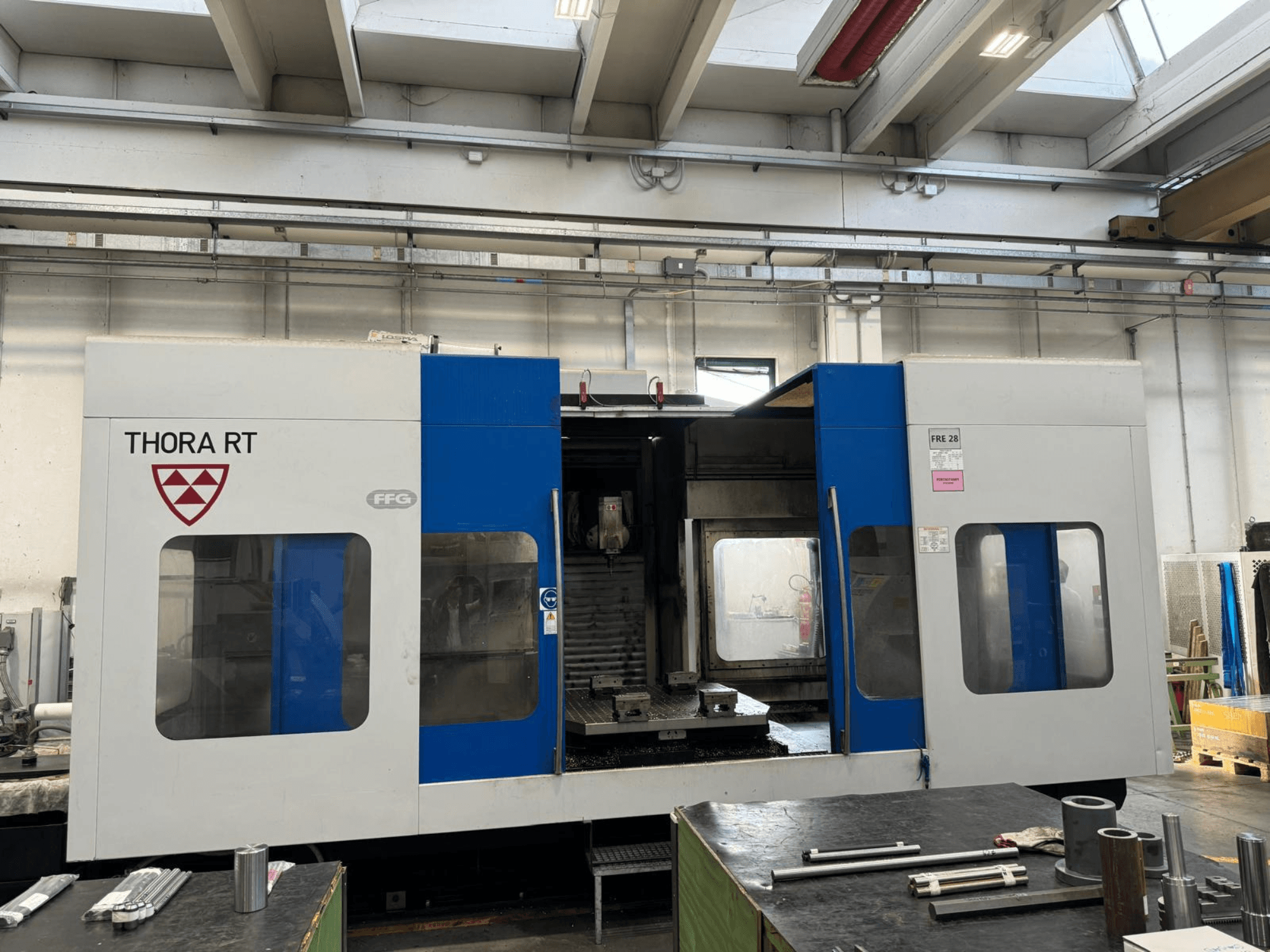

This 3s JOBS THORA RT Bed Type Milling Machine manufactured in 2016 features a robust table measuring 1,200 mm by 1,200 mm, accommodating workpieces up to 5,000 kg. With a spindle speed of 5,000 rpm and a tool magazine capacity of 40 tools, it offers efficient milling capabilities. Consider the opportunity to buy this JOBS THORA RT Bed Type Milling Machine. Contact us for further details.
Overview
- brand: JOBS
- year: 2016
- MODEL: THORA RT
- application type: Milling
- Location: Italy
- machine type: Bed Type Milling Machine
Technical Information - JOBS THORA RT
Movement
- Number of Axes: 3
- X-axis Travel: 2000 mm
- Y-axis Travel: 1200 mm
- Z-axis Travel: 1200 mm
Technical Specification
- Spindle Speed: 5000 RPM
- Taper Size: ISO 50
Additional Information
Table
Length: 1,200 mm
Width: 1,200 mm
Surface: Tapped holes
Maximum workpiece dimensions (L × W × H): 1,600 × 1,600 × 950 mm
Workpiece capacity
Maximum workpiece weight: 5,000 kg
Spindle
Torque (continuous/10 min): 637 Nm
Tooling
Tool magazine capacity: 40 tools
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
