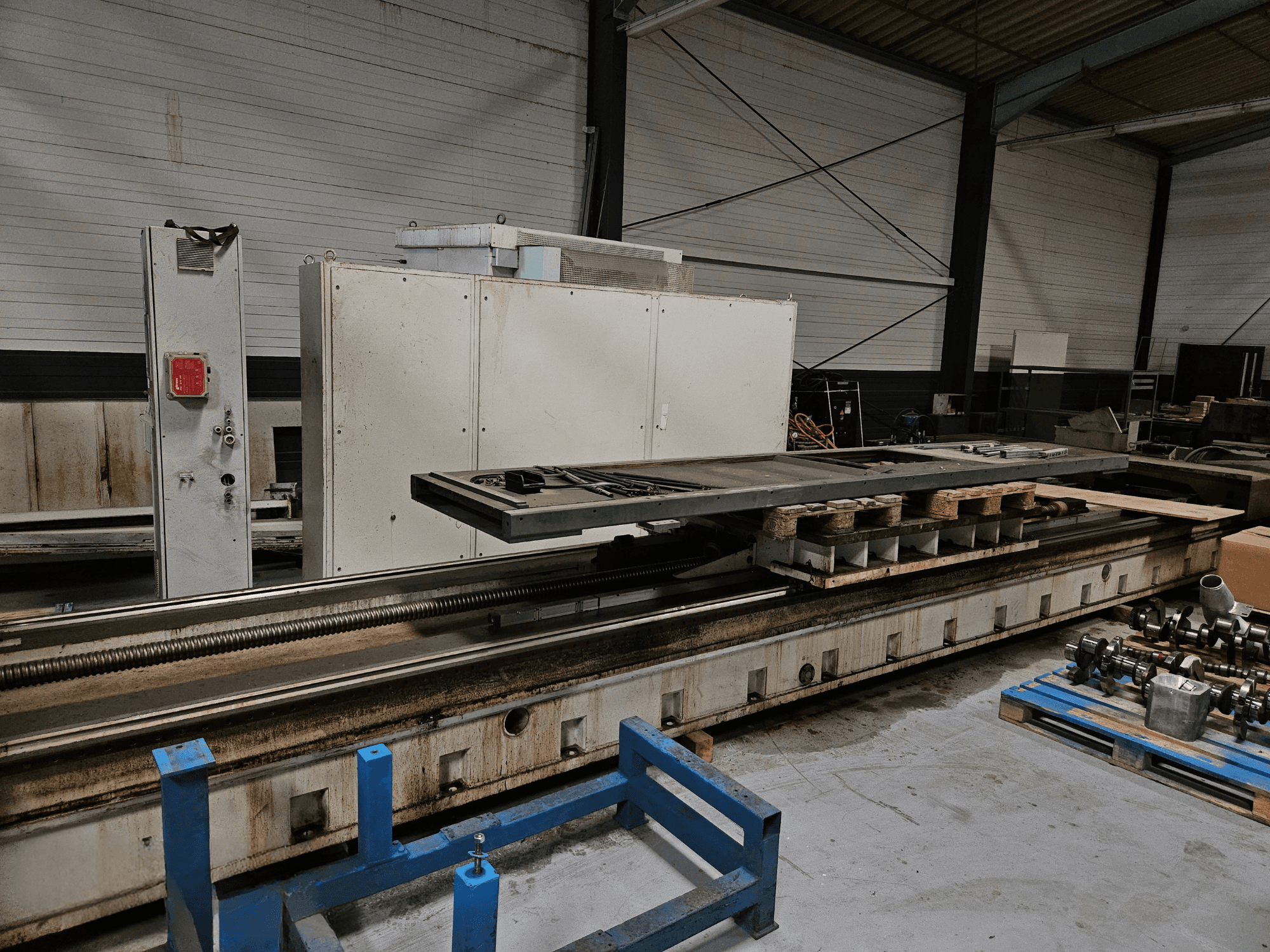

This 5-axis SHW UFZ 6L Bed Type Milling Machine was manufactured in 2008. It features an impressive X-axis travel of 6000 mm, Y-axis travel of 2100 mm, and Z-axis travel of 1600 mm. The machine includes an automatic tool changer with a capacity for 150 tools and a robust clamping plate surface of 3600 x 3750 mm. If you are looking to get high-quality milling capabilities, consider the SHW UFZ 6L machine we have for sale. Contact us for further details.
Overview
- brand: SHW
- year: 2008
- MODEL: UFZ 6L
- application type: Milling
- Location: Germany
- machine type: Bed Type Milling Machine
- control unit brand:
Technical Information - SHW UFZ 6L
Dimensions
- Machine Height: 6450 mm
- Machine Length: 12500 mm
- Machine Weight: 34000 kg
- Machine Width: 11000 mm
Movement
- Number of Axes: 5
- X-axis Travel: 6000 mm
- Y-axis Travel: 2100 mm
- Z-axis Travel: 1600 mm
Technical Specification
- Max. Tool Weight: 25 kg
- Spindle Speed: 4000 RPM
- Taper Size: SK 40
Additional Information
W-axis travel: 1500 mm
Digital feed drives
X-axis: 2–20000 mm/min
Y-axis: 2–24000 mm/min
Z-axis: 2–24000 mm/min
Rapid traverse
X-axis: 20000 mm/min
Y-axis: 24000 mm/min
Z-axis: 24000 mm/min
Spindle
Head: Automatic universal milling head
Main spindle motor: Siemens 1PH7 167
Gearbox: ZF 2K300 / SEW FF37 / FA47 B / KA Z37
Repeatability: ±0.002 mm
Tool changer
Type: Automatic
Capacity: 150 tools
Max tool length: 400 mm
Max tool weight: 25 kg
Tool taper: SK50 DIN 69871
Station: Pickup-station
Table/plates
Clamping plate surface: 3600 x 3750 mm
Electronics and control
Control panel: Integrated CNC in work platform
Servo motors: Siemens 1FT6 series
Drives/regulators: Indramat ECOdrive 3
Measuring systems: Heidenhain LS 186C / LB 382C / ROD 480 / ROQ 425
Electronic pressure switch: ifm PN 5, PN 7
Power supply
Voltage: 400 V, 3-phase, 50 Hz
Power connection: approx. 80 kVA
Main fuse: 160 A (slow-blow)
Conductor cross-section: 70 mm²
Pneumatics and hydraulics
Pressure: 4–6 bar
Connection: G1/4
Air consumption: approx. 320–400 l
Valve terminal: Festo CP10+
Hydraulic system: Bosch with 1 x 50 l accumulator
Additional equipment
CNC rotary table unit: Demmeler DRTN
Table surface: 2000 x 1800 mm
Max rotation speed: 4 min^-1
Collision monitoring: Brankamp Typ CMS (1-channel)
Safety brake: Mayr Typ 891...
Cooling unit: Schimpke DK 38 V / BKW SK 250D
Coolant filter: Knoll KF110/1100
Oil filter: ARGO D 062-156
Chip conveyor: Richter SP 250/63 (x2)
Measurement system: m&h 20.10 Set Multi SK50 / m&h 35.10 TS plug
Lubrication: Automatic
Machine enclosure: 3-sided
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
