Soraluce - TA-20ES-MIL-SOR-2005-00001

Rs. 5,722,959
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

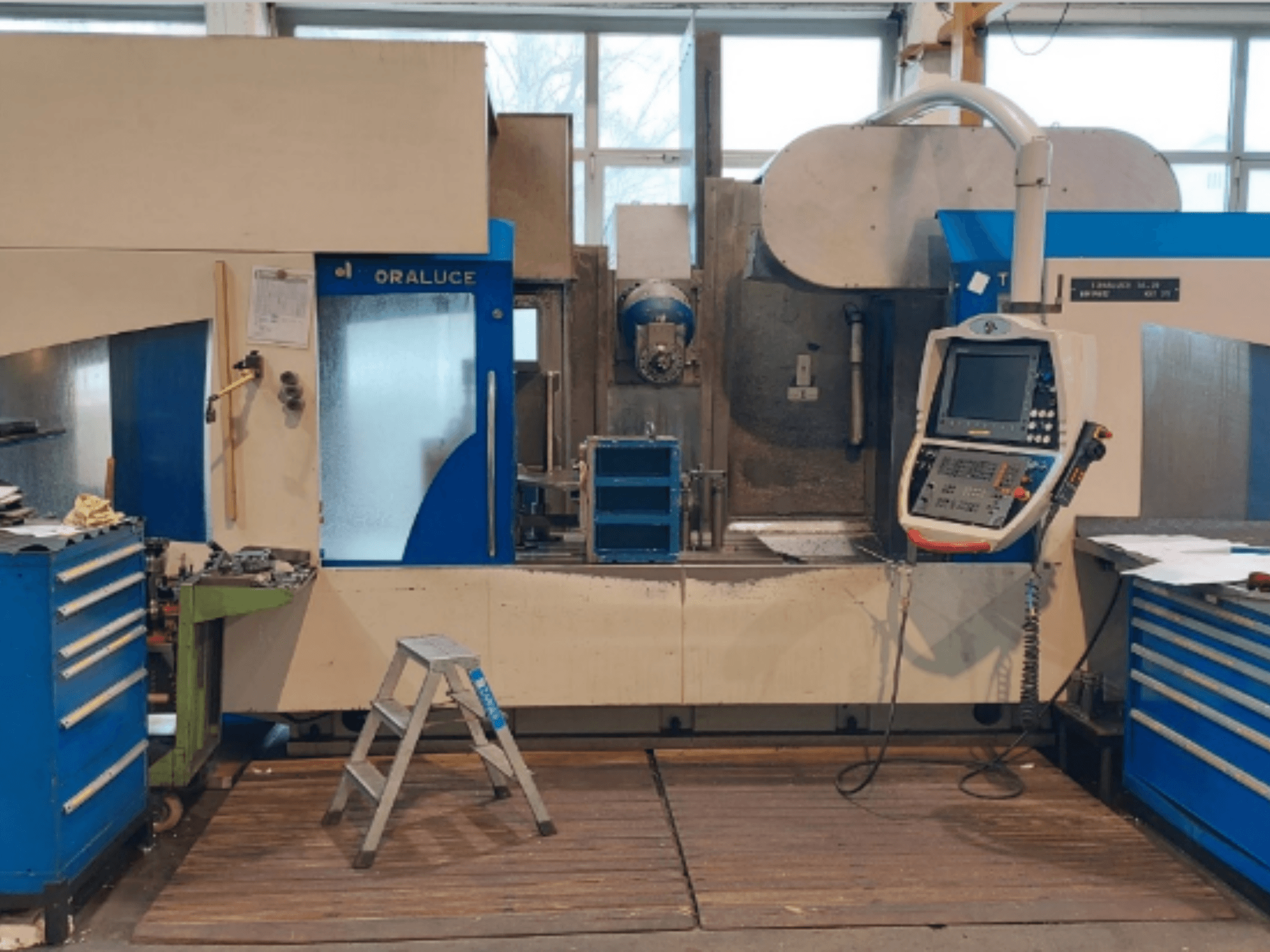

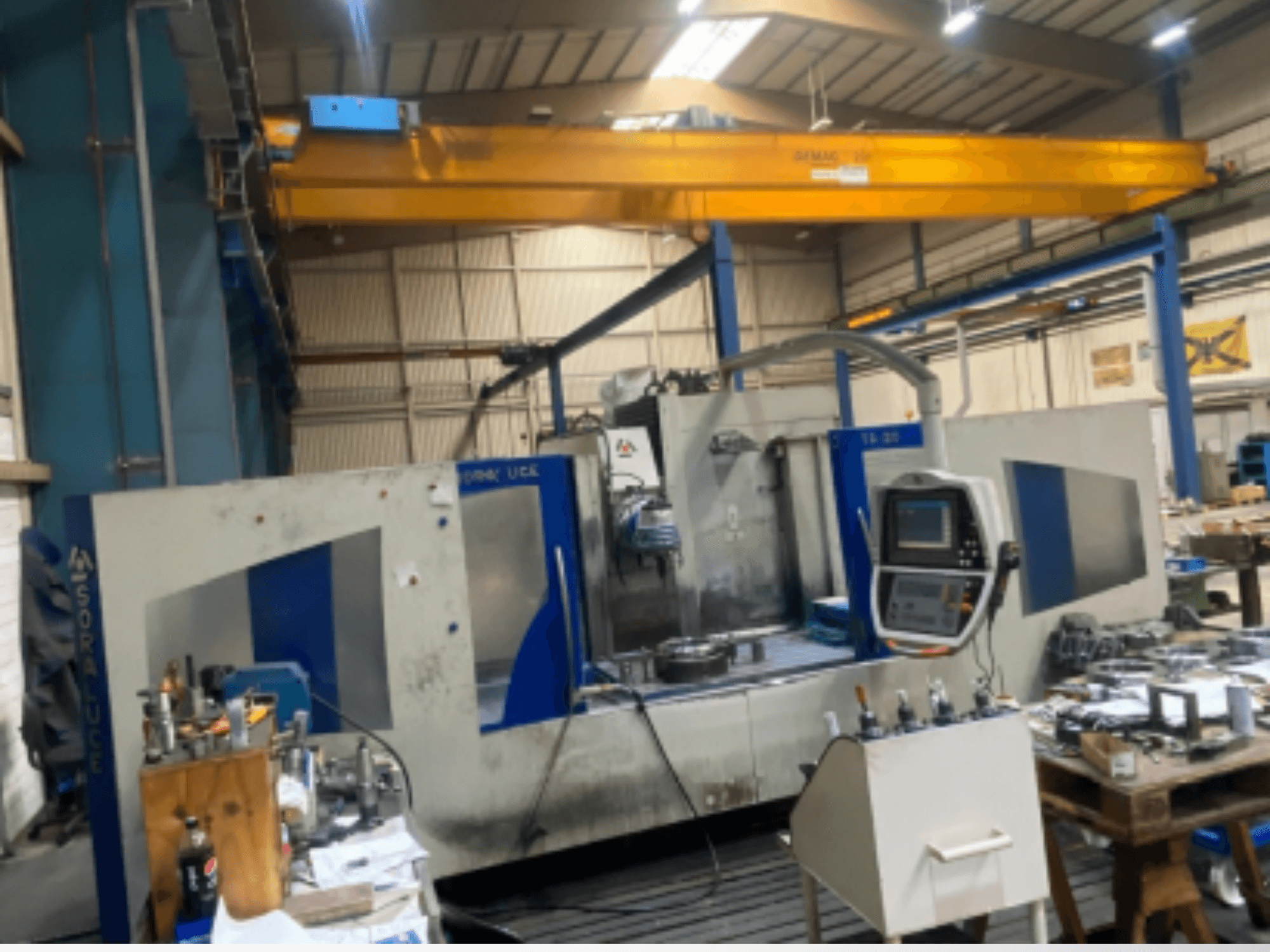

This 3-axis Soraluce TA-20 bed type milling machine was manufactured in 2005. It features a substantial table size of 2,000 x 800 mm with a maximum table load of 4,000 kg. The machine offers impressive X-axis travel of 2,000 mm and rapid traverse speeds of 25,000 mm/min. If you are looking to get high-quality milling capabilities, consider the Soraluce TA-20 machine we have for sale. Contact us for further details.

Overview

  • brand: Soraluce
  • year: 2005
  • MODEL: TA-20
  • application type: Milling
  • Location: Spain
  • machine type: Bed Type Milling Machine
  • control unit brand: HEIDENHAIN

Technical Information - Soraluce TA-20

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: TNC-530

Dimensions

  • Machine Weight: 11000 kg
  • Table Load: 4000 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 2000 mm
  • Y-axis Travel: 800 mm
  • Z-axis Travel: 800 mm

Technical Specification

  • Spindle Power: 22 kW
  • Spindle Speed: 3000 RPM
  • Taper Size: ISO 50

Additional Information

  • Table dimensions: 2,000 x 800 mm

  • Milling head: Universal manual head

  • Rapid traverse (X/Y/Z): 25,000 mm/min

  • Electronic handwheel: HEIDENHAIN HR 410

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
