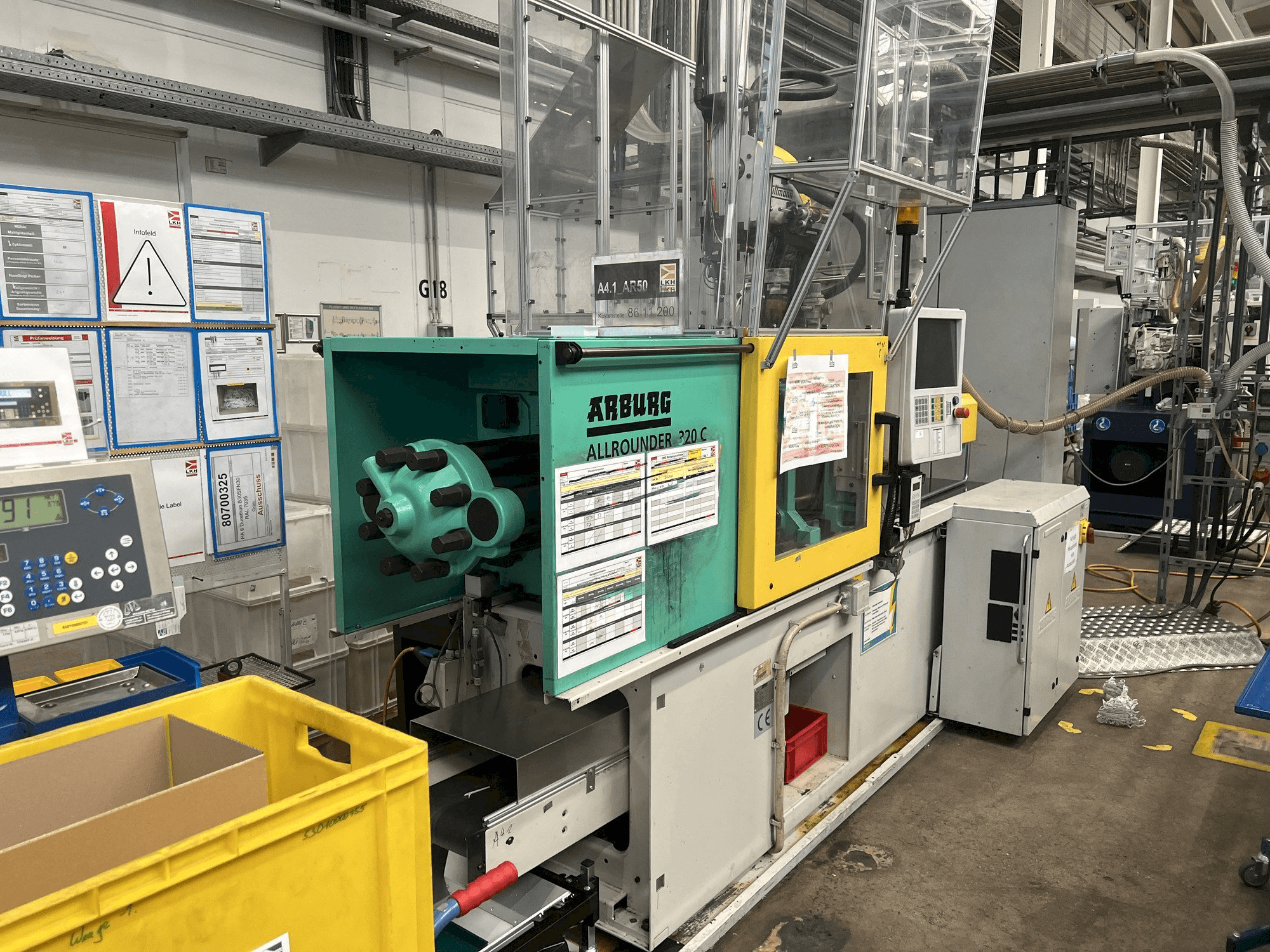

Left side view of Arburg Allrounder 320C 500 - 170 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Arburg Allrounder 320C 500 - 170

Photo Gallery

Arburg - Allrounder 320C 500 - 170DE-INJ-ARB-2006-00004

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Arburg Allrounder 320C 500 - 170 Injection moulding machine

Show in original language

This Arburg Allrounder 320C 500 - 170 Injection moulding machine was built in the year 2006 and has 81623 pump hours, of which 69763 are automatic hours, handling: picker. The machine has a clamping force of 500 kN and an injection pressure of 2000 bar.

Overview

brand: Arburg
year: 2006
MODEL: Allrounder 320C 500 - 170
production hours: 81623
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Arburg Allrounder 320C 500 - 170

Injection Unit

Screw diameter: 30 mm
Stroke volume: 85 CM³
Injection pressure: 2000 bar

Clamping unit

Clamping force: 500 kn
Opening stroke: 350 mm
Distance between bars: 550 mm
Mould height min: 200 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Min wkz installation height (mm) : 200
- - Clear tie bar spacing horizontal x vertical : 320x320
- - Centering ring Ø (ds/as) : 125/125
- - Core pulls : 1
- - Handling: sprue picker

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

Maschine 8611200 Datenblatt und Werkzeugaufspannmaße.pdf
