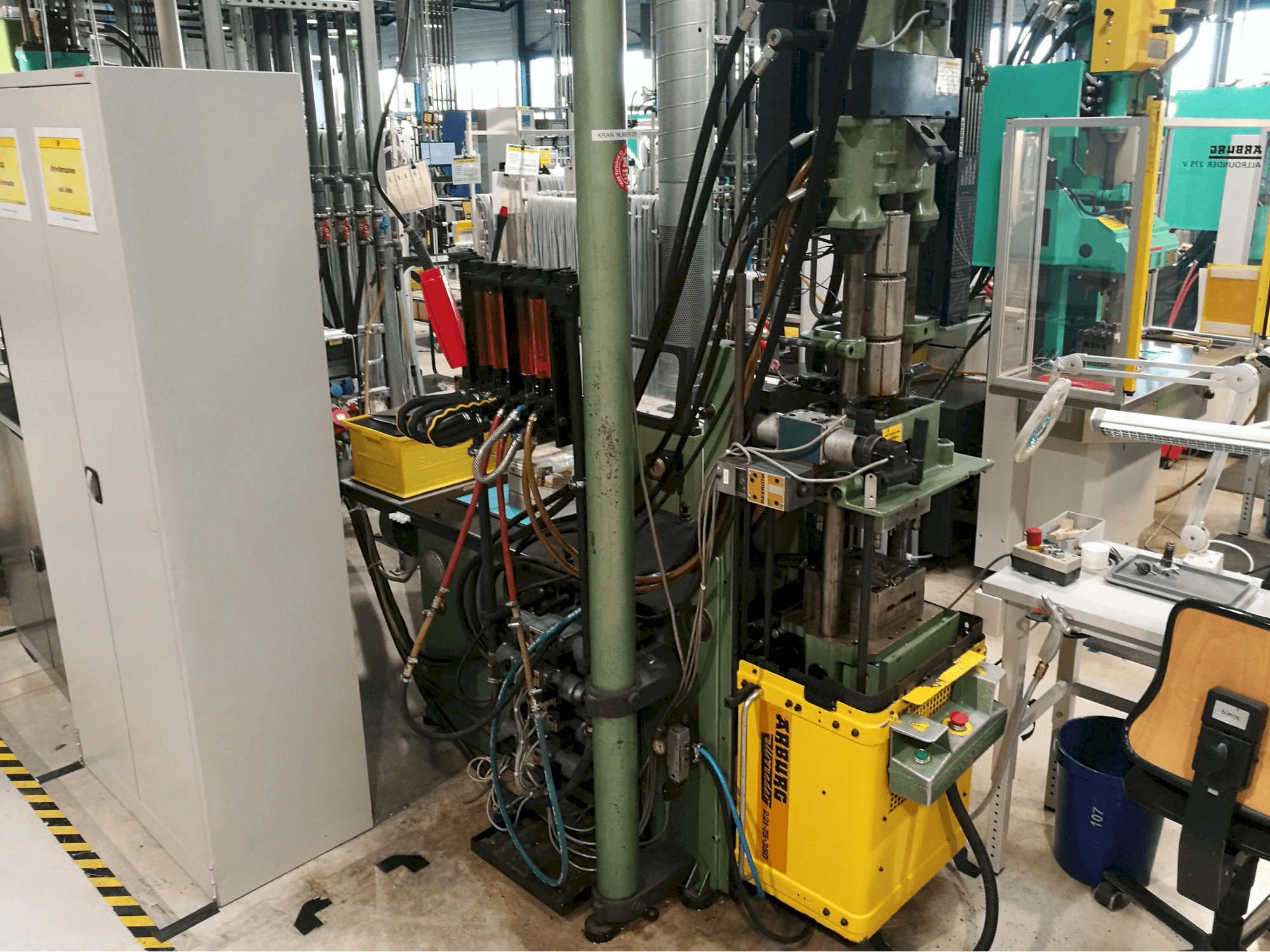

Detail of Arburg Allrounder 221-75-350 Machine

Arburg Allrounder 221-75-350

Arburg - Allrounder 221-75-350

1985

Sold

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Arburg Allrounder 221-75-350 from 1985 was made in Germany and counts with 38942 production hours. Equipped with an Arburg Polytronica Control unit, this machine has mainly worked for the medical technology industry in the past.

Overview

  • brand: Arburg
  • year: 1985
  • MODEL: Allrounder 221-75-350
  • production hours: 38942
  • application type: Injection Moulding
  • Location: Germany
  • machine type: Injection Moulding Machine
  • availability: Sold
  • control unit brand: Arburg
  • GINDUMAC ID: DE-INJ-ARB-1985-00001

Technical Information

General Data

  • Measurements width: 2700 mm
  • Measurements depth: 1200 mm
  • Measurements height: 2100 mm
  • Machine weight: 970 kg

Control Unit

  • Brand: Arburg
  • Model: Polytronica
  • CNC main language: German

Injection Unit

  • Screw diameter: 22 mm
  • Stroke volume: 38 cm³
  • Injection pressure: 1570 bar
  • Screw speed: 400 rpm
  • Heating capacity: 3.46 kW
  • Nozzle pressure: 50kN

Clamping unit

  • Clamping force: 350 kN
  • Opening stroke: 200 mm
  • Max open daylight: 475 mm
  • Distance between bars: 221 mm
  • Mould height min: 150 mm
  • Mould height max: 300 mm
  • Size of mold platens: 346 mm
  • Ejector stroke: 100 mm
  • Ejector force for / back: 17 kN

Media

  • Main electronic connection: 380 V
  • Power consumption: 11 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
