➤ Used ARBURG 221-75-350 | Injection Moulding Machine

Show in original language

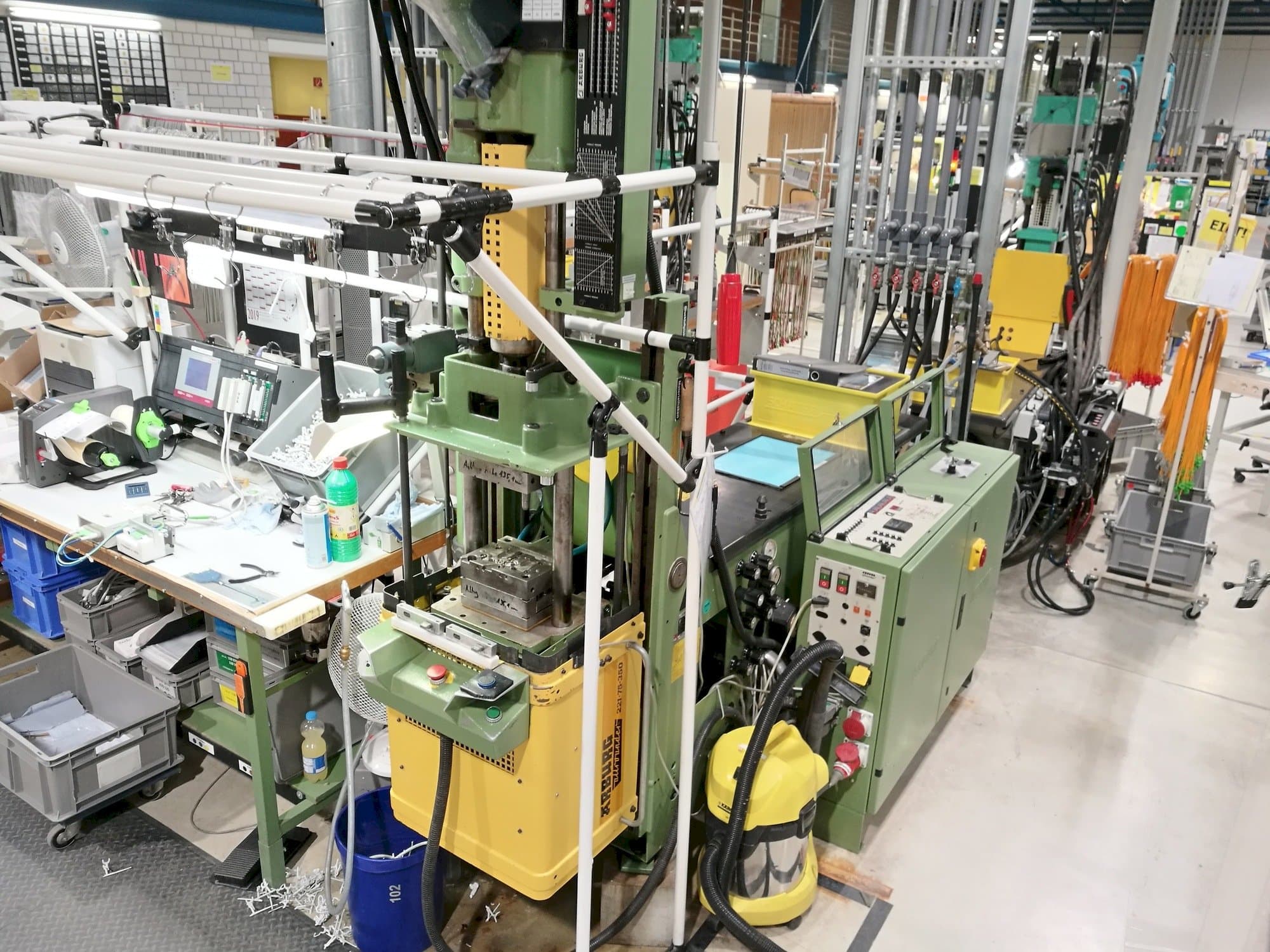

This Arburg 221-75-350 Injection Moulding Machine was built in Germany in 1990 and counts with 40000 hours. Equipped with a Arburg Polytronica Control unit, this machine can work with a clamping force of 350 kN and an injection pressure of 1090 bar.

Overview

brand: Arburg
year: 1990
MODEL: 221-75-350
production hours: 40000
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ARBURG

Technical Information - Arburg 221-75-350

General Data

Measurements width: 2980 mm
Measurements depth: 1040 mm
Measurements height: 1500 mm
Machine weight: 970 kg

Control Unit

Model: Polytronica
Brand: ARBURG

Injection Unit

Screw diameter: 30 mm
Shot weight: 59
Stroke volume: 70 CM³
Injection pressure: 1090 bar

Clamping unit

Clamping force: 350 kN
Opening stroke: 200 mm
Distance between bars: 221 mm
Mould height max: 75 mm
Size of mold platens: 432x250 mm
Ejector stroke: 60 mm
Ejector force for / back: 27 kN

Media

Main electronic connection: 300 V
Power consumption: 11 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
