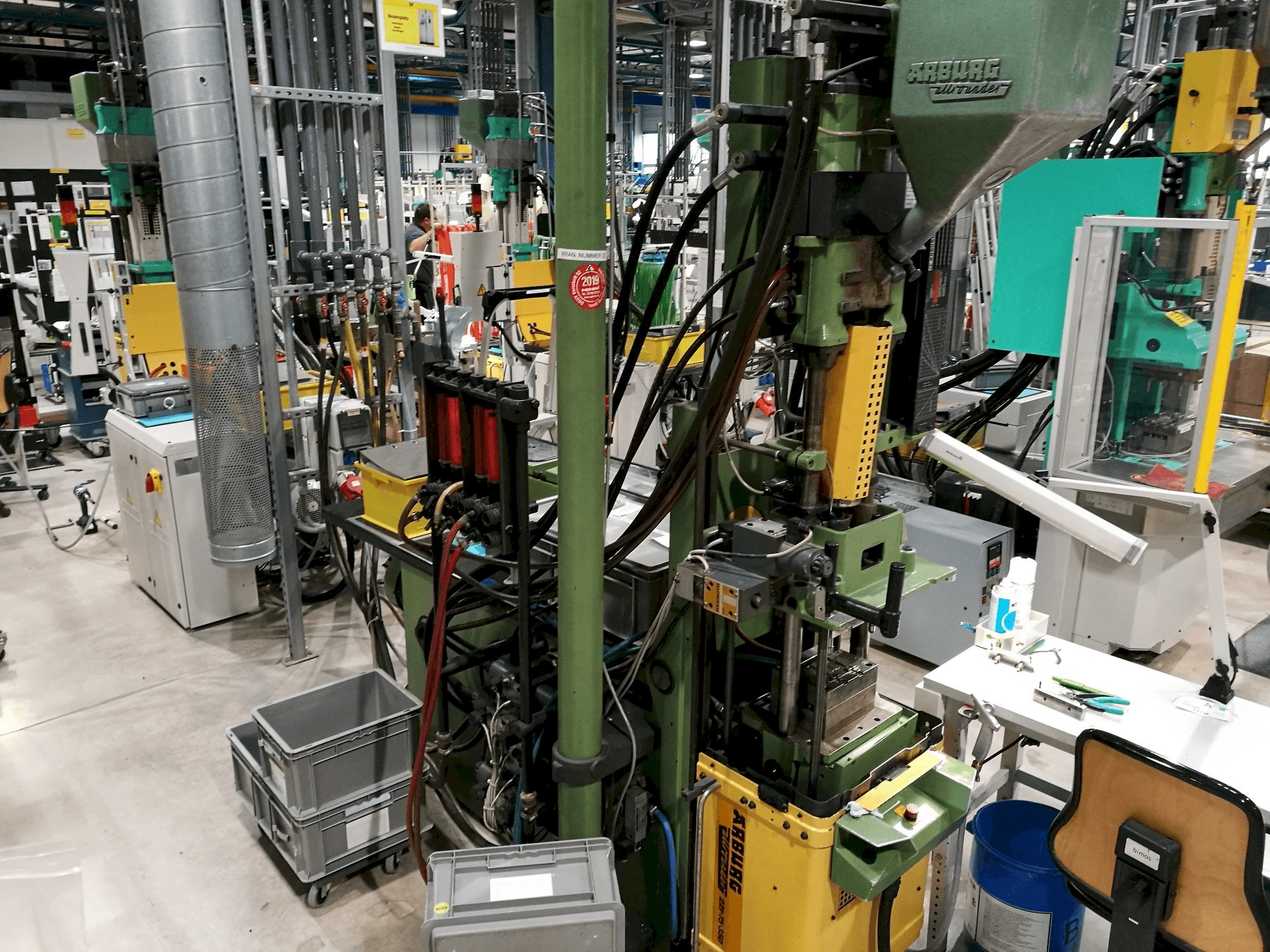

Arburg 221-75-350 Injection Moulding Machine

Show in original language

This Arburg 221-75-350 Injection Moulding Machine was manufactured in Germany in 1990 and has a production record of 21267 hours. Equipped with a Arburg Polytronica Control unit, this machine can work with a clamping force of 350 kN and an injection pressure of 1090 bar.

Overview

brand: Arburg
year: 1990
MODEL: 221-75-350
production hours: 21267
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ARBURG

Technical Information - Arburg 221-75-350

General Data

Measurements width: 2980 mm
Measurements depth: 1040 mm
Measurements height: 1500 mm
Machine weight: 970 kg

Control Unit

Model: Polytronica
Brand: ARBURG

Injection Unit

Screw diameter: 30 mm
Stroke volume: 70 CM³
Injection pressure: 1090 bar
Adjustable heating zones: 5

Clamping unit

Clamping force: 350 kN
Opening stroke: 200 mm
Distance between bars: 221 mm
Mould height max: 75 mm
Size of mold platens: 432x250 mm
Ejector stroke: 60 mm
Ejector force for / back: 27 kN

Media

Main electronic connection: 330 V
Power consumption: 11 kVa

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
